Product Name

Electrolyte Injection Machine

Power

1200W

Voltage

AC 208 - 240 V 50/60 Hz Single phase

Pouch Cell Sealing Pressure

Maximum sealing pressure: 70 kg*f

Sealing width

6 mm (Customizable)

Sealing length

≤ 180 mm

Pouch cells size

Max. L 150 mm * W 100 mm * H 12 mm

Electrolyte Dispenser

1.Electrolyte plunger metering pump is included for precise electrolyte filling; Injection Accuracy: 3 %

2.During the electrolyte injection and vacuum standing under the vacuum, The liquid electrolytes would be vaporized. Please consider refilling the electrolyte if necessary

3.Electrolyte filling volume and injection rate adjustable via touch screen PLC control

Control Panel

Color touch screen panel to set programma for vacuum level,  inert gas filling, electrolyte injection amount,  sealing temperature, and time.

Vacuum Degassing

Vacuum range:  -95 ~ 0 kPa adjustable

Dwell Time: 0~99 seconds adjustable

Inert gas filling

Max. pressure:  110 Kpa max. adjustable

Dwell Time: 0~99 seconds adjustable

Sealing Temperature and time

1.Two digital temperature controllers on the front panel provide independent control for the left and right heating dies.

2.Temperature range: 50 ~ 250 ℃ adjustable (accuracy +/- 2 ℃)

3.Recommended sealing temperature: 180~190 ℃

4. Sealing time:  0 ~ 99 seconds adjustable (5 ~ 6 seconds is recommended)

Electrolyte injection

0.3 ml - 100 ml  programmable under normal atmosphere

Injecting under vacuum or inert gas selectable

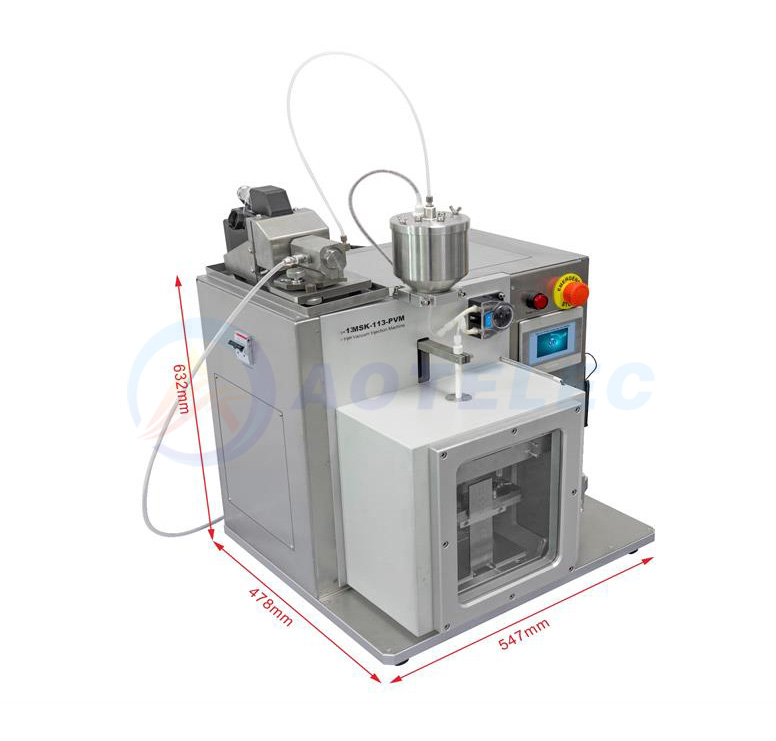

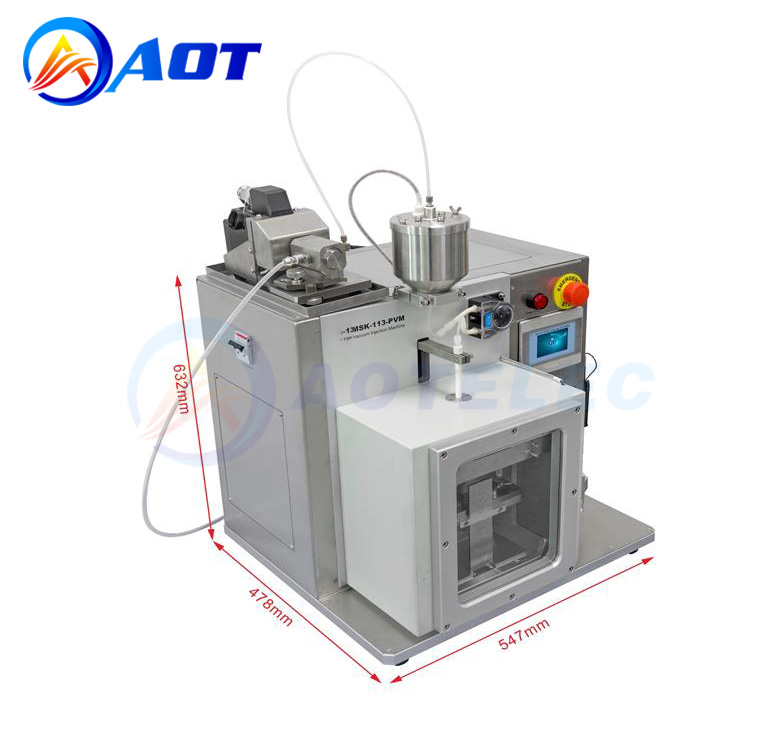

Product Size

547mm*478mm*632mm
