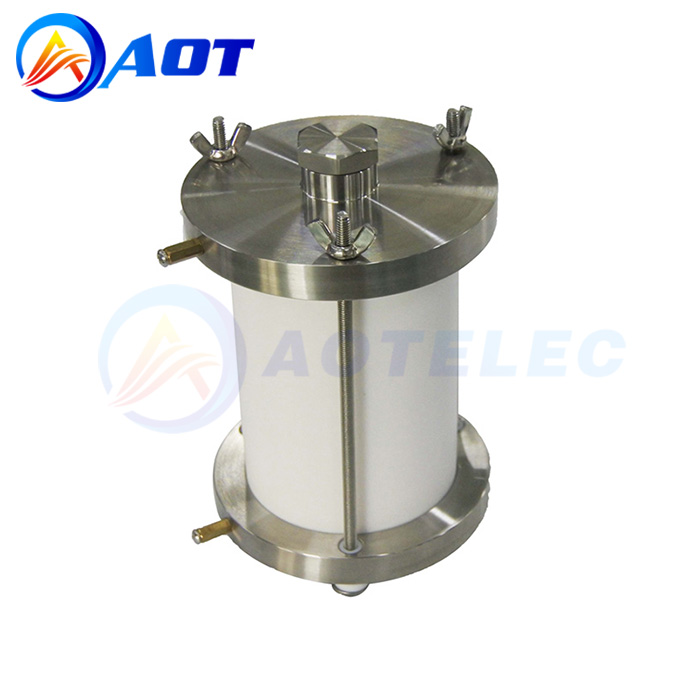

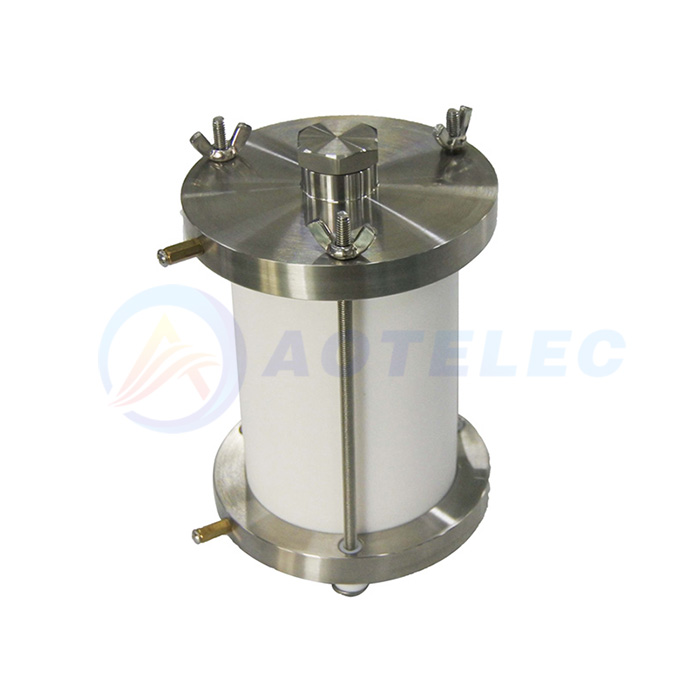

4680 Cylindrical Battery Split Type Cell

Product Name; Battery Split Type Cell
Model:AOT-SC4680
Material:Stainless steel 304
Origin:China
Product description: AOT-SC4680 Simple and quick disassembly and assembly for testing electrode cycling and structural changes. Mainly used in the research of 4680 cylindrical battery
INQUIRY

AOT-SC4680 Simple and quick disassembly and assembly for testing electrode cycling and structural changes.

Mainly used in the research of 4680 cylindrical battery

Product Name	4680 Battery Split Type Cell
Material	Full Stainless steel 304 end caps
Temperature	Max200C

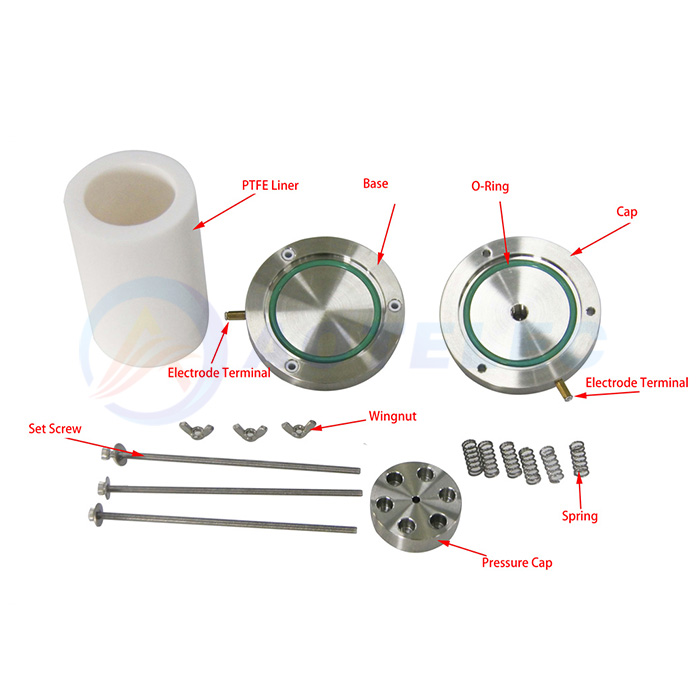

Structure	Electrolyte corrosion-proof PTFE liner Sealed by electrolyte corrosion-proof fluororubber O-rings

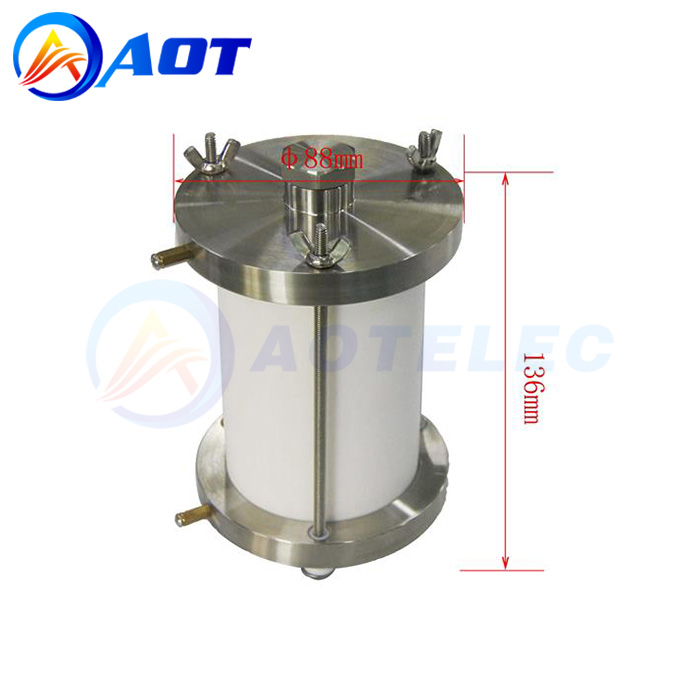

Size	PTFE Body (liner): ID46mm Height of PTFE Body:H 80mm The cap: OD88mm Height the kit: H136mm
