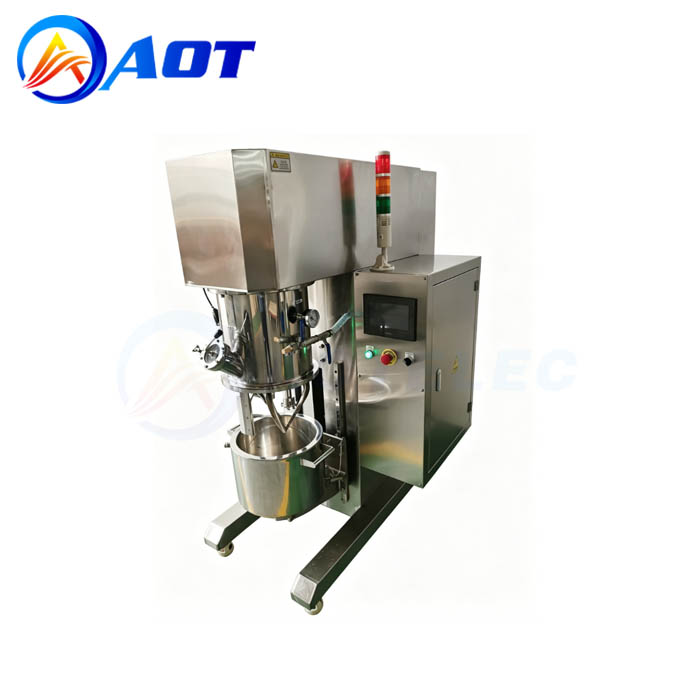

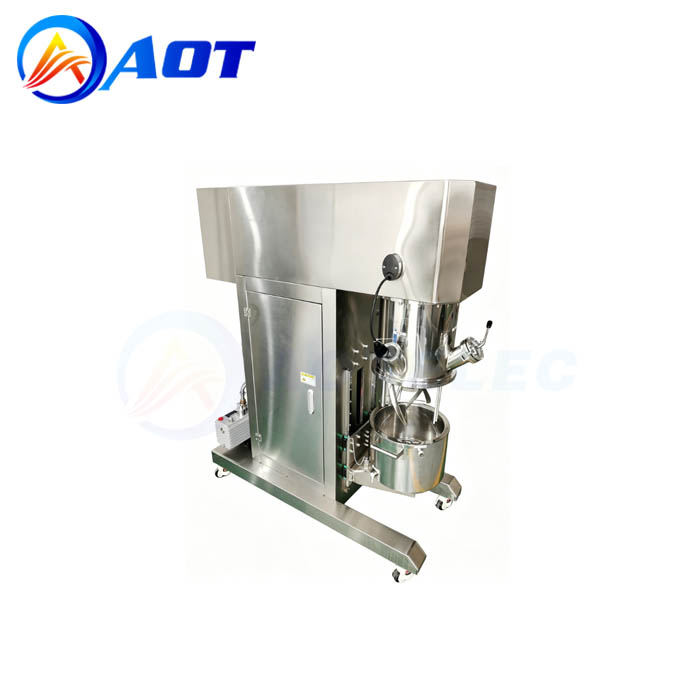

The dual-planetary dispersing and mixing equipment combines low-speed planetary stirring with high-speed dispersion and shearing functions, specifically designed for handling medium to high-viscosity pastes, slurries, and solid-liquid mixtures. It is suitable for materials that are difficult to homogenize using conventional mixing equipment, achieving kneading, dispersion, and homogenization through a combined orbital and rotational motion.
Item | Detailed description |
Name and type | Double planetary mixing |
Type: AOT-PVM-10L | |
Basic structure | Electric boiler |
Cantilever structure | |
Double twist mixing paddle | |
Barrel | Specification: Inner diameter 300*200mm; |
Design volume: 14L, effective volume: 10L; | |
Material: Inner layer 304 stainless steel, thickness 5mm; Outer layer 304 stainless steel, thickness 4mm; | |
After the inner wall is rounded, it is processed by turning, and the inner wall and outer wall mirror are polished to ensure good roundness and finish; | |
The upper flange plane and the upper barrel body are sealed by the sealing ring; | |
Equipped with water inlet and outlet DN25 water inlet and outlet, using quick-mount plug; | |
Quantity: 1 | |
Kettle cover | Material: 304; |
One Φ70 sight mirror (with silicone sheet small scraper); φ57 lighting spotlight sight mirror; A mechanical vacuum meter; And other necessary fittings (vacuum/blowdown/spare) | |
Stirring system parameter | Motor power: 2.2Kw/4P; |
Quantity: one; | |
2.2KW frequency conversion governor matching the motor; | |
Supporting gear reducer, reduction ratio of about I=29, coefficient of use fa=1.55; | |
Revolution: 0-50rpm; Rotation: 0-100rpm; | |
Gap reference value (optional) | Mixing paddle and mixing paddle tolerance: 5± 2.5mm; |
Mixing paddle and bottom tolerance: 5± 2.5mm; | |
Mixing paddle and barrel wall tolerance: 5± 2.5mm; | |
Mixing paddle | Material: 304 material; |
Structure: twist type mixing blade; | |
Quantity: two (groups); | |
Discharge/blowdown | Bottom tank bottom valve; |
DN32; | |
Vacuum part | Rotary vane vacuum pump; |
Power: 0.55kw; | |
Matching vacuum buffer tank; | |
Screw lift | Electric lift: φ36*s=500; Equipped with positioning device; Safe and reliable positioning; |
Equipped with a gear motor, supporting a 0.55Kw/4P motor; No oil leakage, low noise; | |
Lifting height: ≤300; | |
Positioning system | With positioning adjustment device and locking device, it can accurately position the mixing bucket and the upper bucket body, and prevent rotation. |
The positioning stop of the lower flange of the upper barrel body is precisely matched with the mixing bucket to ensure the reasonable position of the mixing bucket and accurate positioning | |
Distribution cabinet | The display and operation of stirring switch, dispersing switch, vacuum device, variable frequency speed regulation, time timing control, spotlight, lifting, running emergency stop and other functions are carried out on the distribution cabinet. |
Safe operation | Relying on the frequency converter and limit stroke switch, through the specially designed control route, to ensure that the pot rises/falls to the specified position automatically stop; |
When the pot is rising, the stirring part of the equipment cannot start to run; Similarly, when the machine is running the mixture, the pot should not be raised and the mixing bucket should not be opened; | |
When mixing overload, automatic protection or stop; | |
Emergency stop button, can stop immediately; | |
Main engine electronic control | Working voltage/frequency: 380V/50Hz/3Phase; |
Total power of the main engine: about 3kw; | |
Overall dimensions and weight (reference) | Length width height: 1400*810*1700mm; |
Weight: about 800KG; | |
Equipment appearance requirement | The polishing degree of the part in contact with the material in the pot body is greater than 300 mesh |
No exposed motor and other parts that are not easy to clean | |
The outer panel of the chassis is made of stainless steel | |
The welds are required to be smooth, and all welds on the inner and outer surfaces are polished and smoothly transited | |
The surface is smooth, and the edges of all disassembly, installation, and operation parts should be smooth and not hurt hands |
