Voltage

100 - 240VAC ( 50/60Hz),

Power

100W

Chamber Materials

T1.5mm SS304

Exterior Materials

 3 mm thickness cold rolled steel

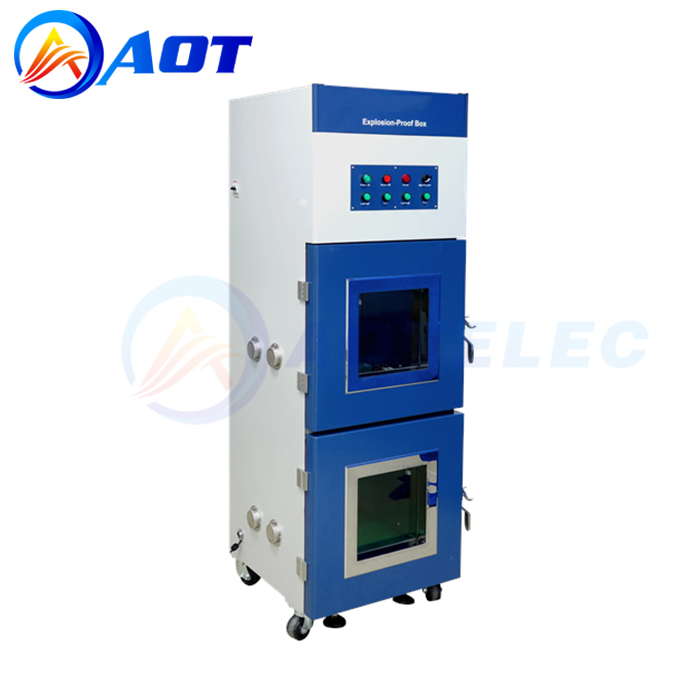

Structure

Two anti-explosion chambers,

Chamber Size

500mm x 500mm x 500mm  （2）

Testing Cables

Two 3 meters long cable with clamp are included, Max. current rating is 30A

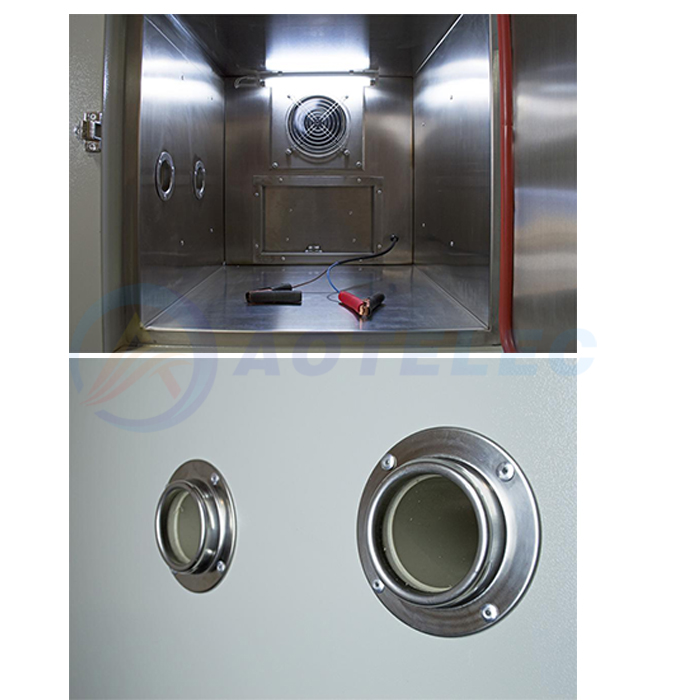

Ports

Each chamber has two 2" diameter holes reserved

Safety door

The pressure relief door is built on the back of each chamber. In the event of a battery explosion, the door will open and release pressure.

Venting Fan

Venting port with high-quality exhaust fan is installed in the back chamber which shall be connected to your venting system. (ducting and exhaust system are not included )

Warning:  Must keep venting fan and exhaust system running during battery testing to avoid pressure build-up in the case of a battery explosion.

Venting fan: 24 VDC, 3425 RPM, 235 CFM, 54.3 dBA

Centrifugal in-line exhaust fan with aluminum flex duct connection is recommended but not included.

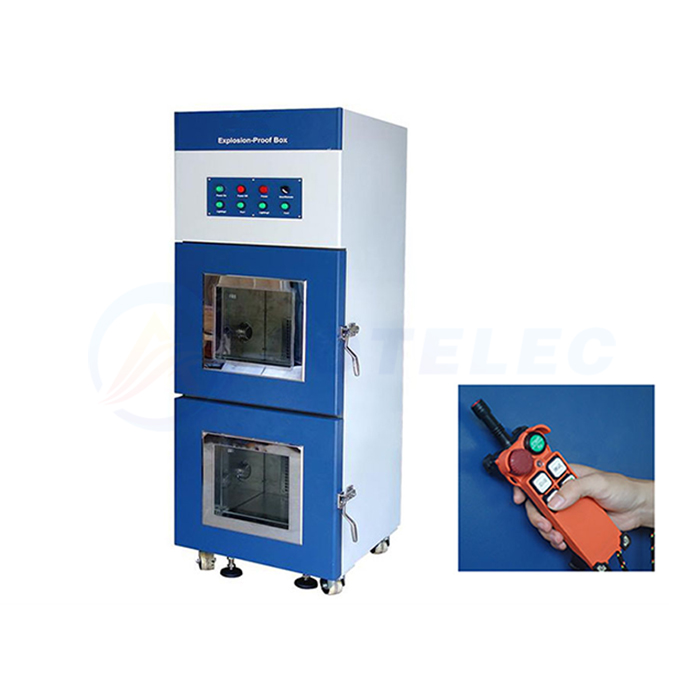

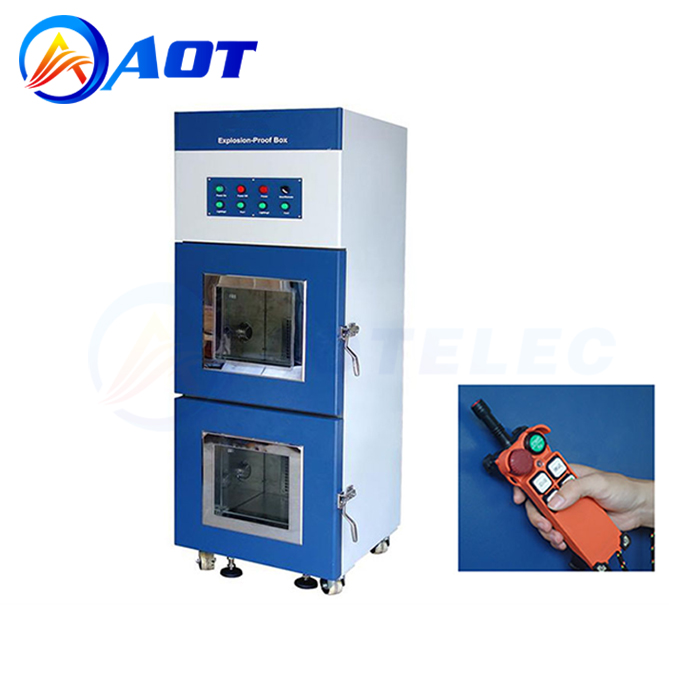

Remote Control

The wireless handheld remote control is recommended to operate the machine within a distance of 10 meters to ensure safe operation

Lighting

Anti-explosion LED light (30W) is installed inside of each chamber.

The angle of illumination is adjustable up to 90°

Electrode Holder & Cables

Two sets of battery electrode clamps with 10 AWG gauge cables (30A Max.) are included for easy & quick connections to batteries

Mobility

Four mobile wheels are installed at the bottom for easy transportation

Weight

212kg

Dimensions

L700mm x W630mm x H1800mm
