1500C Dual Zone Rotary Tube Furnace

Product Name : Dual Zone Rotary Tube Furnace
Power supply:208 - 240V single phase
Power ::Max 6 KW
Origin:China
Product description: OTF-1500X-II is a high-temperature double zone separable rotary tube furnace.Inorganic compounds with better homogeneity were synthesized at an ultra-high temperature of 1500 º C.The furnace is upgrad
INQUIRY

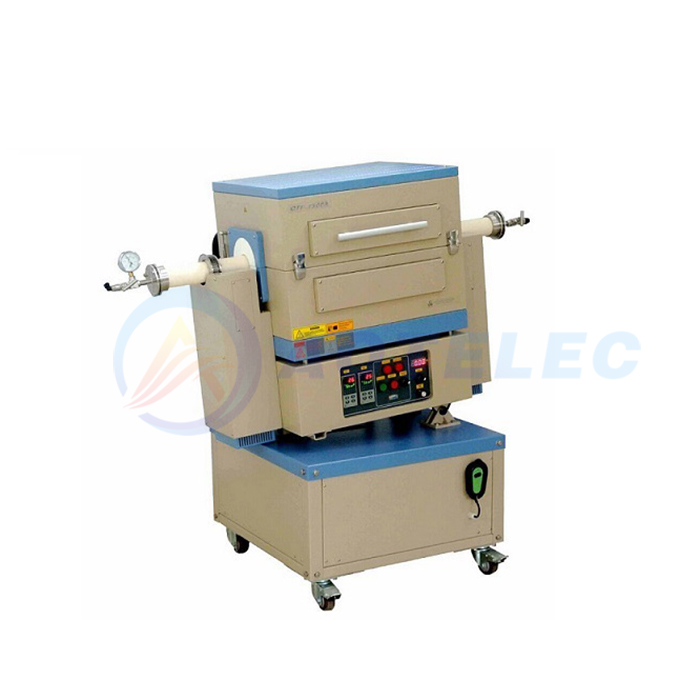

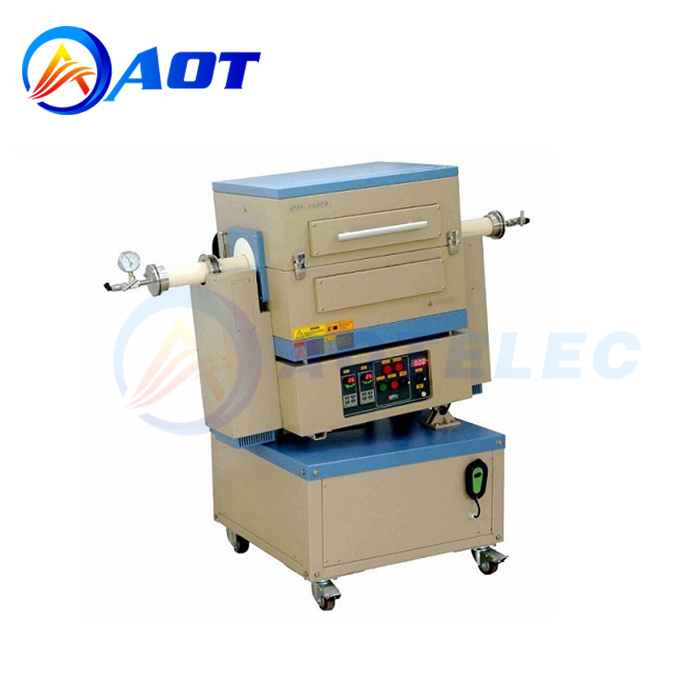

OTF-1500X-II is a high-temperature double zone separable rotary tube Furnace.Inorganic compounds with better homogeneity were synthesized at an ultra-high temperature of 1500 º C.The furnace is upgraded to a maximum of 1600 º C using SiC heating elements.

Product Name	Dual Zone Rotary Tube Furnace
Voltage	208 - 240V single phase
Power	Max 6 KW
Furnace Tilt Angle	-5 - 35°
Tube Rotating Speed	0 - 7 RPM variable
Temperature Uniformity	+/- 1°C
Two heating zone	195 mm for each zone, total 390 mm length
Constant temperature zone	250 mm within +/-5oC
Silicon carbide rod	16PCS
Silicon carbide rod Size	14mm Dia. x 150mm heating x 420mm length)
Continuous Heating Working Temperature	1400°C Max
1 hour of Heating Working Temperature	1500°C Max
Temperature Controller	Two 30 segments programmable PID digital temperature controller
Thermocouple	Two built-in S type thermocouple

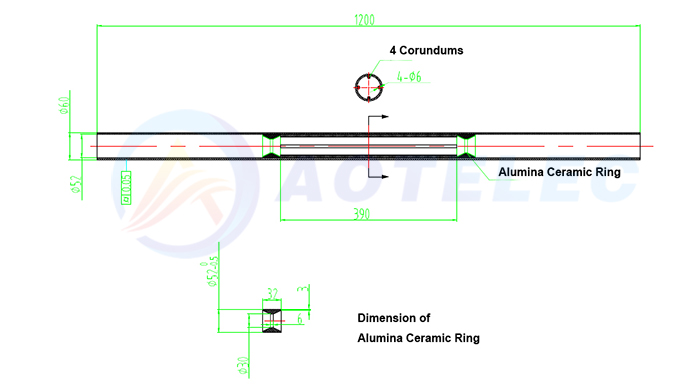

Processing Tube & Sealing Flange	One Alumina processing tube with central block zone: 60mm OD x 54mm ID x 1200mm L with a max. the working temperature of 1500ºC is included.

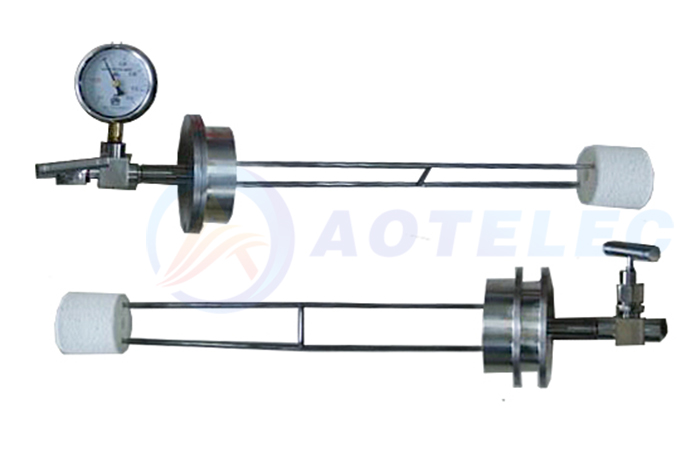

SealingFlange	One pair of 60mm SS sealing flange with needle valves and rotatable gas connector is included
Inlet Fitting	Elbow push-in connector for 6mm O.D tube
Outlet Fitting	Elbow push-in connector for 12mm O.D tube
Product Weight	198KG

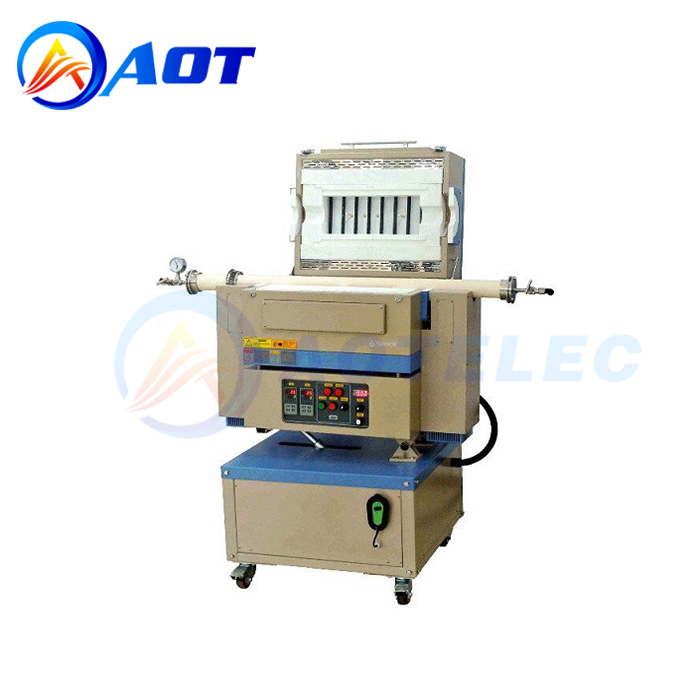

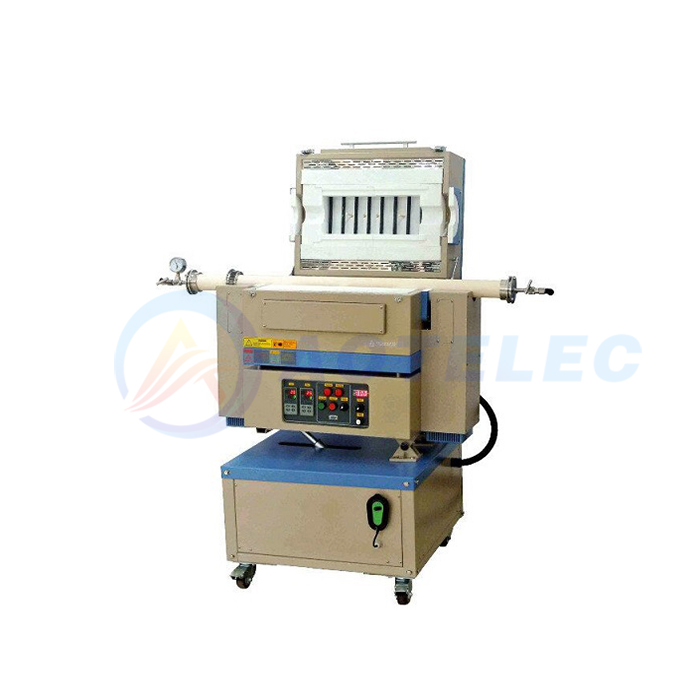

Furnace Feature	1.Two-zone heating for longer constant temperature zone 2.Double shell casing with three cooling fans. 3.1500ºC grade or 1650 grade SiC heating element. High purity alumina fibrous insulation 4.The split cover enables faster cooling and easy operation.
