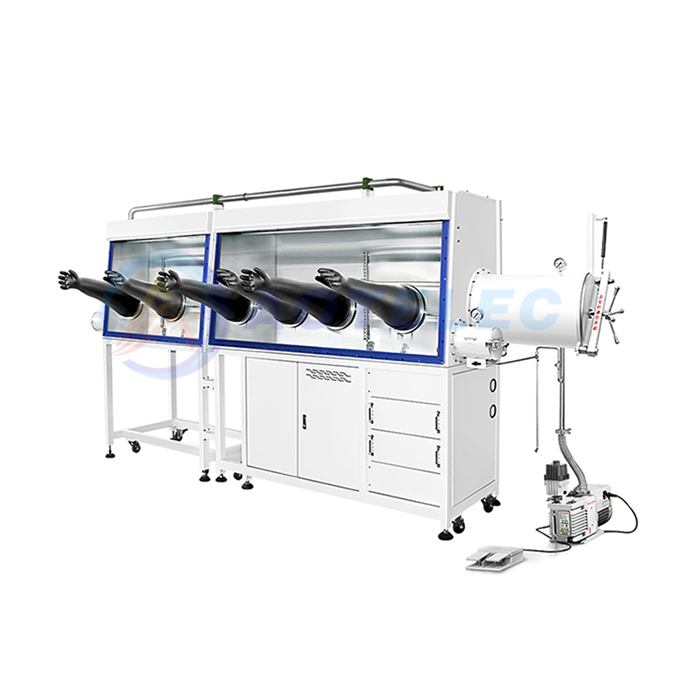

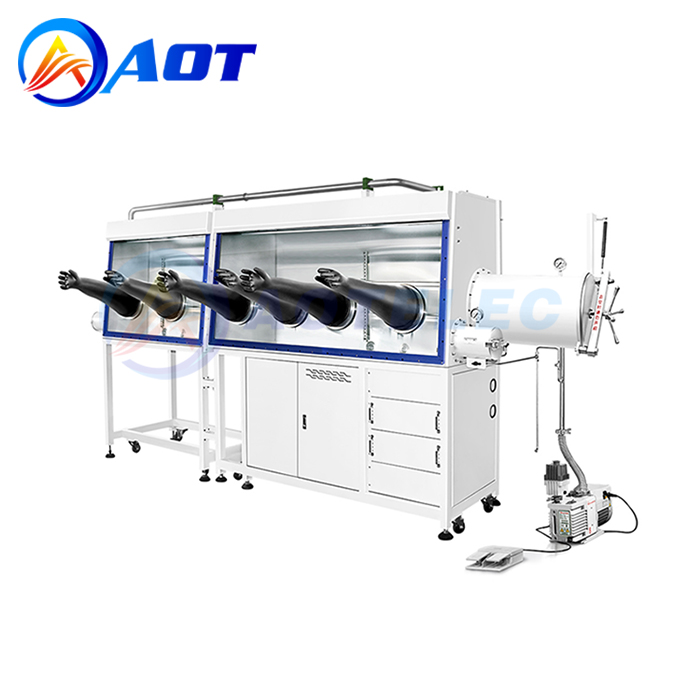

Advanced Glove Box with Three Work Stations for Lab Battery Research

  • Product Name: Glove Box with Three Work Stations
  • Model Number:AOT-VGB-6
  • Brand Name: AOT
  • Product Orgin:China
  • Product description: AOT-VGB-6 Optional IoT intelligent system to realize the mobile control and centralized management of the glove box, safe and secure. It has real-time synchronization of equipment status, equipment da
  • INQUIRY

Features:


 1. Optional IoT intelligent system to realize the mobile control and centralized management of the glove box, safe and secure. It has real-time synchronization of equipment status, equipment data report records, historical data can be inquired, alarm messages are actively notified, equipment remote debugging, fault online diagnosis and online repair, online customer service and other intelligent functions.

2. Control system: Siemens PLC

3. Purifier: Double column

4. Water content: <1ppm

5. Oxygen content: <1ppm


Product Specifications



Glove Box

Box

Material: 304 stainless steel, thickness 3mm

Outer surface: 304 stainless steel

Inner surface: oil film drawing surface

Size: optional length 1500, 1800, 2440, 3660, 4880, 7320mm

       Optional depth of 750, 1000, 1200mm

       Height 900mm

Front window

Tilting window: transparent toughened safety glass, thickness 8mm

Glove mouth

Material is POM or aluminum alloy: O-ring seal

gloves

Butyl rubber: thickness 0.4mm, diameter 7'' or 8''

filter

Specification: 0.3μm, one gas inlet and one gas outlet

Shelf

Material: stainless steel, built-in 2 layers, height adjustable

Cabinet lighting

Location: LED light, installed in the lampshade

interface

Specification: DN40KF, several spare interfaces, 1 power interface (220V)

Purification unit

Purification column

Function: gas sealing, water removal and oxygen removal

Container material: 304 stainless steel

Purification materials: copper catalyst 5kg, molecular sieve 5kg

Purification capacity: 60L deoxygenation, 2kg dewatering

Water and oxygen index: <1ppm

Circulatory system

Working gas: nitrogen, argon, helium

Circulation capacity: integrated fan flow rate 90m3/h (larger fan flow rate 145m3/h, 180m3/h can be provided)

regeneration

Operation: PLC automatically controls the regeneration process

Regeneration gas: mixed gas of working gas and hydrogen (hydrogen 5%-10%)

Vacuum pump

Specification: 8m³/h, 12m³/h

Rotary vane pump: with oil mist filter, air vibration control

valve

Main valve: DN40KF, electric angle valve

Control valve: solenoid integrated valve

Transition warehouse

Large transition warehouse

Warehouse body

Size: diameter 360mm, length 600mm (optional diameter 400mm)

Material: 304 stainless steel

Surface: the inner surface is oil film drawing surface, the outer surface is spray paint or mirror surface

annex

Tray: sliding tray

Warehouse door: double doors, anodized aluminum material, vertical operation thickness of 10mm, with lifting structure

Pressure gauge: analog display

control

Operation: automatic control

Small transition warehouse

Warehouse body

Size: diameter 150mm, length 300mm (optional diameter 100mm)

Material: 304 stainless steel

Surface: the inner surface is oil film drawing surface, the outer surface is spray paint or mirror surface

annex

Warehouse door: double door

Pressure gauge: analog display

control

Operation: manual operation

Control System

description

Display: Siemens PLC touch screen

Function: Including self-diagnosis, power-off and self-starting features, with pressure control and adaptive functions, automatic control, cycle control, password protection

Pressure control: control the pressure of the box and transition chamber, the working pressure of the box can be set freely within +/- 10mbar, and the system will automatically protect if it exceeds +/- 12mbar

Foot switch: the air pressure in the box can be adjusted by the foot switch

Data Memo: Automatically record system data

Accessories

Vacuum pump

Specifications: 8m³/h, 12m³/h, 16m³/h

Oxygen analyzer

Measuring range: 01000ppm

Dew point analyzer

Measuring range: 0500ppm
