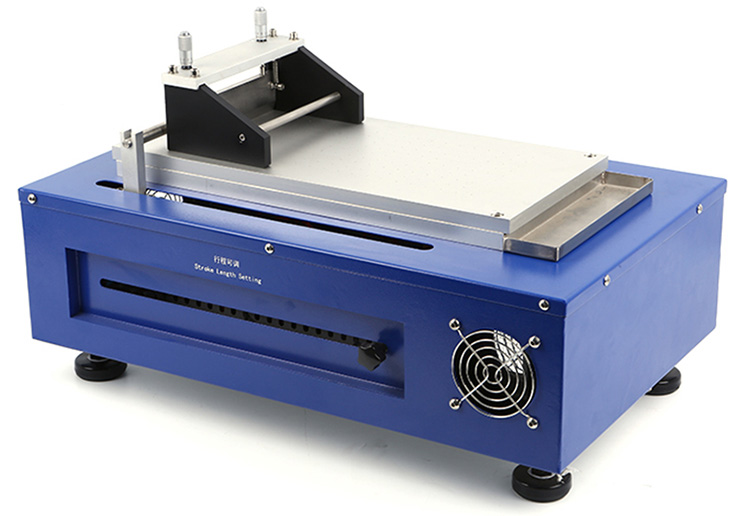

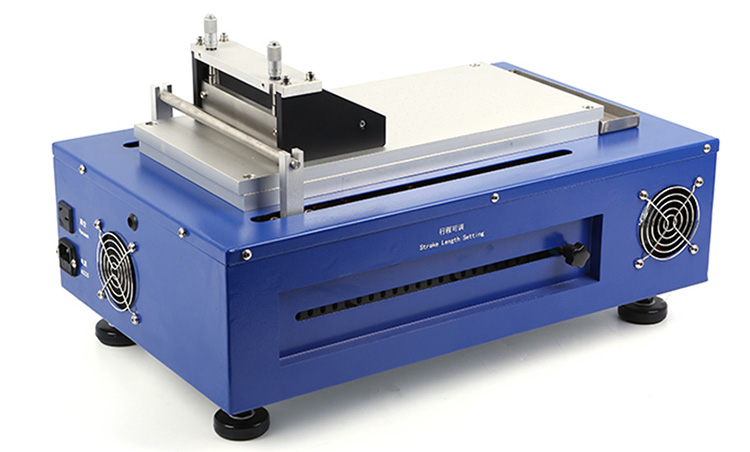

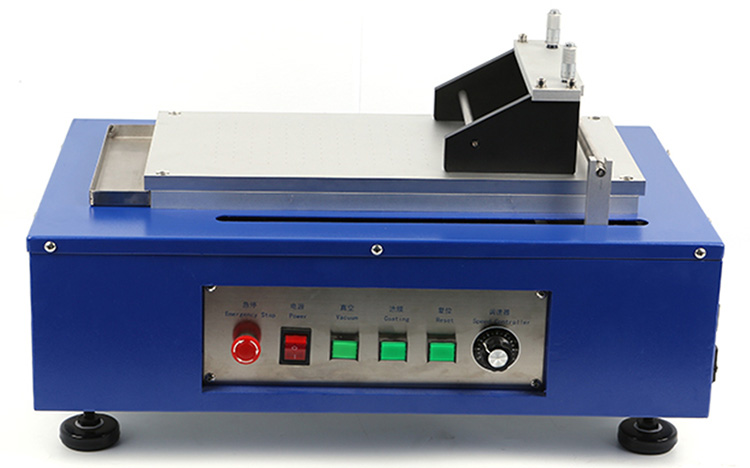

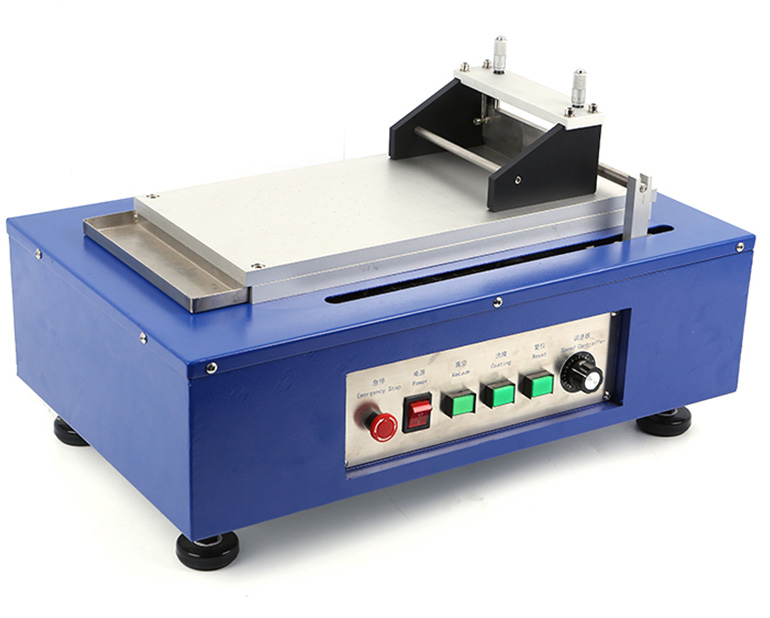

Lab Film Applicator Battery Coater Machine for Electrode Coating

Model: AOT-FCM-100-B
Coating Speed: 0-100mm/s
Film Width: 100mm
Coating thickness of applicator: 0.01~3.5mm
Product description: Compact Lab Film Applicator Battery Coater Machine for Battery Electrode Sheets Coating
INQUIRY

Vacuum Coating Machine for battery cell lab equipment

This equipment is widely used for research of all kinds of film coating, like ceramic films, crystal films, battery material films, and special nano-films..

Features :
1. Coating speed is at the range of 0~100mm, adjustable.
2. Vacuum aluminum plate, used to place and take off the substrate in quick.
3. Stroke can be regulated by travel switch at the range of 0~300mm.

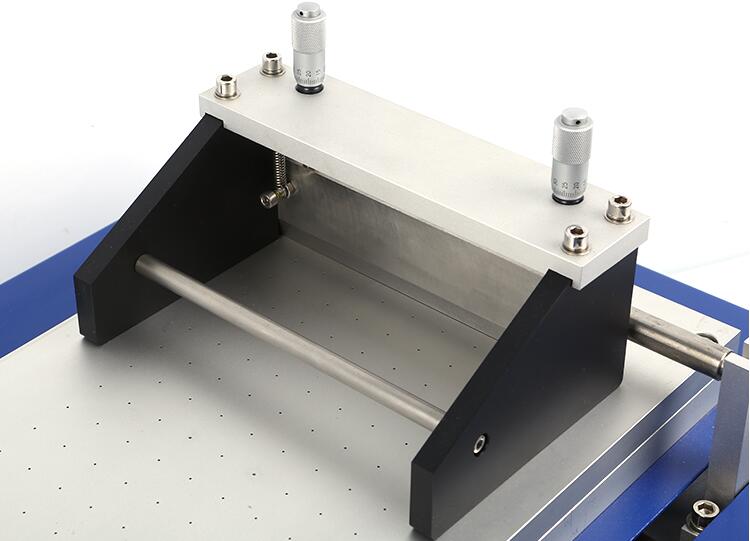

4. Accuracy of adjustable coating machine is 0.01mm.
5. Small dimension saves space.

Item Name	Battery Cell Vacuum Film Coating Machine AOT-FCM-100-B
Voltage	AC 110/220V, 50/60HZ
Power	200w
Coating Speed	0~100mm/s
Vacuum Plate	The machine is equipped with vacuum aluminum plate
Max Stroke	300mm(customized size is available)
Film Width	100mm (150mm and 200mm can be customized)
Dimension of vacuum plate	L410mm×W200mm×H30mm
Regulating range of applicator	0.01~3.5mm
Weight	50KG
Dimension	L550mm×W310mm×H3200mm
