Large Tape Casting Sheet Coater Machine For Lithium Battery

Large Tape Casting Sheet Coater Machine For Lithium Battery

Product Name; Coater Machine
Model:AOT-AFA1000
Power:3100KW
Origin:China
Product description: The AOT-AFA1000 is a cast coating machine with a width of 350mm and a length of 1100mm.Contains a 120°C heatable vacuum chuck and micron adjustable applicator.
INQUIRY

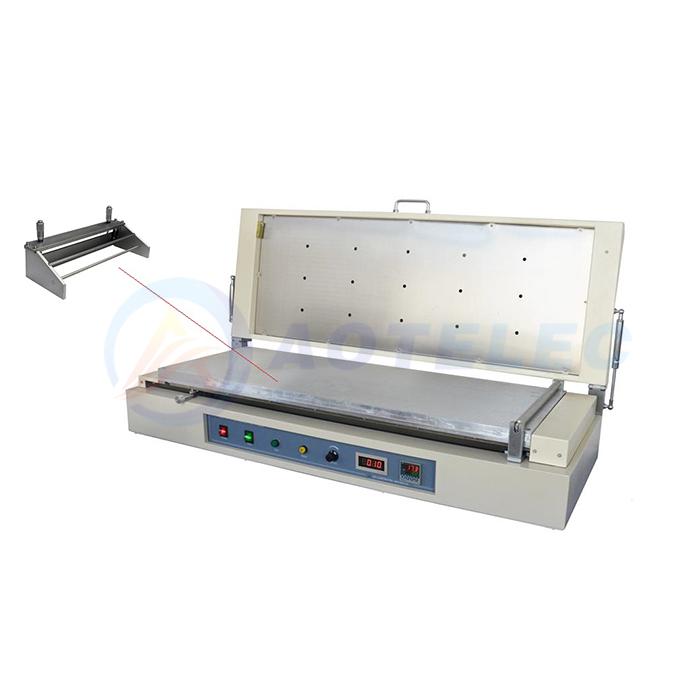

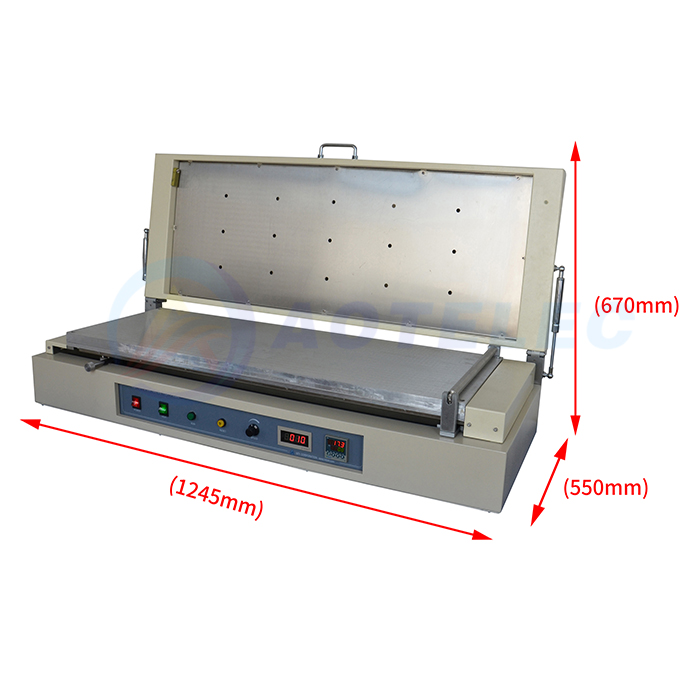

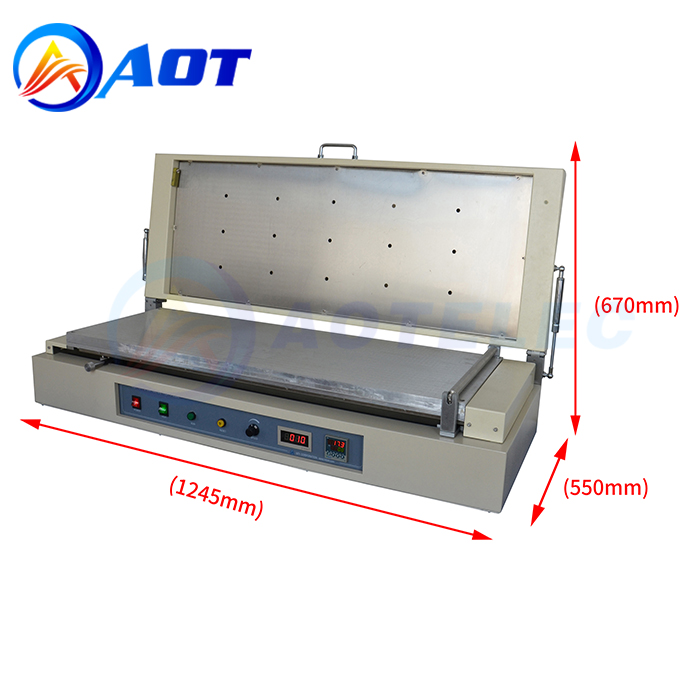

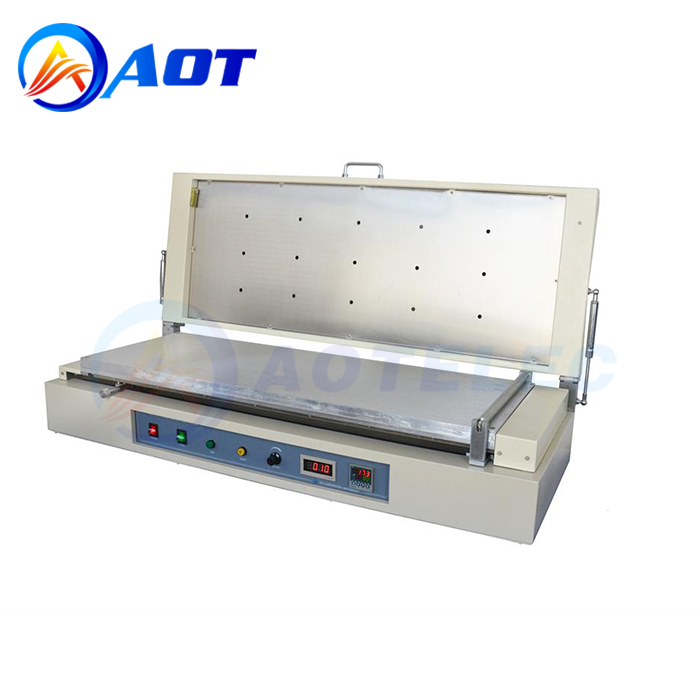

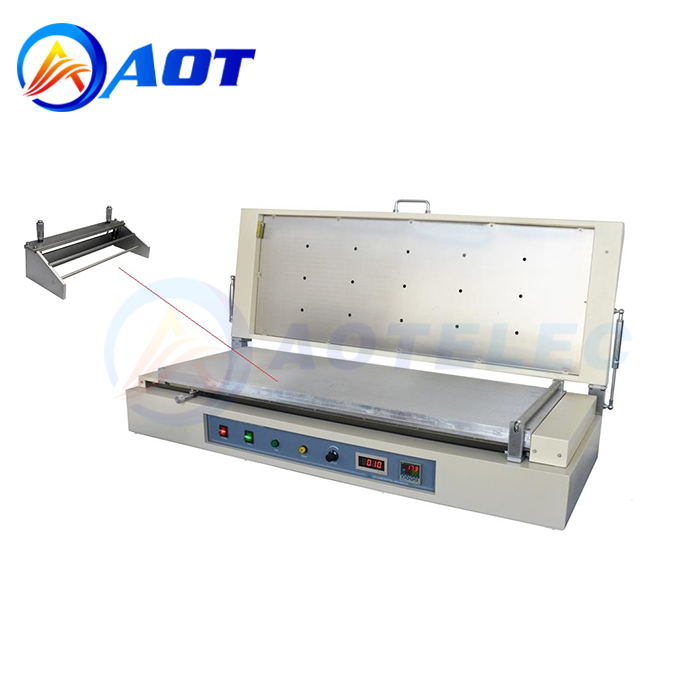

The AOT-AFA1000 is a cast coating machine with a width of 350mm and a length of 1100mm.

Contains a 120°C heatable vacuum chuck and micron adjustable applicator. Mainly used for the production of long thick films, it has a unique drive system that produces a smooth coating on the material. Designed to coat various electrodes for cylindrical batteries such as 21700 etc.

Specification:

Product Name	Large Tape Casting Sheet Coater
Voltage	220V AC +/- 10%, 50/60Hz
Power	3100W
Traverse Speed	28 - 90mm/sec adjustable
Stroke Length	29 - 930mm
Max. heating temperature	120°C
Vacuum chuck Dimensions:	L1100mm x W 350mm x H25mm
Max. Coating Area	1100mm (L) x 350mm (W)
The accuracy of Film thickness	+/- 0.01mm
Net weight	60Kg
Film Applicator	Built-in pushing bar for using micrometer adjustable applicator 300 mm width Applicator with micrometer adjustable head included making coating up to 1000mm(L)
NOTE	When drying coated Li-ion battery electrode sheets, simply set the target temperature to the temperature (usually 80°C is required). Controller, close the lid and wait for the slurry to dry. .
