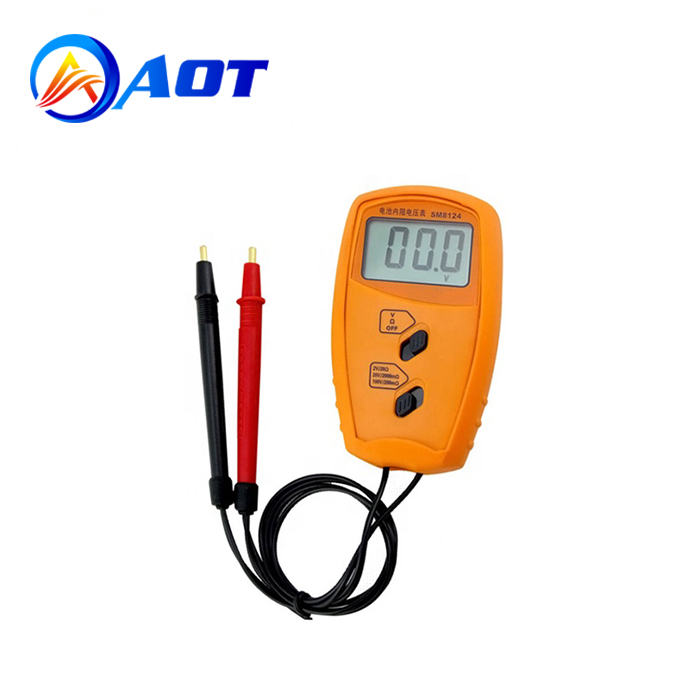

Portable Lithium Ion Battery Voltage Internal Resistance Tester

Model Number: AOT-SM8124
Related industry: Lithium ion battery
Input Power: 0-2000V
Dimension: 130*72*30mm
Product description: AOT-SM8124A Resistance Voltage Tester is a portable battery tester used for battery voltage and internal resistance test, it is Suitable for lithium-ion battery, nickel-metal hydride, lithium manganes
INQUIRY

AOT-SM8124A Resistance Voltage Tester is a portable battery tester used for battery voltage and internal resistance test, it is Suitable for lithium-ion battery, nickel-metal hydride, lithium manganese, lead-acid battery and other single battery or battery pack with voltage no more than 200V.

Model	AOT-SM8124A Resistance Voltage Tester
Voltage testing range	0-1.9V, 2-19.9V, 20-100V
Voltage resolution ratio	1mV, 10mV, 0.1V
Inner resistance testing range	0-199.9mΩ, 200mΩ-2Ω, 2-20Ω
Accuracy	0.1mΩ, 1mΩ, 10mΩ
Inner resistance testing method	4-wire measuring, small error
Testing needle	4-needle testing (sharp needle)
Testing cable	500mm
AC signal	1000Hz±10%
Suitable battery	Lithium battery, Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on.
Structure	LCD display testing results Simple operation with Button press
Notice	This machine can not test battery with voltage more than 100V, Please don’t test battery more than 100V. It will damage the machine. Guarantee that the battery positive and negative connection is right.
Dimension(LWH)	1307230mm
Weight	200g
