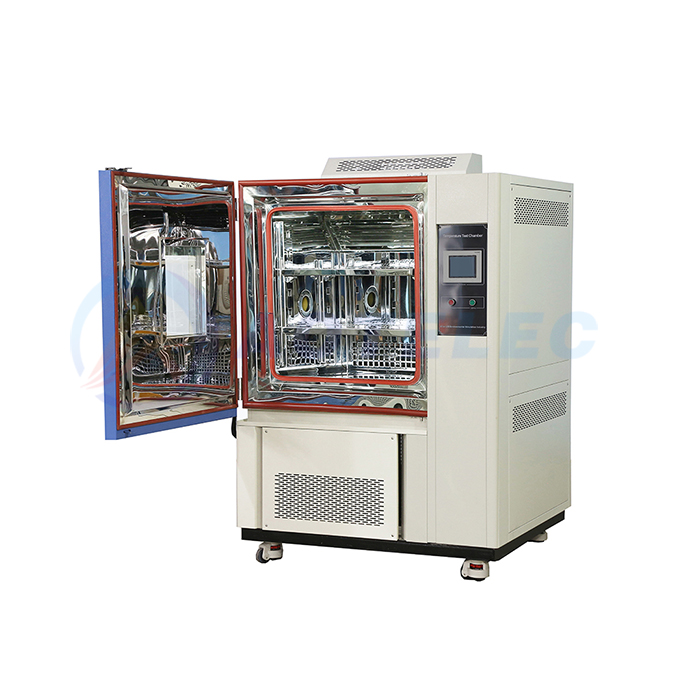

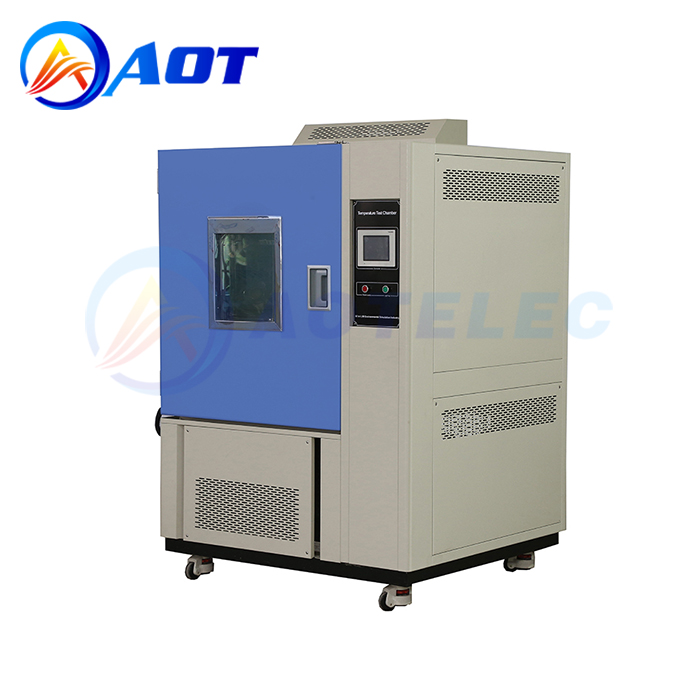

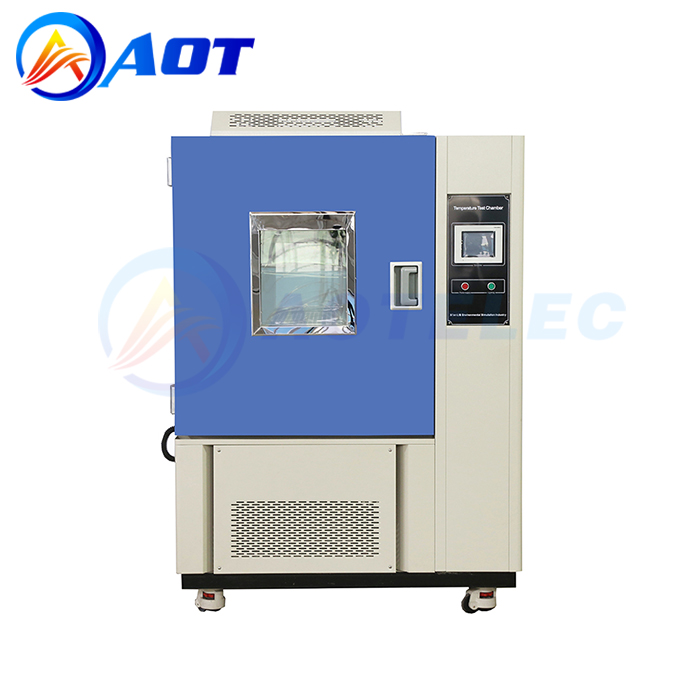

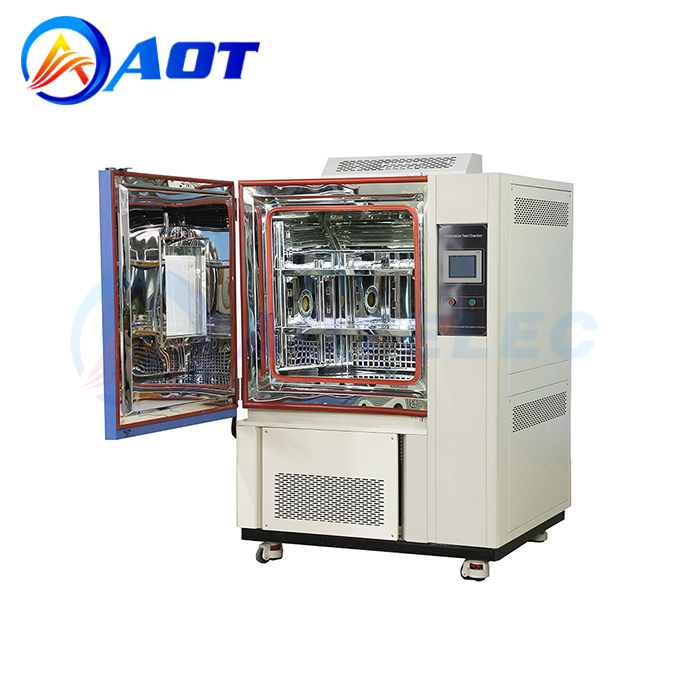

Lithium ion Battery Cells High and Low Temperature Humidity Chamber

Lithium ion Battery Cells High and Low Temperature Humidity Chamber

Workroom Volume: 800L
Temperature Range: -40℃~+150℃
Power Supply: AC380V 50Hz
Power: Electronic
Product description: Laboratory High Low Temperature Humidity Control Stability Test Environmental Chamber for Battery to perform temperature & humidity test, cold resistance test, thermal cycle test, ultra low temperatur
INQUIRY

Laboratory High Low Temperature Humidity Control Stability Test Environmental Chamber for Battery to perform temperature & humidity test, cold resistance test, thermal cycle test, ultra low temperature test, high temperature test, storage condition, and calibration function.

Name	Environmental Lithium ion Battery Cells High and Low Temperature Humidity Chamber
Model	TH-100	TH-225
Internal Dimension (mm)	400500500	500600750
Overall Dimension (mm)	86010501620	96011501860
Interior Volume	100L	225L
Heat load	1000w
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Refrigerant	R404A, R23
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller
	Ethernet connection, PC Link
Humidifier	External isolation, stainless steel surface evaporation humidifier
Dehumidification	Evaporator
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Humidity Sensor	Dry and wet bulb sensor
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Standard Configuration	1 Cable hole (Φ 50,) with plug; 2 shelves
Power Supply	220V 50Hz / 380V 50Hz
Maximum Noise	65 dBA
Environmental Conditional	5℃～+35 ℃ ≤85% RH
