  • High Speed 3D Ball Mill with Two Jars (80ml SS & Nylon)
High Speed 3D Ball Mill with Two Jars (80ml SS & Nylon)

High Speed 3D Ball Mill with Two Jars (80ml SS & Nylon)

  • Model: AOT-MSK-SFM-3
  • Speed: 1200 max. RPM
  • Origin: China
  • Warranty: 2 Year
  • Product description: AOT-MSK-SFM-3 is a compact high-speed ball mill with 3D movement for making the small quantity of samples at easy and fast. It has higher impact energy created by rotation, vibration, and oscillation
  • INQUIRY

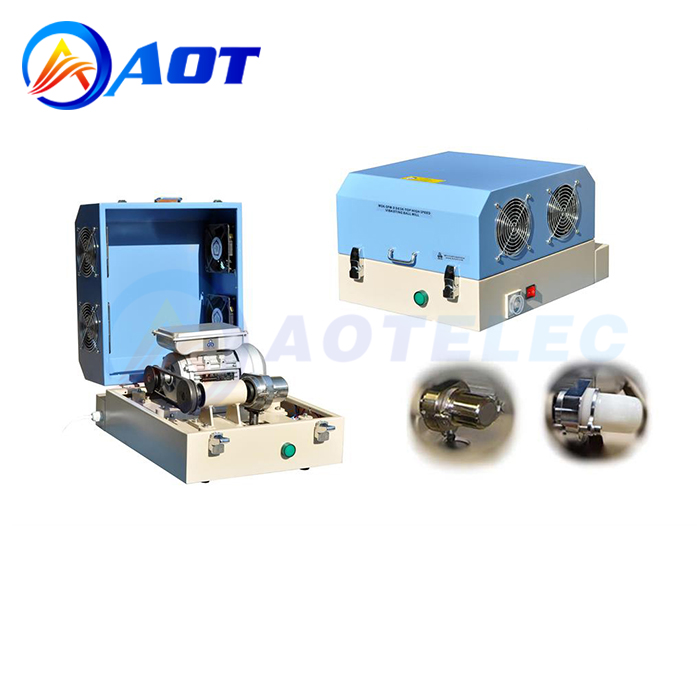

AOT-MSK-SFM-3 is a compact high-speed ball mill with 3D movement for making the small quantity of samples at easy and fast. It has higher impact energy created by rotation, vibration, and oscillation with frequency up to 1200RPM with a two-year warranty. The MSK-SFM-3 can be used in either dry or wet methods to mill materials and mix all kinds of solids, suspended liquids, and pastes with different sizes and materials. Two milling jars (SS and Nylon) are included for the use of most of the materials. It is an ideal choice to make small quantity samples in material and chemical research laboratories.


Features

1.1200 max. RPM allows efficient pulverization and homogenization

2.The range of jar materials (Nylon, Alumina, SS, and Agate) offered for various applications

3.Easy jar installation

4.Optional for variable speed and forced chilling air cooler

Standard Milling Jars & Media

(Two Milling Jars are included)

. One 80 ml Nylon Jar with a set of Zirconia milling balls (4 pcs of 11.5 mm, 10 pcs of 10 mm, and 10 pcs of 8mm) are included. It is suitable for grinding/milling materials with minimized contamination.

.  One 80 ml Stainless Steel Jar with a set of SS balls (20 pcs) is included for achieving a finer particle size.

Power Input

Single-phase 208- 240VAC  50/60Hz

300W Max.

For 110V, please order a 750W transformer

The power plug is not included for the 220 VAC version.

Timing Range

0 to 30 minutes for built-in mechanical timer

Warning: Running time for the mill should be less than 30 minutes, otherwise the mill may overheat.

Feeding

Volume: 1/3 of the capacity of the ball milling tank

Feeding Granularity: <1mm

Application Notes

Attention: In order to achieve the best grinding effects, it is suggested to use milling balls with a diameter of less than 10mm for a 50ml alumina jar

Tips for choosing proper jars and milling media for milling and grinding application:

SS mixing jar is suitable for grinding various metal materials

For milling the oxide material, please choose Nylon or alumina/zirconia jar and media

Please consider our SYU-3 Ultrasonic Filtration System for filtering the product.

DO NOT USE stainless steel balls in Alumina jars or vice versa to avoid contamination.

Please use N2 gas if it operates inside of the glove-box, do not use Ar gas



Net Weight

40 kg (88 lbs)

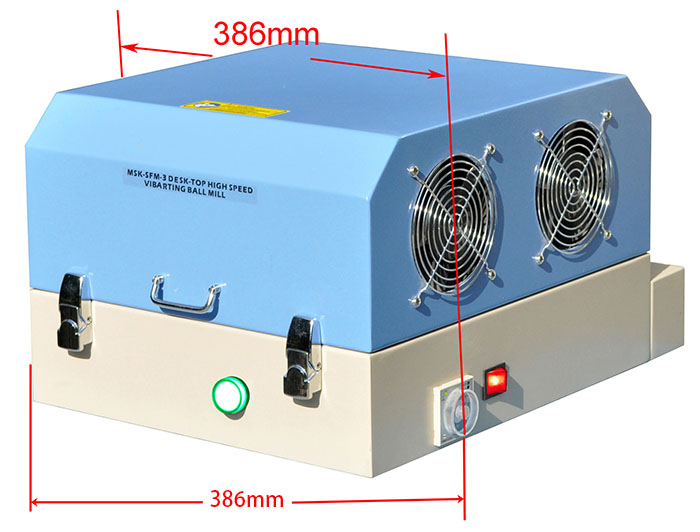

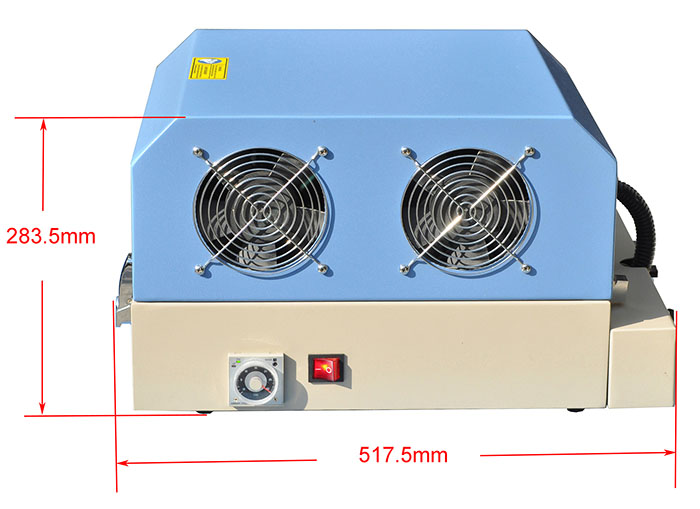

Desktop High Speed Vibrating Ball Mill.jpg

Desktop Vibration Ball Mill.jpg

3D Ball Mill.jpg

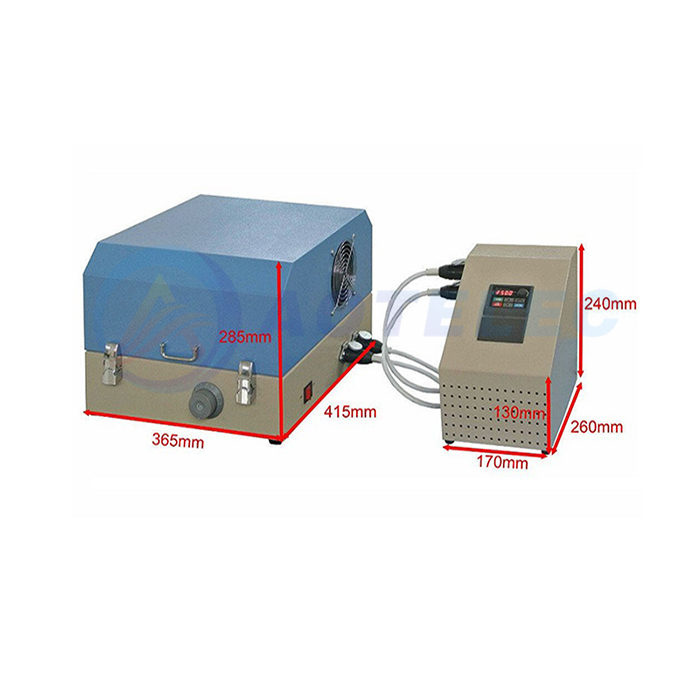

* Speed controller is optional

Speed 3D Ball Mill
