  • Pneumatic Battery Spot Welder Machine for 18650 Cylinder Cell Welding

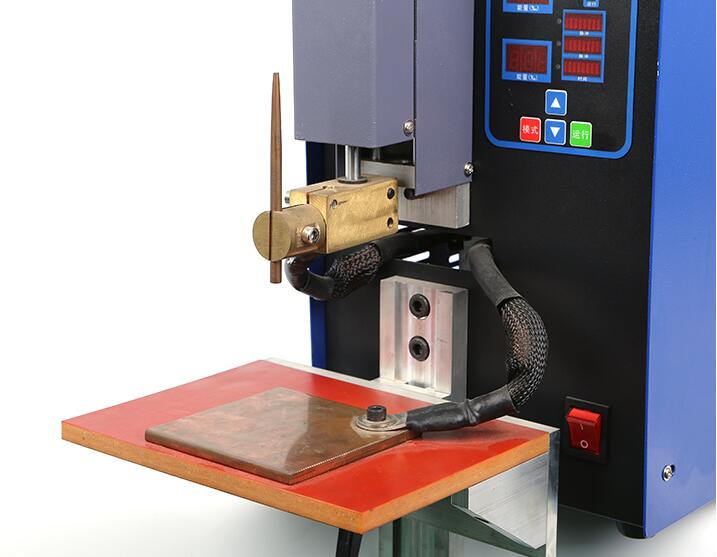

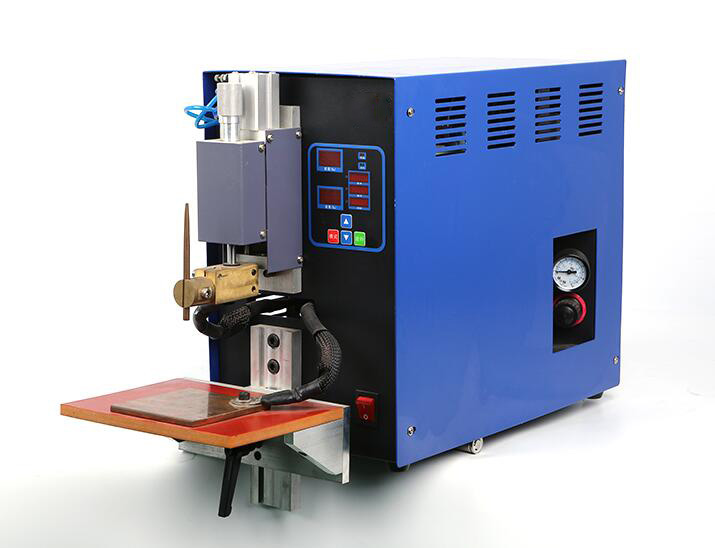

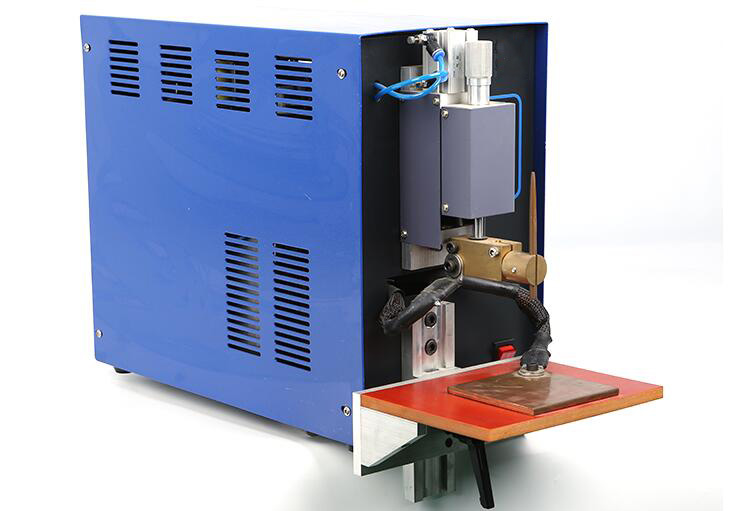

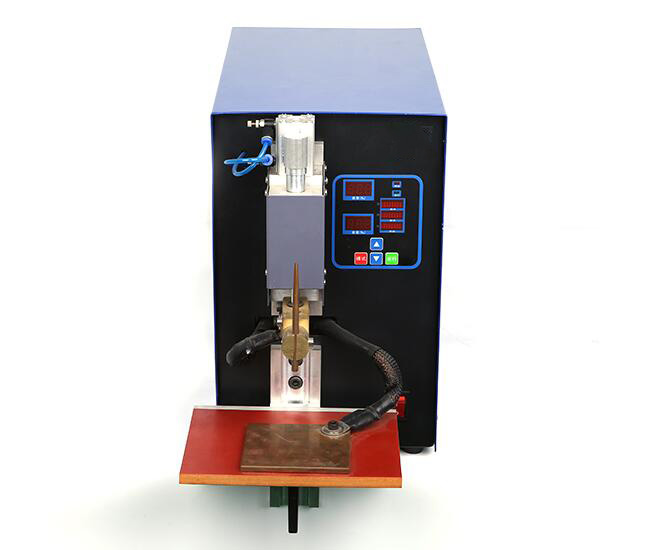

Pneumatic Battery Spot Welder Machine for 18650 Cylinder Cell Welding

Pneumatic Battery Spot Welder Machine for 18650 Cylinder Cell Welding

  • Model: AOT-SW-650
  • Origin: China
  • Max Welding Thickness: 0.25mm
  • Max output power: 10KVA
  • Product description: Pneumatic battery spot welder machine used for 18650 cylinder cell welding
  • INQUIRY

Cylinder cell lab equipment ( WELDER ) :

This product is the enormously popular AC pulse tab welder, controlled by single chip microcomputer. Its capability is more stable and reliable. It is designed for producing high standard NiCr, Ni-Mh, Li batteries, used for welding negative case and tab of cylinder batteries (single pin welding).



Features :

1. Welding current is stable; welding spot is even and has a good appearance with no black spot.

2. Low pressure and watering phenomenon after Li-batter welding can be overcame; it is an ideal equipment for producing and assembling batteries.

3. Controlled by single chip microcomputer, single-pulse, double-pulse and multi-pulse welding can be accomplished.

4. All parameters are digitalized so parameter regulation is intuitive and accurate.

5. Welding pin pressure can be regulated privately and conveniently so that the welding pressure is stable and reliable.

6. Positioning welding is accurate, and applicable for cap cells welding, the yield is high.

7. Nice appearance, and light weight.



CYLINDER CELL LAB EQUIPMENT

Item Name

Cylinder cell spot welding machine

Max output power

10KVA

Welding current

00~99

Power

AC220V±10%  50~60Hz

Input air pressure

0.3~0.7MPa

Application

Applicable for many welding pieces of 0.03mm~0.25mm

Dimension

L400×W560×H400mm

Weight

45KG
