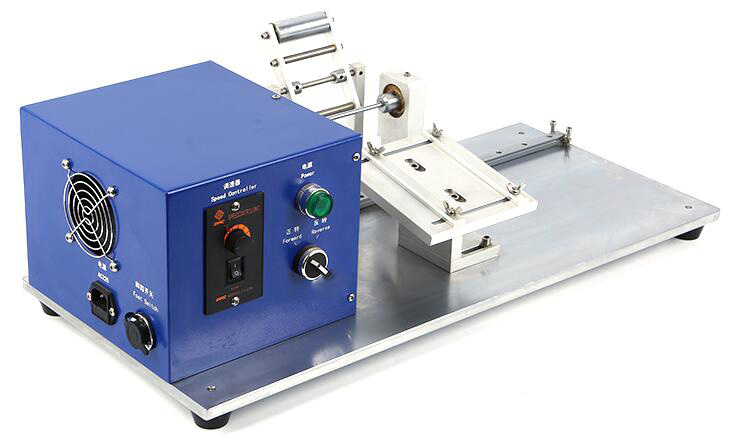

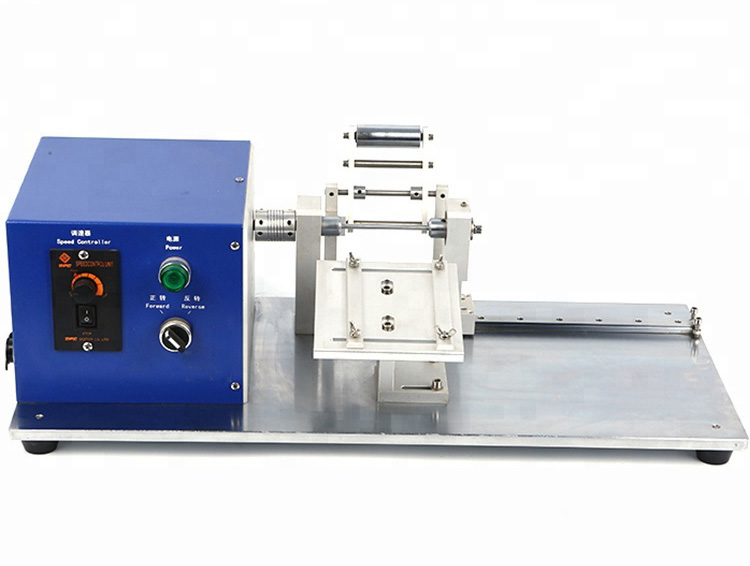

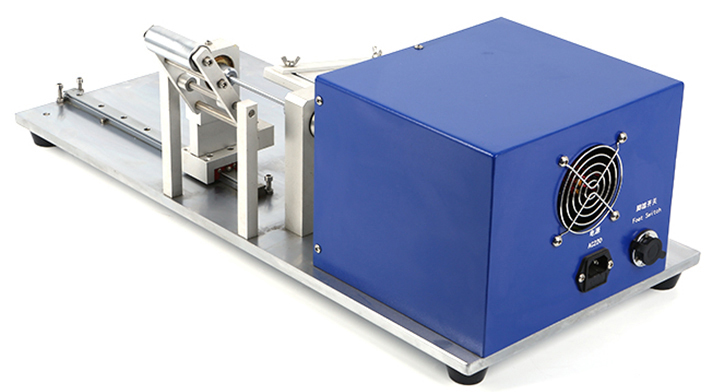

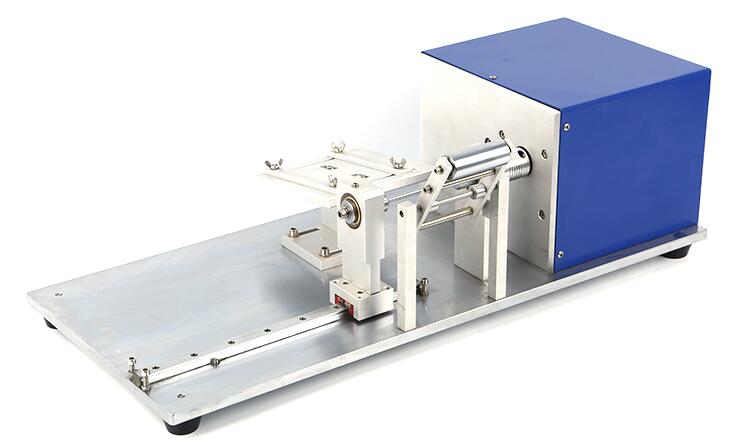

Manual Battery Winding Machine for Cylinder Cell

Manual Battery Winding Machine for Cylinder Cell

  • Model: AOT-M-WM-C
  • Origin: China
  • Applicaton: Battery electrode and separator winding
  • Winding Speed:0-170RPM
  • Product description: Semi-automatic winding machine for winding electrodes with separator together in the research of Li-ion cylinder batteries
  • INQUIRY

Semi-automatic winder for winding electrodes with separator together in the research of Li-ion cylinder batteries

Features :

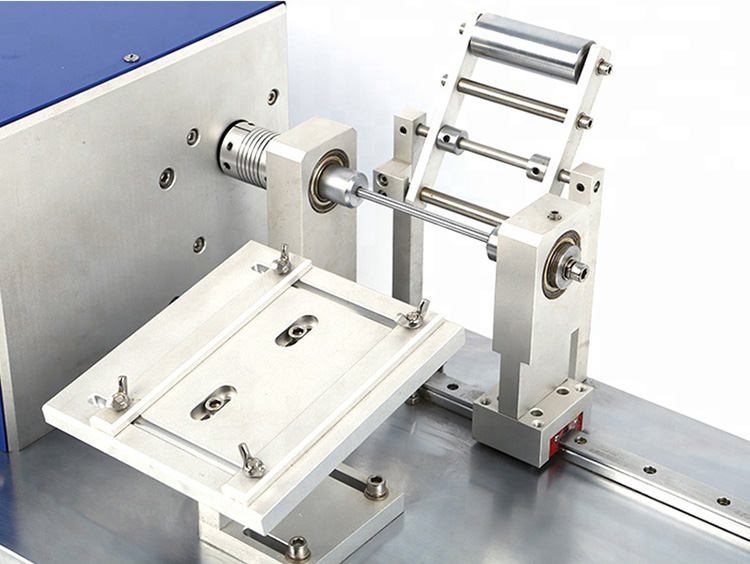

1. Feeding electrode channel can be regulated from up to down, left to right, front to back.

2. Winding support wheel ensures the winding tightness of battery core.

3. End winding supporter increases the winding accuracy of battery core.

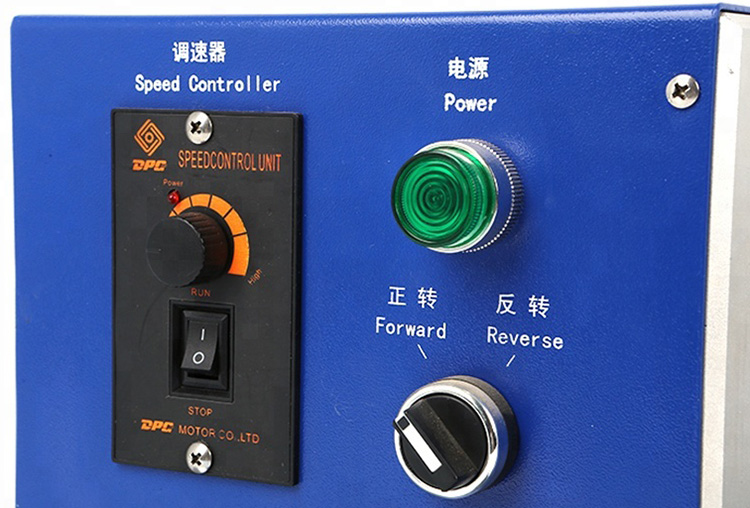

4. Froward & reverse is optional ,he speed can change steplessly.

5. Small dimension, nice appearance, simple operation.

Model

Semi-Automatic Winding Machine AOT-M-WM-C

Working Voltage

AC110V/220V, 50/60HZ

Power

40W

Warranty

One Year limited warranty with lifetime support

Winding Speed

0-170 RPM Adjustable

Winding Shaft

Dimensions: 4mm(OD) x 65mm(L) for 18650 cylinder battery core,

Other sizes like 26650 and 32650 are available upon request

Winding Mode

Switchable between clockwise and counterclockwise

Output

70-100EA/h, according to battery size and maunal

Product Dimensions(L*W*H)

360*310*280mm

Net weight

About 20kg

Application Notes

This machine can be used for cylinder battery with round winding shaft,

and you can also choose the square winding shaft for pouch cell core winding,

We will supply with the suitable winding accessories according to your battery model

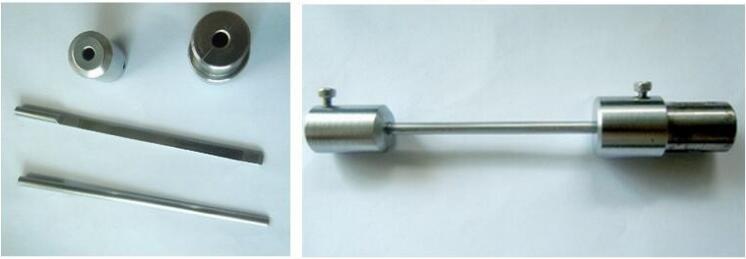

Winding Shaft

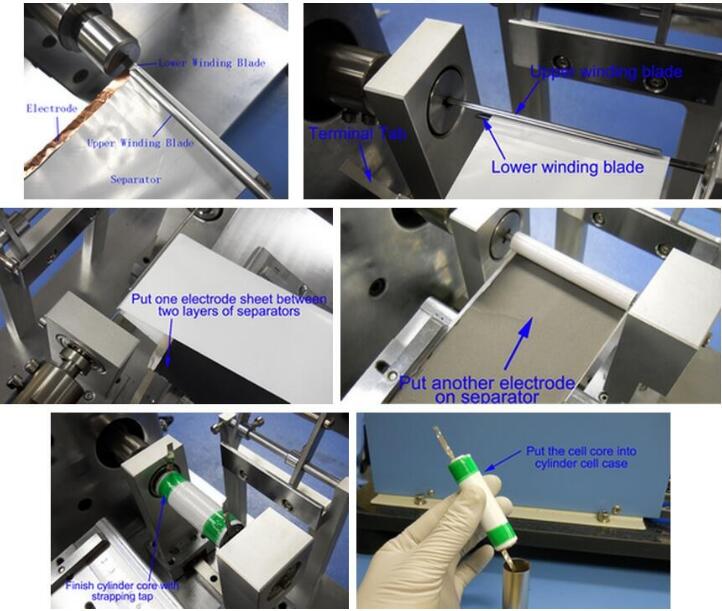

Cylinder Cell Winding Process
