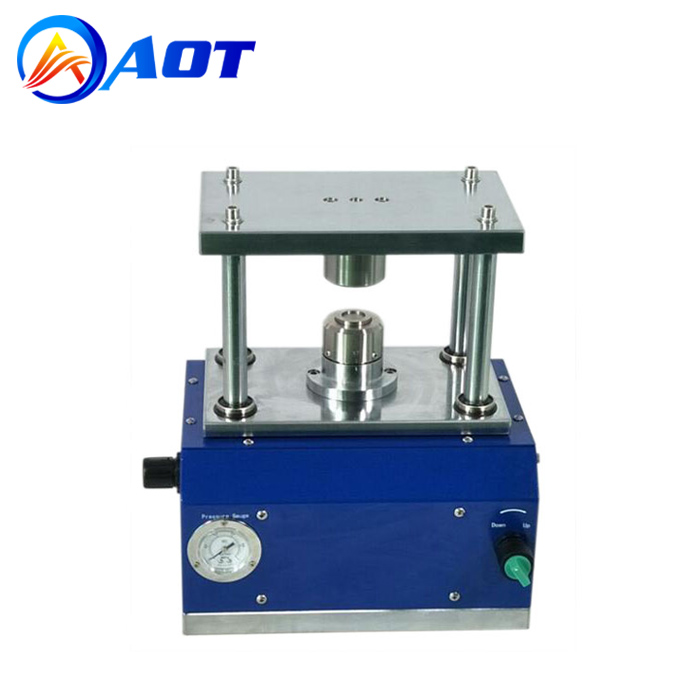

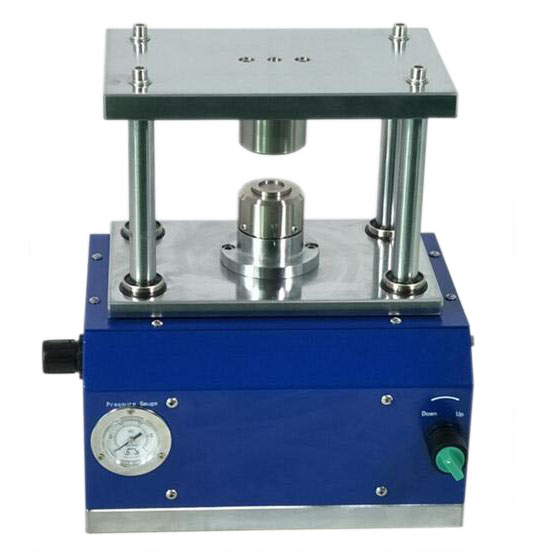

Pneumatic Coin Cell Crimping Machine for Li-ion Battery Lab Research

Model: AOT-PCM20
Origin: China
Applicaton: Coin Cell Reseach
Material: 304 stainless steel
Product description: AOT-PCM-20 pneumatic coin cell crimper machine is a newly designed coin cell crimping machine with lighter weight. It can be put inside glove box for coin cell battery material lab research.
INQUIRY

Pneumatic Coin Cell Crimping Machine Crimper for Li-ion Battery Lab Research

1. AOT-P-CM-20 coin cell crimper machine is a newly designed coin cell sealing machine with lighter weight. It’s mainly used for coin cell battery material lab researching, Capacitor sealing research,also be used in small batch trial production in factories. equipped with different die,also used for disassemble battery,press electrode sheet,press battery powder,etc.

2. In addition, customers can easily replace the original die for disassembling purpose.

3. It can also be worked in glove box with smaller volume.

Machine Model	Pneumatic Coin Cell Crimping Machine AOT-PCM-20
Gas source	0.6 0. 8mpa argon, nitrogen cylinders, or compressed air (Not suggest to use compressed air in glove box)
Exhaust design	Specially designed exhaust port, can external via connected by KF40 and other devices
Gas consumption	The gas consumption of single seal is about 480 ml
Crimping pressure	Manual control valve, maximum pressure 1mpa.recommended pressure 0.7mpa.accuracy ±0.5%
Crimping stroke	30mm
Crimping die	Standard crimping die is CR20xx, with optional die sets
Disassembling die	Optional or added various specifications such as CR16, CR20, CR24,CR30, etc.
Machine size	L290mmW205mmH330mm
N.W	25Kg
Structural material	High strength chromium steel, the surface after environmental plating and spray treatment will never rust.
Remark	With the function of preventing short circuit of battery crimping
