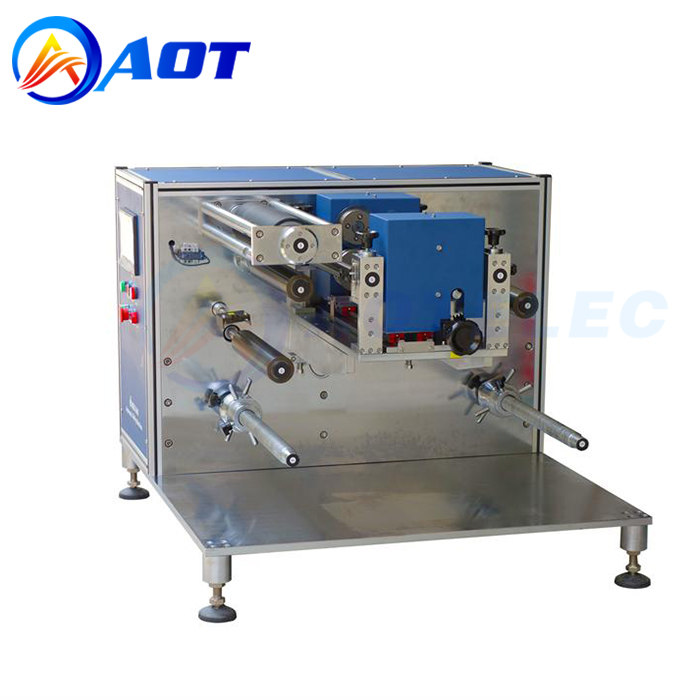

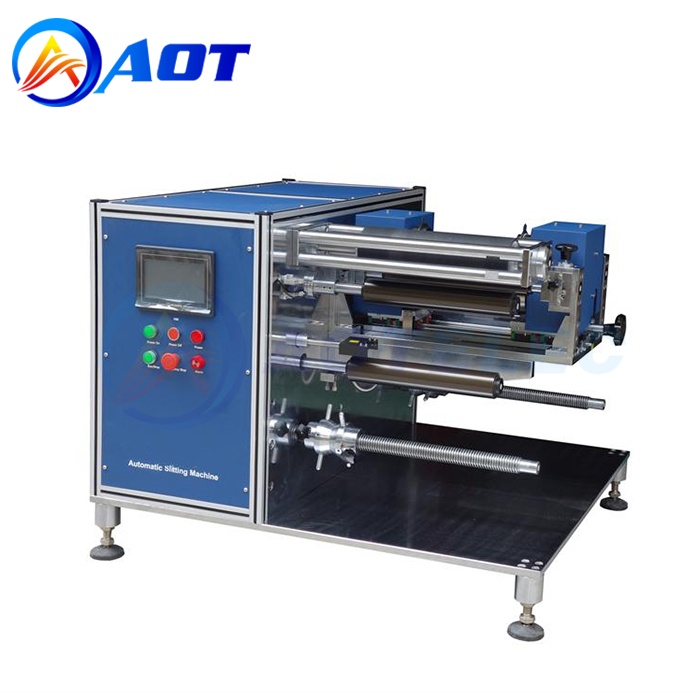

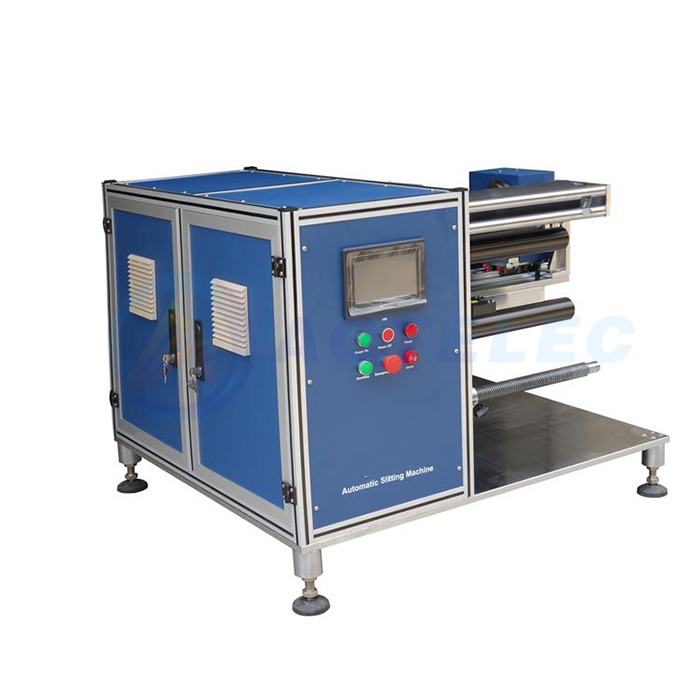

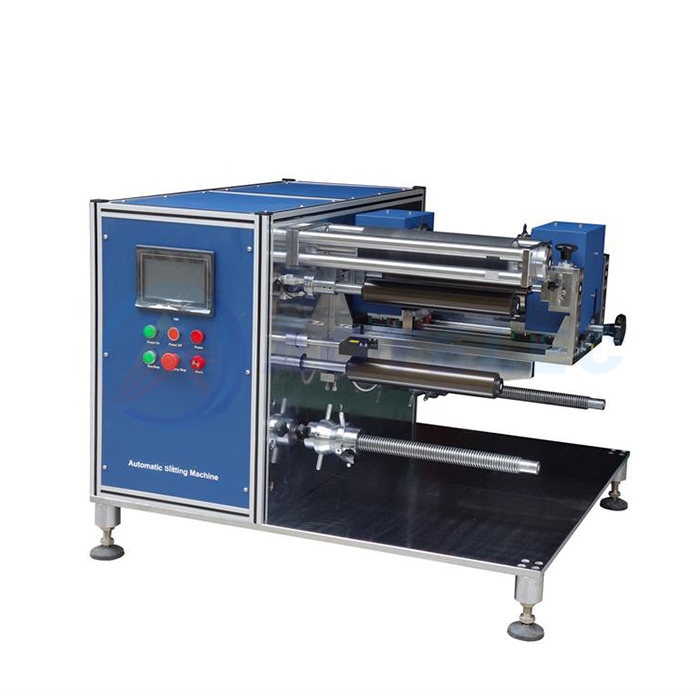

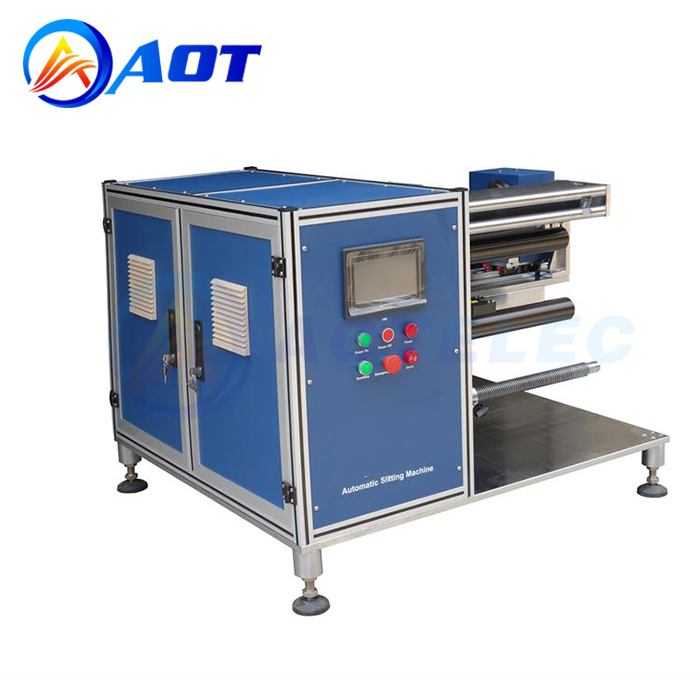

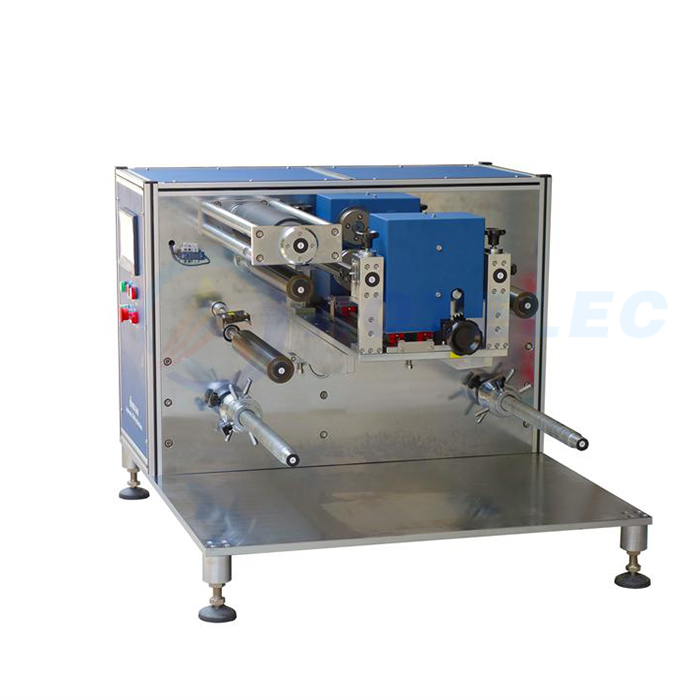

Roll to Roll Edge Slitting Machine for Cylindrical and Pouch Battery

Roll to Roll Edge Slitting Machine for Cylindrical and Pouch Battery

Product Name : Slitting Machine
Power supply:220VAC, 50/60Hz,Single-phase
Power :400w
Cutting Width:30 ~ 300 mm adjustable
Product description: AOT-MSK-540 is mainly used for edge cutting and automatic slitting of coated electrodes in R&D laboratories, for making single electrodes for cylindrical or pouched batteries.
INQUIRY

AOT-MSK-540 is mainly used for edge cutting and automatic slitting of coated electrodes in R&D laboratories, for making single electrodes for cylindrical or pouched batteries.

Product Name	Lithium battery automatic slitting / trimming machine
Power supply	220VAC, 50/60Hz,Single-phase
Power	Max.400w
Cutting Width	30 ~ 300 mm adjustable Stepless adjustable, manual adjustment, digital display
Cutting Thickness	10 - 300 um
Cutting Speed	1 - 5 meter / minute Adjustable
Cutting Blades Materials	ultrafine tungsten alloy
Blade Diameter	100mm
Main features	Burr condition: ≤ 25 um Blade engagement: Adjustable 0.2-0.4mm, digital display Automatic Tension control ≤ 50N Max. Reeling/Unreeling Diameter: 250mm Automatic unwinding correction, accuracy ± 0.5mm
Size	L1000mm x 850 mm x 800 mm（LWH）
Weight	530kg
