Ultrasonic Vibrating Screen For Lithium Battery

Product name: Ultrasonic Vibrating Screen
Voltage: AC220V/110V
Application: Lithium Battery
Power: 100W
Product description: AOT-ZD-100 Ultrasonic Vibrating Screen is a laboratory vibrating sieve used for Different size material screening. It is with Ultrasonic power, large amplitude of ultrasonic transducer and Vibrating r
INQUIRY

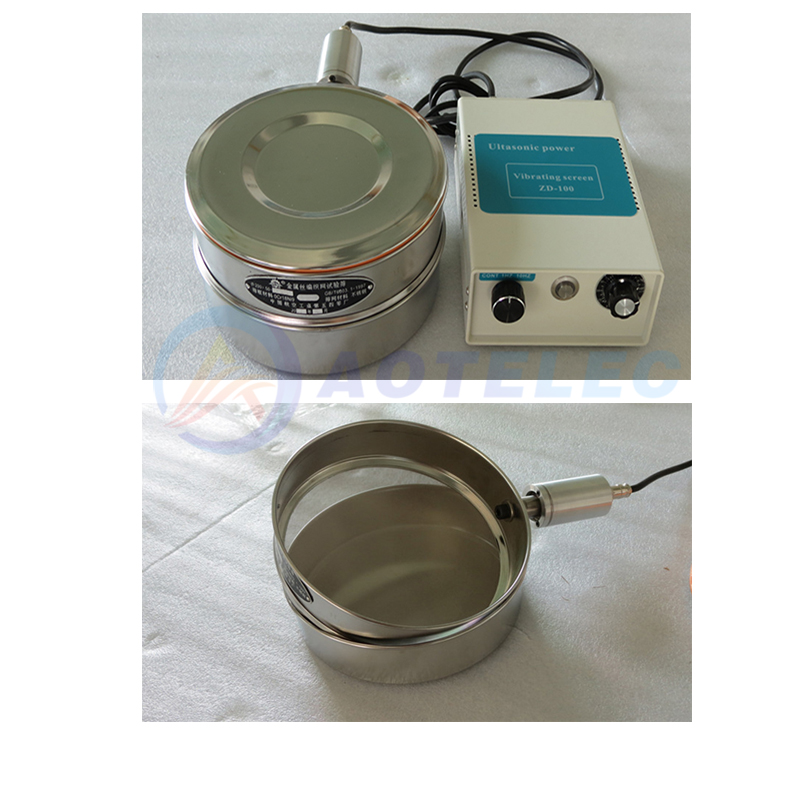

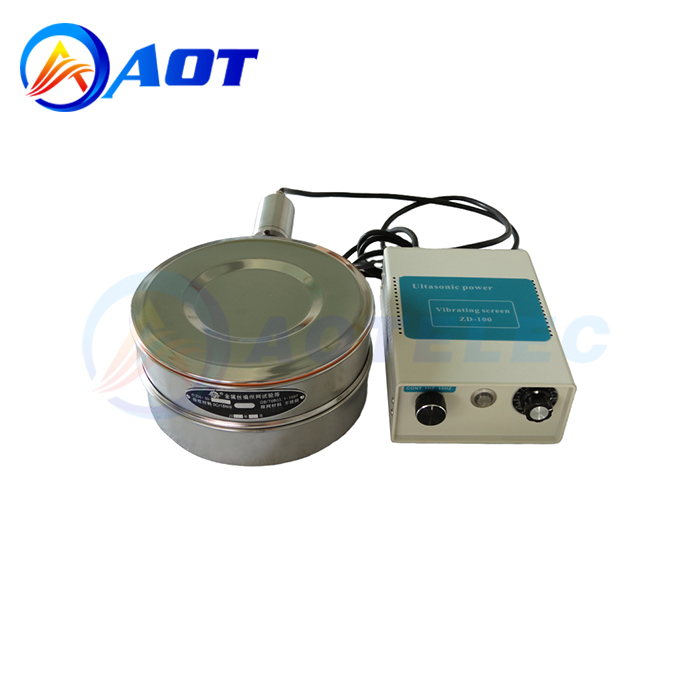

AOT-ZD-100 Ultrasonic Vibrating Screen is a laboratory vibrating sieve used for Different size material screening. It is with Ultrasonic power, large amplitude of ultrasonic transducer and Vibrating ring.

This vibrating screen used for lithium battery lab research mainly used for battery material slurry screening after mixing before coating, in order to remove big Larger particles impurities, so that we can get the best slurry for electrode coating.

Model	Ultrasonic Vibrating Screen TOB-ZD-100
Power generator	Power : 100W
	Frequency : 24-36KHZ
	Net weight : 3kg
	Pulser : 0.1-10s
Energy converter	Diameter : 30mm
	Length : 135mm
	Cable length : 1500mm
Stainless steel mesh	Diameter : 200mm
Stainless steel mesh	Standard mesh : 20-300um
Source voltage	AC220V, 50HZ
Warranty	One Year limited warranty with lifetime support
