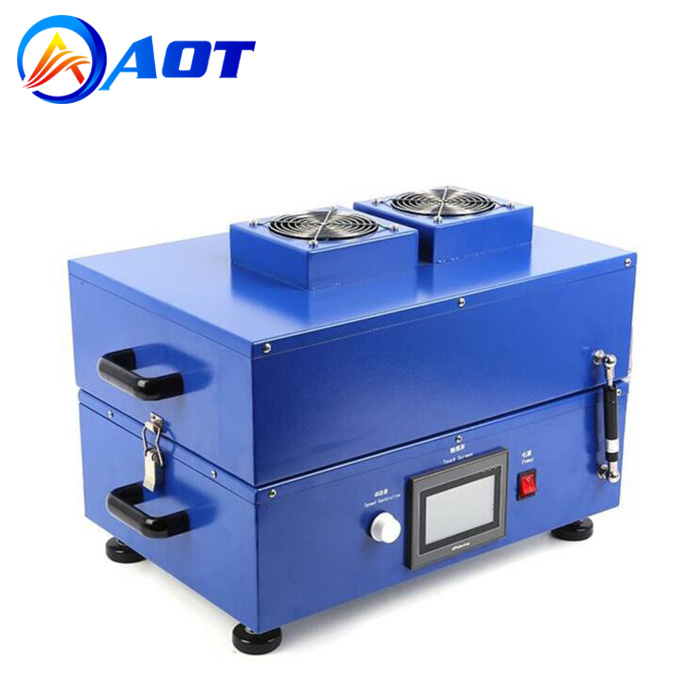

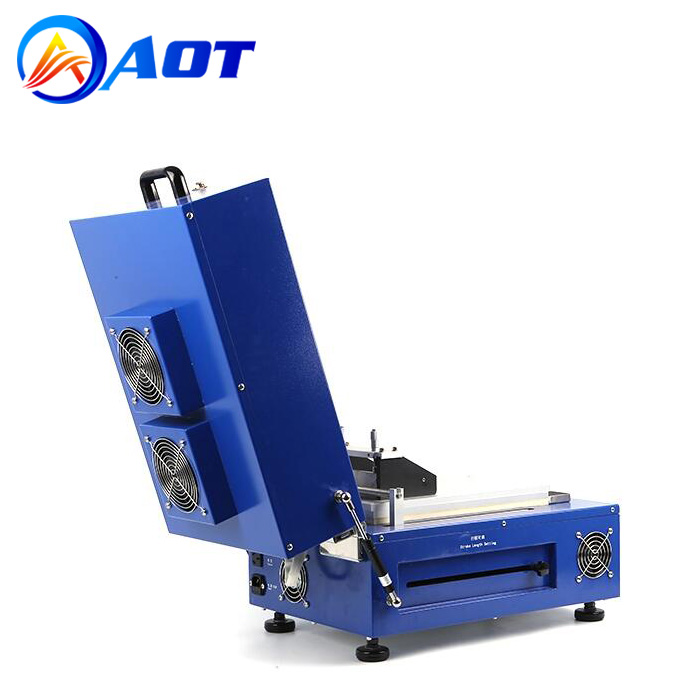

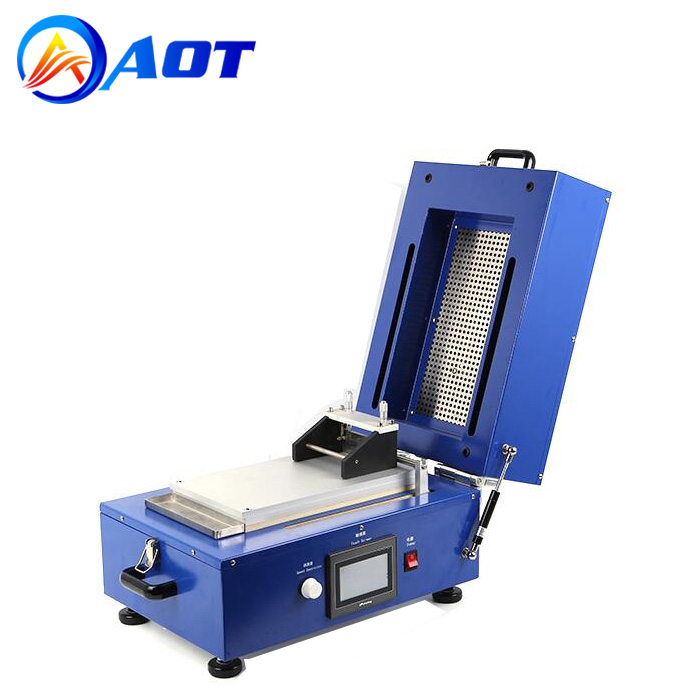

Compact Vacuum Film Coating Machine with Dryer for Battery Electrode

  • Model: AOT-FCM-100
  • Built in Vacuum Pump
  • Touch Screen Control
  • Coating Width 150mm
  • Product description: BATTERY ELECTRODE VACUUM COATING MACHINE WITH DRYER. It's a film hot coater which widely used in all kinds of high- temperature film coating research,like ceramic films, crystal films, battery mate
  • INQUIRY

Battery Small Vacuum Coating Machine with Vacuum Pump and Dryer

Features :
1. Touch-screen ,easy operation .
2. Temperature controlled heating system is digital displayed, max working temperature is 200℃.
3. Timer is digital displayed; the heating time can be set freely.
4. Coating speed can be regulated at a range of 0~200mm/s.
5. Vacuum aluminum plate used to place and take off the substrate quickly.
6. Stroke can be regulated by touch screen at a range of 10~250mm.
7. Coating thickness can be regulated, the accuracy is 0.01mm.
8. Small dimension saves space.
9. Nice appearance, solid geometry design makes well- formed shape.

Application :

Battery lab

Battery research

Lithium ion battery lab

Material research

Trial-production


Item Name

Automatic Film Coating Machine with Cover Heater

Model

AOT-FCM-100

Max Stroke

250mm

Vacuum plate

Equipped with vacuum aluminum plate

Coating Speed

0~100mm/s

Dimension of vacuum plate

L410mm×W200mm×H30mm

Regulating range of scrapper

0.01~3.5mm

Film width

100mm

Heating temperature

Room temperature ~ 200℃

Digital displayed thermostat, the accuracy is±1℃

Power supply

220V/50Hz

Weight

45KG

Dimension

L800mm×W310mm×H330mm

Standard Configurations

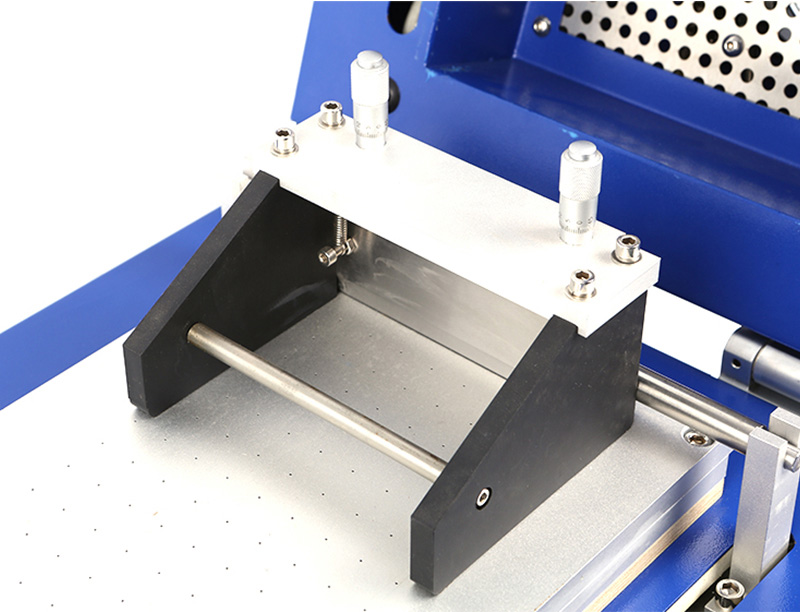

*applicator

*no-oil vacuum pump

*horizontal rod

*feeding box
