The planetary ball mill Featuring small volume, high efficiency and low noise, it is an ideal equipment for R&D institution, colleges and universities, enterprises and laboratories to obtain samples.
Features:
3D curve shape design.
Special gear with low noise.
Product Name |

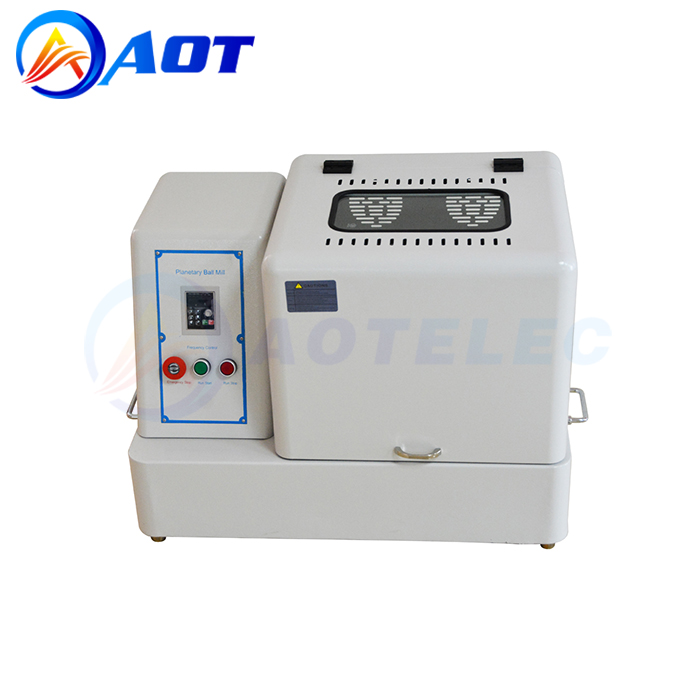

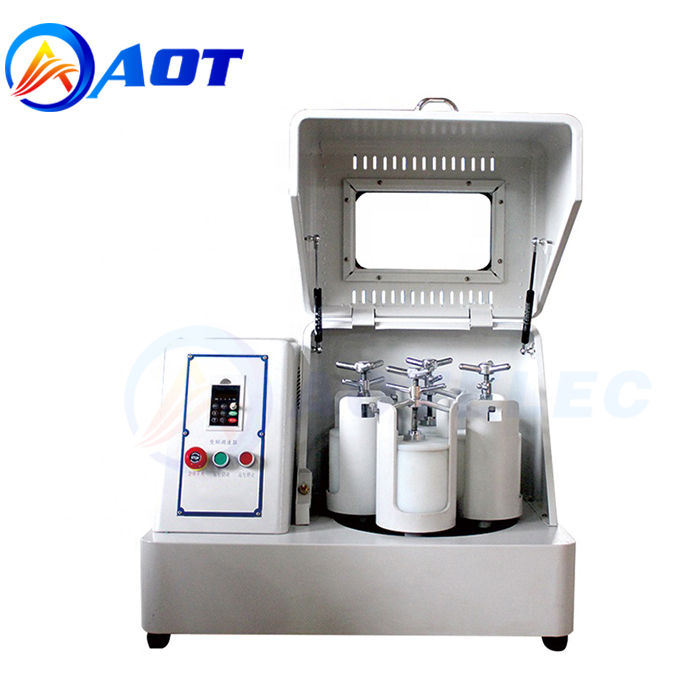

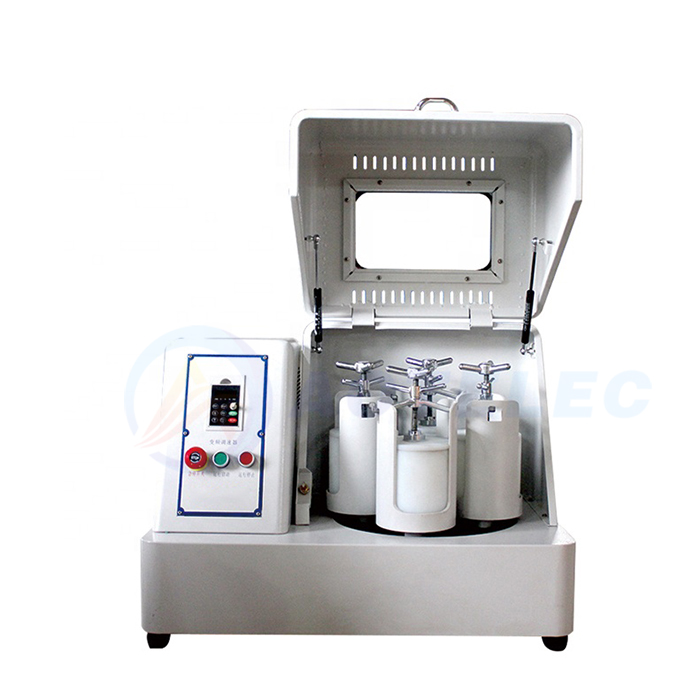

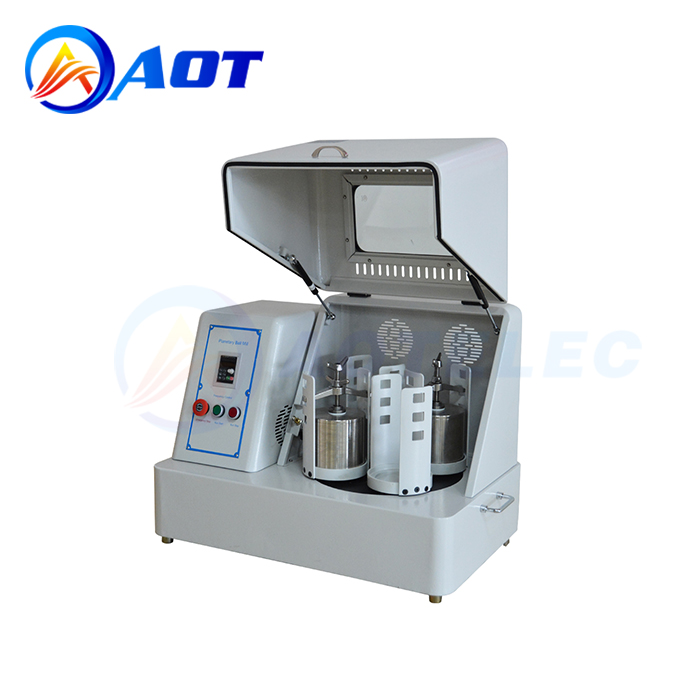

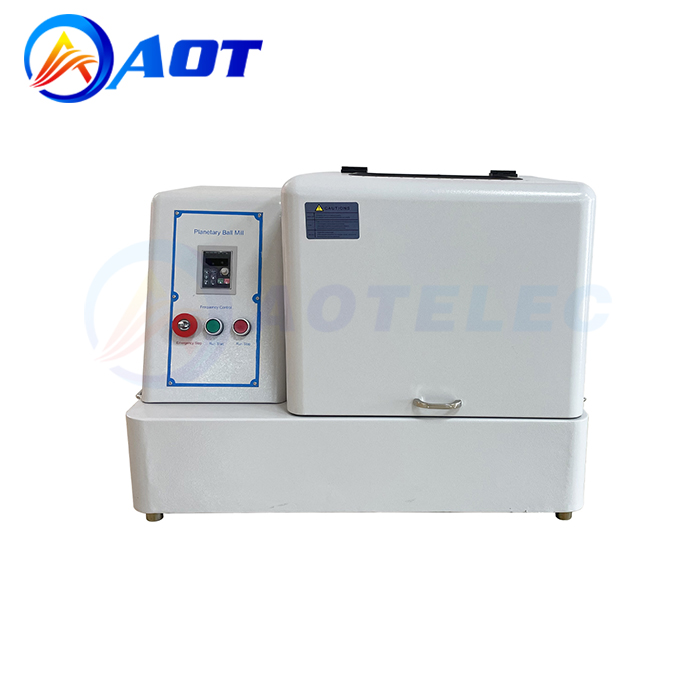

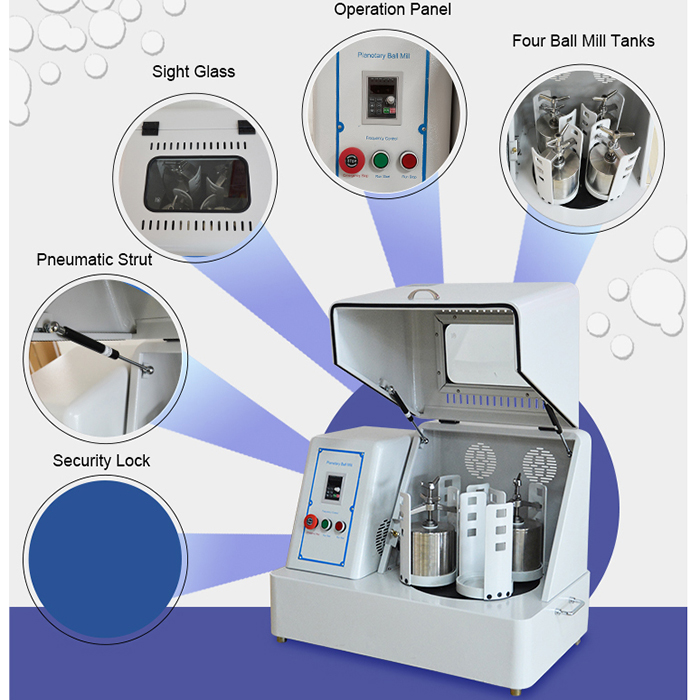

Vertical Planetary Ball Mill AOT-BM-V2L |
Capacity |
2L |
Volume of Each Capacity |
50~500ml |
Pot Quantity |
4pcs |
Running Time Range |
1~9999min |
Reciprocal Running Time |
1~999min |
Adjustable Speed Revolution |
35~335rpm |
Rotation |
70~670rpm |
Noise |
≤60dB |
Speed Control Mode |
Frequency Control |
Transmission Mode |
Gear Drive |
Working Mode |
2 or 4 pots can be used each time |
Max Volume of Each Pot |
2.3 |
Feed Size |
Soft and Crispy material<10mm, Other materials<3mm |
Out-put Granularity |
Minimum Granularity can be reached to 0.1um |
Adjusting Mode of Rotate Speed |
Frequency converter with stepless speed regulation |
Consumption |
0.75KW |
Power Supply |
AC110/220V±10%, 50/60Hz |
External Size(W*D*H)mm |
770*470*570 |
Packing Size(W*D*H)mm |
820*540*680 |
Net Weight(kg) |
93KG |
Gross Weight(kg) |
98KG |
