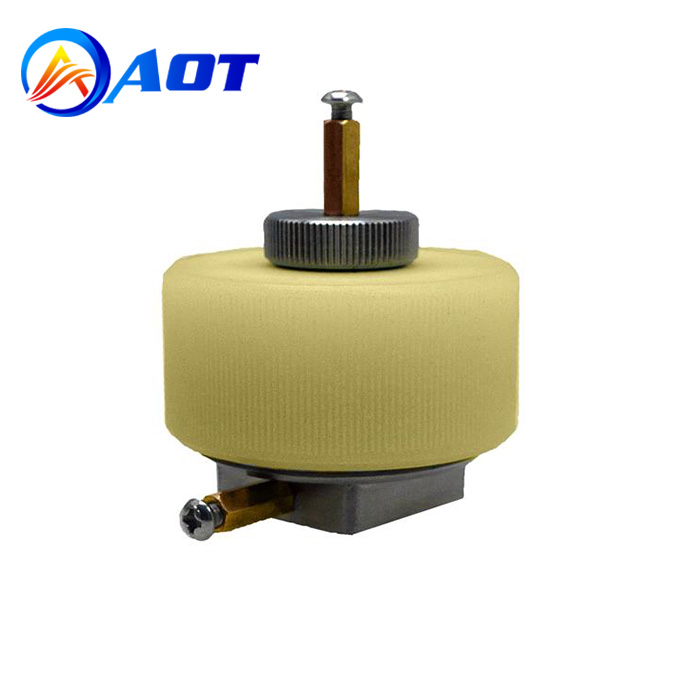

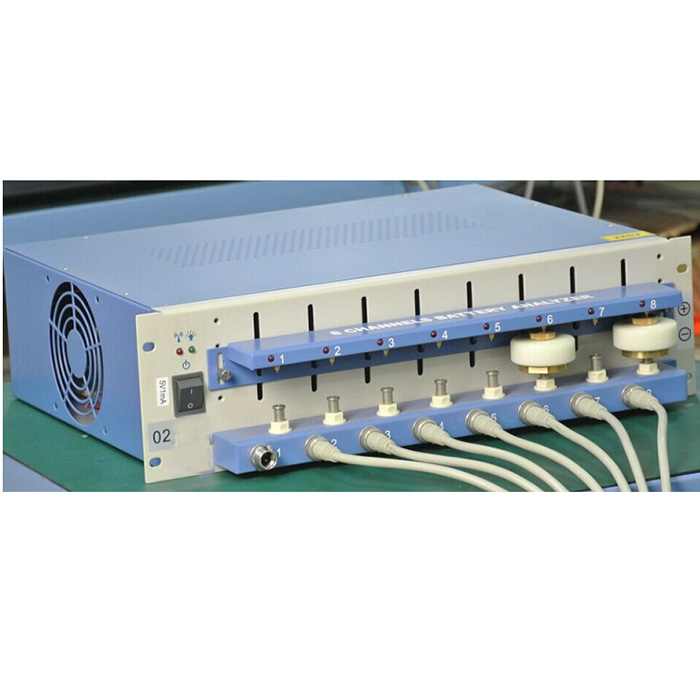

Structure & Features

1. Easy cell assembling by "thread-in" the bottom contacting plate and top plunger into the Nylon body.

2. Stainless Steel contact plate and plunger.

3. The Body is made of Nylon body with Max. 100oC working temperature

( PTFE is optional with 200oC Max. working temperature )

4. The air-tight design ensures zero electrolyte leakage

5. Easy to separate and clean after use

6. Same functionality as "Swagelok Type Cell" but with more size options for electrode and separator.

7. Spacer inside the test cell to press down on the electrode and prevent the electrode from curling

8. Extending rod included for each electrode

9. O-ring is made of Fluorine rubber to ensure no liquid electrolyte leaking

Optional Gold Plated Cell

1. The test cell can be gold plated for extra corrosion resistance, please chose from the personalization section.

2. Note: Customized (Au coated) test cells are non-returnable and non-exchangeable.

Electrode Insert Dia.

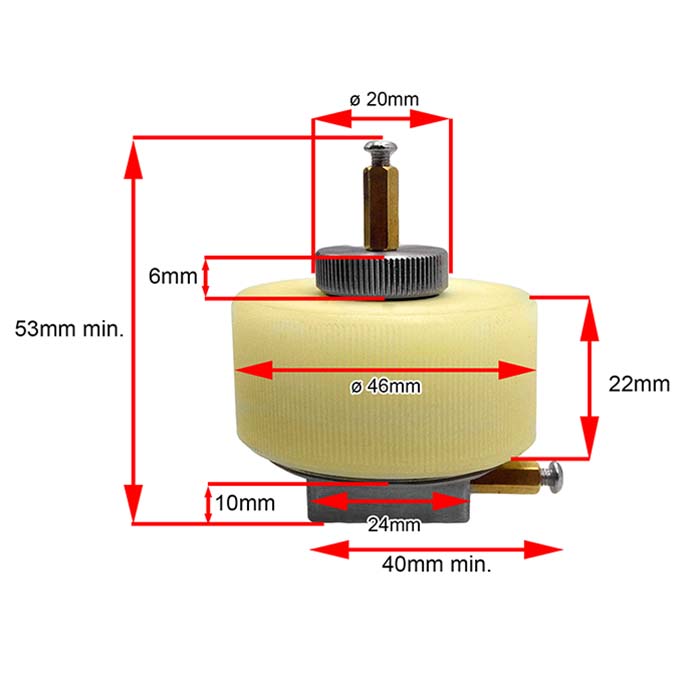

Standard diameter that can be put inside： 20mm Diameter Max

Working Temperature

Max. 100 ºC  (Nylonmaterial)

Spring

Test piece is compressed and held in place by one compression spring.

Material: SUS 304

Spring Rate / Stiffness: 7.9 N/mm (806 g/mm)

Dimensions when free: 5 mm OD × 3.4 mm ID

Length under maximum compression: 7.2 mm

Gold Coating (Optional)

Anti-corrosive Au coating on the base contact plunger and inserts is available upon request

Note: Customized (Au coated) test cells are non-returnable and non-exchangeable.
