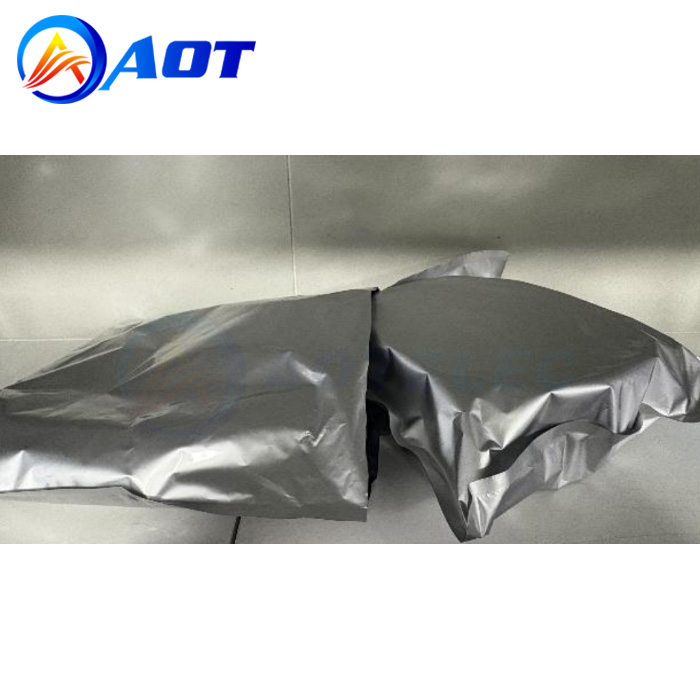

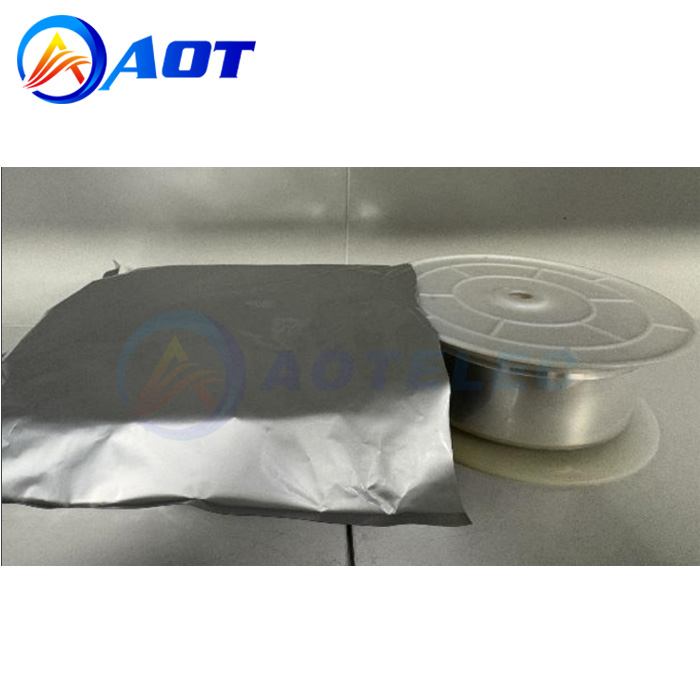

Lithium Foil: The High-Energy Enabler Transforming Modern Battery Technologies

Lithium foil, a thin sheet of metallic lithium with typical thickness ranging from 5 to 100 micrometers, has emerged as a critical material in advanced battery systems. Endowed with exceptional properties—including the highest theoretical specific capacity (3860 mAh/g) among all metal anodes, low density (0.534 g/cm³), and excellent electrical conductivity (11.0 × 10⁶ S/m)—it addresses the core demand for higher energy density in batteries powering electric vehicles (EVs), portable electronics, and stationary energy storage. As the race to develop next-generation batteries accelerates, lithium foil’s unique capabilities are reshaping anode design, enabling breakthroughs in battery performance while posing engineering challenges that researchers and manufacturers are actively overcoming.

Core Roles of Lithium Foil in Key Battery Systems

1. Lithium Metal Batteries (LMBs): Reviving a High-Potential Technology

Lithium metal batteries were among the earliest rechargeable battery designs, using lithium foil as the anode paired with cathodes like manganese dioxide. While overshadowed by lithium-ion batteries (LIBs) due to safety concerns, LMBs are experiencing a renaissance thanks to advances in electrolyte and separator technology. Lithium foil’s role as a direct lithium source eliminates the need for intercalation (ion insertion into a host material) required by graphite anodes in LIBs, enabling a 2–3x increase in energy density (targeting 500–700 Wh/kg, compared to 250–350 Wh/kg for conventional LIBs). For example, modern LMBs with lithium foil anodes and NMC cathodes have demonstrated 400 Wh/kg energy density in lab tests, a threshold that could extend EV range beyond 800 kilometers on a single charge.

2. Lithium-Sulfur (Li-S) Batteries: Overcoming Capacity Limitations

Li-S batteries, hailed for their theoretical energy density (2600 Wh/kg) and low cost (sulfur is abundant), rely on lithium foil as the anode to complement sulfur-based cathodes. In these systems, lithium foil undergoes oxidation during discharge, releasing Li⁺ ions that react with sulfur to form lithium polysulfides. The high capacity of lithium foil balances the sulfur cathode’s large theoretical capacity, creating a synergistic system that outperforms LIBs. However, Li-S batteries face challenges with polysulfide shuttling (soluble intermediates migrating to the anode) and lithium dendrite growth. Researchers are addressing this by modifying lithium foil surfaces—e.g., coating with carbon nanotubes or metal oxides—to trap polysulfides and suppress dendrites, extending cycle life from 100 to over 500 cycles in recent prototypes.

3. Solid-State Batteries (SSBs): Unlocking Safety and Density

Solid-state batteries, which replace liquid electrolytes with solid electrolytes (e.g., LLZO, LGPS), are uniquely suited to leverage lithium foil’s advantages. The solid electrolyte acts as a physical barrier against dendrite growth, mitigating the primary safety risk of lithium foil anodes. Lithium foil’s compatibility with solid electrolytes enables intimate contact at the anode-electrolyte interface, enhancing ion transport efficiency. Leading SSB developers like QuantumScape use 20–50 μm lithium foil anodes paired with sulfide-based solid electrolytes, achieving 400+ Wh/kg energy density and 1000+ charge-discharge cycles. For EVs, this translates to faster charging times (15 minutes for 80% capacity) and improved safety, as solid electrolytes are non-flammable.

4. Pre-Lithiation: Boosting Initial Capacity of LIBs

Lithium foil also plays a vital role in optimizing conventional LIBs through pre-lithiation—a process that compensates for initial capacity loss caused by solid electrolyte interphase (SEI) formation on graphite anodes. By depositing a thin layer of lithium foil onto graphite or silicon anodes before cell assembly, manufacturers can replenish Li⁺ ions consumed during the first charge cycle. This technique increases LIB capacity by 10–15% and extends cycle life by reducing anode degradation. Silicon-based anodes, which suffer from severe volume expansion (300%), particularly benefit from pre-lithiation with lithium foil, as it stabilizes the SEI layer and improves structural integrity.

Technical Challenges and Innovation Directions

Despite its advantages, lithium foil faces inherent challenges that limit widespread adoption:

Dendrite Growth: Needle-like lithium dendrites can pierce separators, causing short circuits and thermal runaway. Solutions include surface modification (atomic layer deposition of Al₂O₃ or ZnO coatings), electrolyte additives (lithium bis(fluorosulfonyl)imide), and structured lithium foil (porous or composite designs) that guide uniform Li⁺ deposition.

Volume Expansion: Lithium foil expands by ~200% during lithiation, leading to cell deformation. Researchers are developing composite lithium foil (e.g., lithium-infused carbon scaffolds) that accommodates expansion while maintaining structural stability.

Air Sensitivity: Lithium foil reacts rapidly with oxygen and moisture, requiring processing in inert environments (argon or nitrogen). Advanced manufacturing techniques, such as roll-to-roll processing in glove boxes, are reducing production costs and improving scalability.

Future Outlook: Lithium Foil in Next-Gen Energy Storage

As global demand for high-energy-density batteries grows—driven by EV adoption and grid-scale storage—lithium foil is poised to play an increasingly central role. Key trends include:

Ultra-Thin Lithium Foil: 5–10 μm foils reduce material usage and volume expansion, critical for compact devices like wearables and drones.

Customized Surfaces: Tailored coatings (e.g., conductive polymers, alloy layers) optimize compatibility with new electrolytes and cathodes.

Sustainable Production: Recycling lithium from spent batteries to produce foil reduces reliance on primary lithium mining, aligning with green energy goals.

Lithium foil’s unique combination of high capacity, light weight, and conductivity makes it irreplaceable in the quest for better batteries. While challenges remain, ongoing innovations in material science and manufacturing are unlocking its full potential, paving the way for safer, more efficient energy storage that will power the next era of electrification.
