Micrometer Film Applicator-100mm Film casting doctor blade

Model: AOT-KTQ-100
Name: Film Applicator

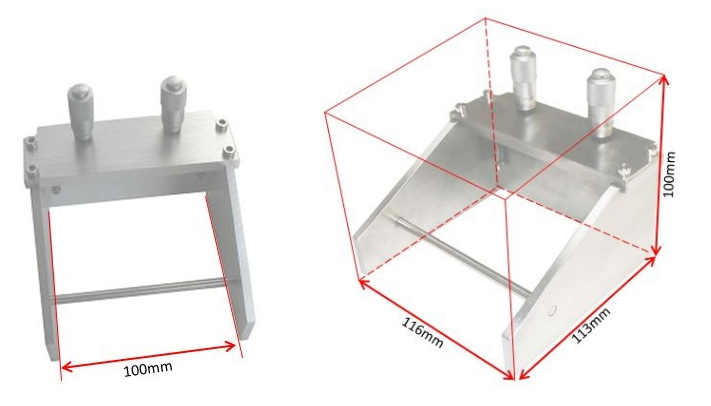

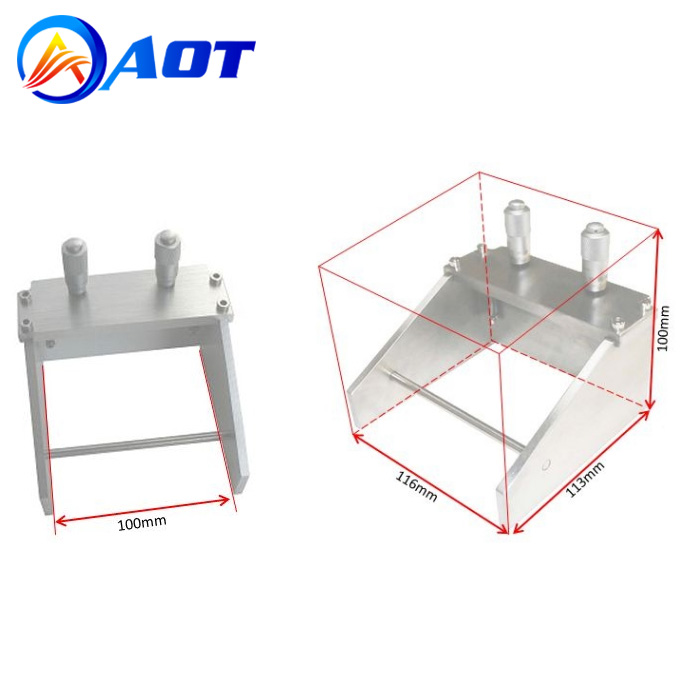

Coating width: 100mm
Material: 304 stainless steel
Product description: Casting Film Machine 1 Coating width : 100mm 2 Battery electrode preparation 3 Battery technology support
INQUIRY

Lab Film Applicator Machine Coating Width 55 ~ 200mm Can Customize

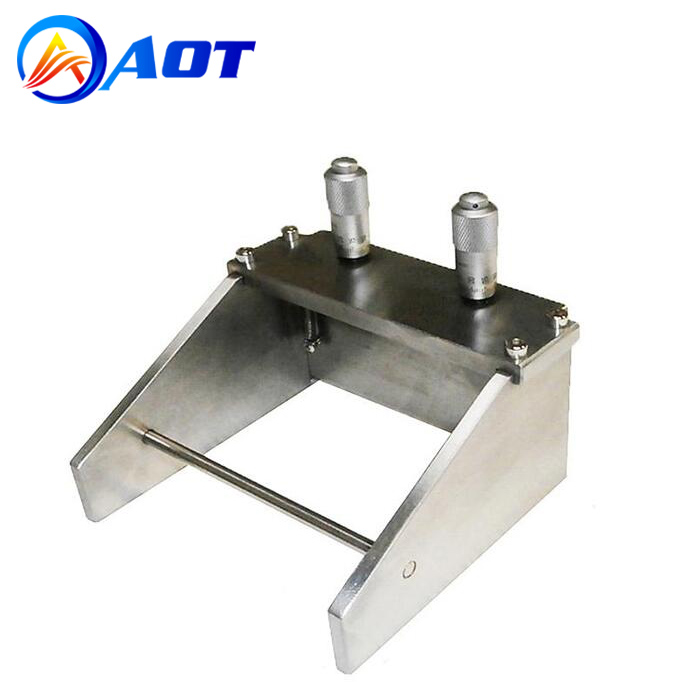

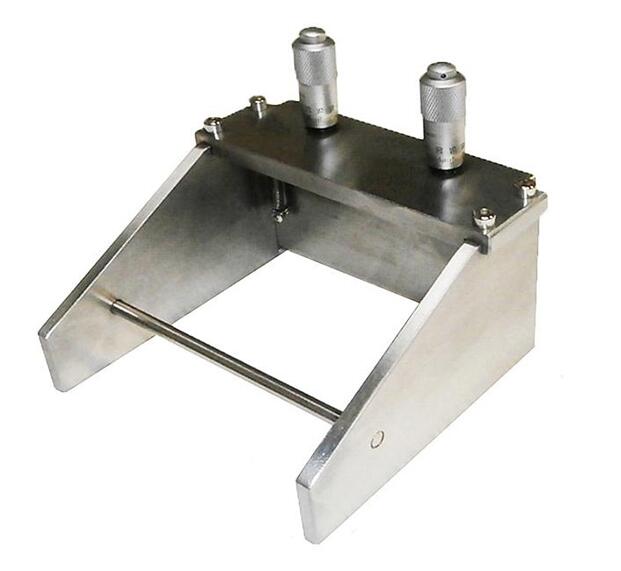

Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.

The operator sets the blade clearance by adjusting the micrometers. This is the excellent tool to make the quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at the lower cost. Stainless steel knife blade with the precision ground edge.

Features	100 mm standard width Make wet film thickness between 0 - 3500 microns Micrometer head's controllable accuracy is 10 microns Made of SS304 stainless steel
Application Notes	Replacement springs are available for future maintenance, please contact us to order
Optional	Upgrade to the digital micrometers for better accuracy, with customized doctor blade. Note that the for 100mm applicator, the two digital Micrometer Heads need to sit a little angle as shown in the picture due to the width. NOT naturally compatible film applicator, but could customize our film applicator width above 100mm to fit. Please email us first to order customized doctor blade, the separate order would not fit
Digital Micrometer Specifications	Digital Micrometer Head 1" Travel Reads to 0.001 mm (50 millionths of an inch) 0.003 mm accuracy Instant inch/millimeter conversion
