180mm Wet Film Applicator with Slurry Guiding Plate

Model: AOT-KTQ-180S
Name: Film Applicator
Coating width: 180mm
Material: 304 stainless steel
Product description: 180 mm standard width. Built in slurry guiding plate to make film coating at easy. Make wet film thickness between 0 - 5000 microns. Micrometer head's controllable accuracy is 10 microns. Slurry C
INQUIRY

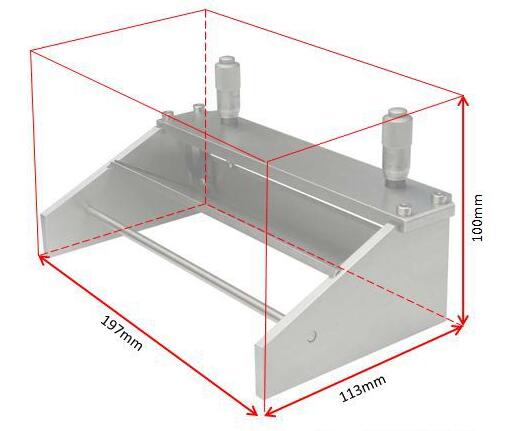

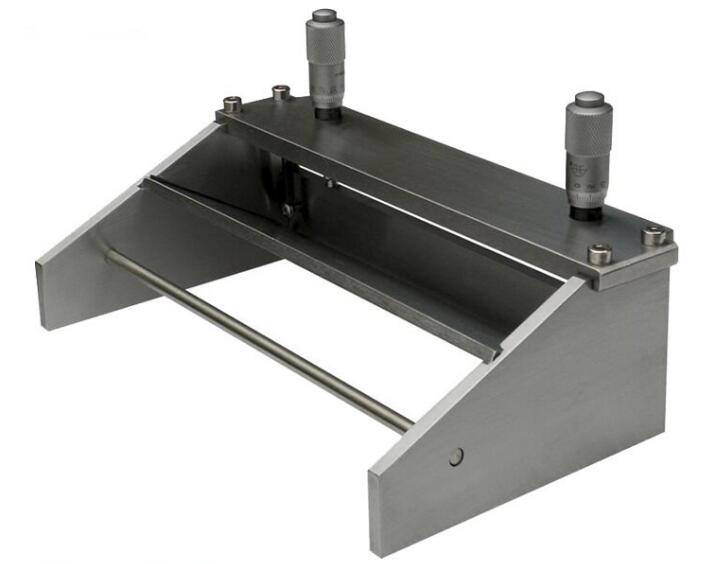

180mm Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.

The operator sets the blade clearance by adjusting the micrometers. This is excellent tool to make quality film for material research laboratories to make ceramic tape casting, battery electrodes, and various coating at lower cost. Stainless steel knife blade with precision ground edge.

Features of the adjustable film applicator:

180 mm standard width.

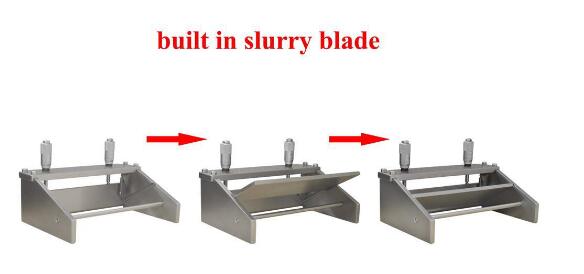

Built in slurry guiding plate to make film coating at easy.

Make wet film thickness between 0 - 5000 microns.

Micrometer head's controllable accuracy is 10 microns.

Slurry Capacity: 72 ml.
