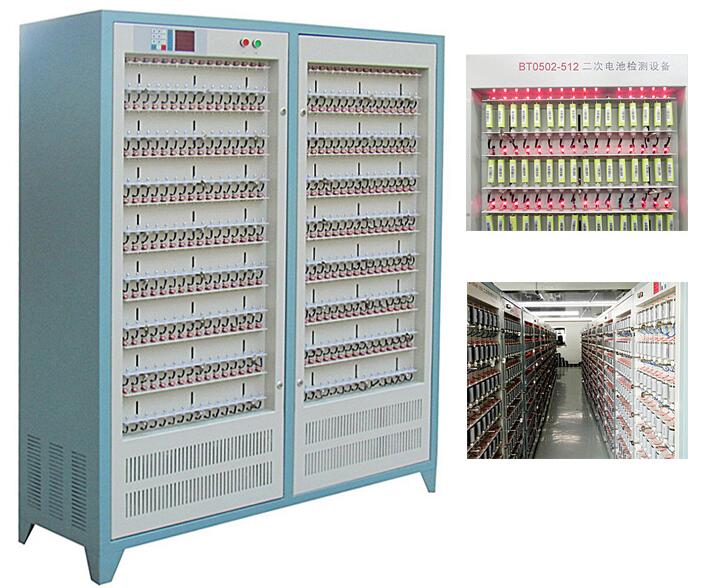

Battery Formation and Grading Tester for Cylinder Cell

Battery Formation and Grading Tester for Cylinder Cell

  • Model: AOT-BT0503-512-C
  • Origin: China
  • Applicaton: Battery Cell Testing
  • Channel Number: 512
  • Product description: Battery Formation and Grading Tester for Cylinder Cell
  • INQUIRY

1 This equipment is mainly constituted by the computer system and control software, communication interface and battery detecting cabinet.



2 The Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, micro controller programming and control panel.



3 The tester is specially used for lithium ion Cylindrical Cell 18650 battery Formation and grading.



Size W*L*H

1500*500*1950mm

Working Voltage

AC 220V±5%  50 HZ

Max. Consumption

About7000W

Channel number

512

Fixture Type

Clamp

Fixture Width Adjustable Range

0~58 mm

Jig spacing(mm)

75mm

Voltage measurement range

DC 100~4500mV

Voltage measurement accuracy

±0.1%FS±0.1%RD

Voltage resolution

1mV

Constant voltage range

DC 3000~4500mV

Lowest discharge voltage

2500mV

Charge and Discharge Current Range

DC 5~3000mA

Current measurement accuracy

±0.1%FS±0.1%RD

Current resolution

1mA

Time measurement range

999min/step

Time measurementdeviation

±0.1%

Time resolution

1s
