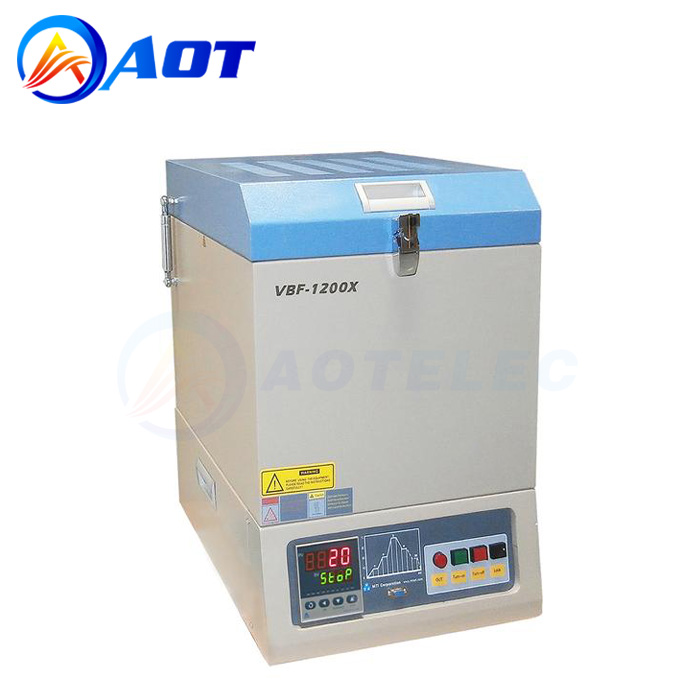

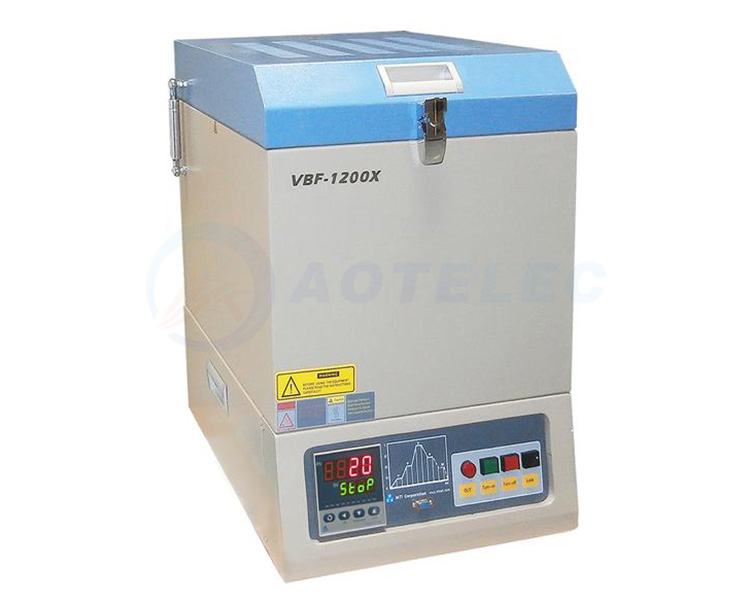

1200C Well Type Crucible Furnace Lab Pit Furnace with 9 Liter Chamber

Product overview:

VBF-1200X uses resistance wire as the heating element, adopts double shell structure and 30 segment program temperature control, K-type thermocouple, and high-purity alumina fiber material is used in the furnace, with the maximum temperature of 1200 C, continuous working temperature of 1100 C, and temperature control accuracy of ±1 C. The furnace has the advantages of uniform temperature field, low surface temperature, fast temperature rise and fall, energy saving, etc. It is an ideal product for universities, research institutes, industrial and mining enterprises to do high-temperature sintering, metal annealing, and quality testing.

Main Features:

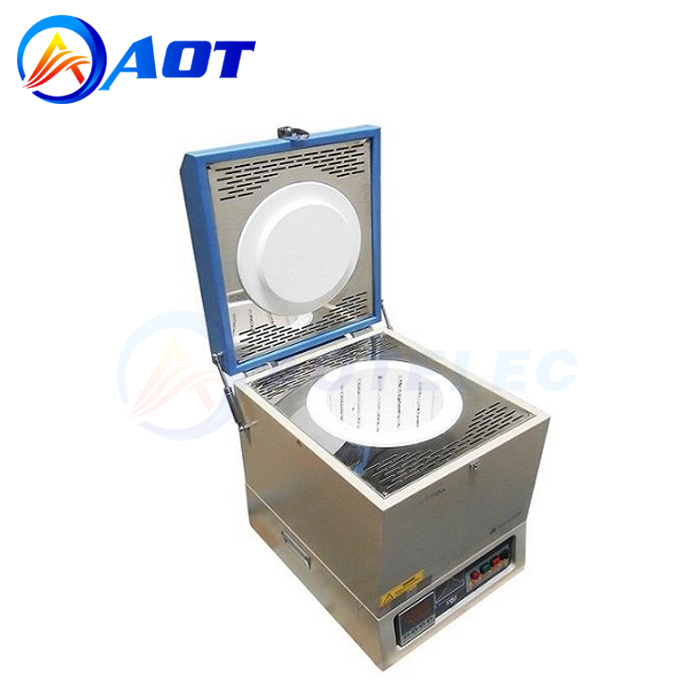

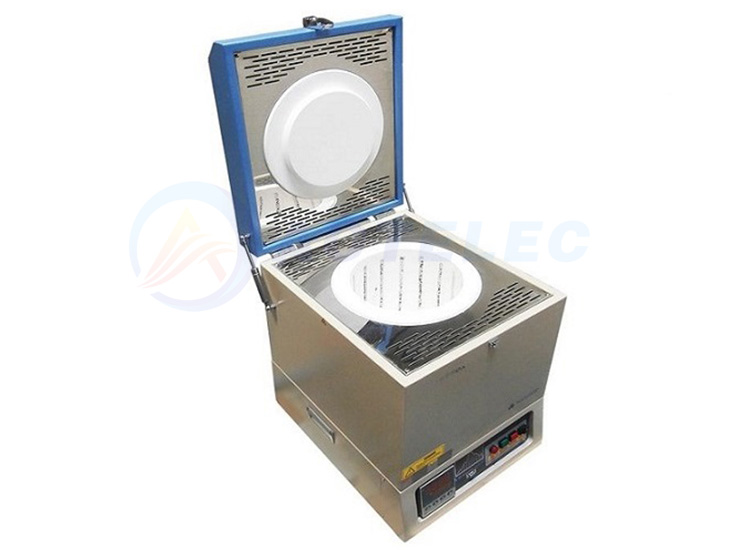

1. The upward swing furnace door structure is convenient for customers to set out and take samples

2. The furnace is made of high-purity alumina fiber, which can minimize energy loss

3. The furnace surface is coated with high-temperature aluminum oxide coating imported fromUSA, which can improve the heating efficiency and service life. It is equipped with overheating and disconnection protection, and has the function of opening the door and powering off.

4. The refractory bricks installed at the furnace bottom can prevent the furnace lining from wearing

Specifications
