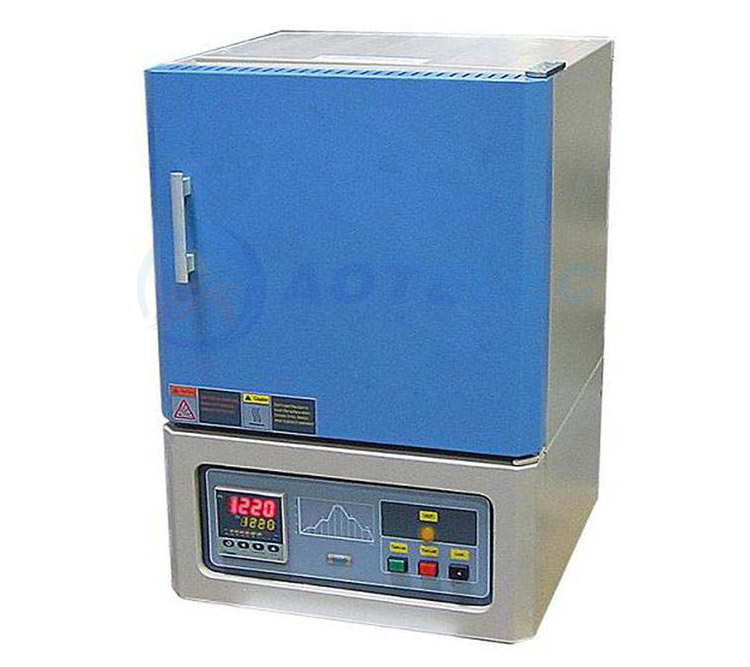

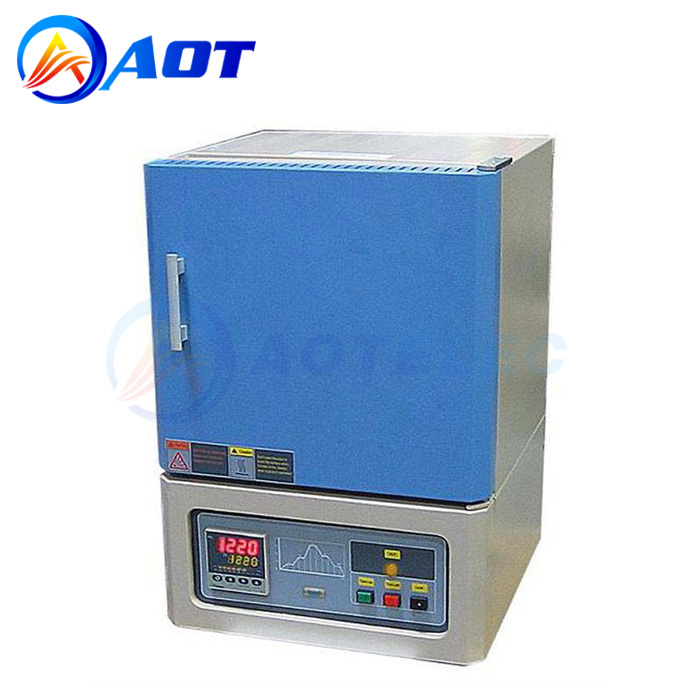

Bench-Top High Temperature Muffle Furnace 1700C Lab Box Furnace

Model: AOT-KSL-1700X-8L
Continuous Working: 1600C
Accuracy: ±1C
Heating Rate: 0~20°C / min
Product description: AOT-KSL-1700X-8L is a 1700C 8L bench-top muffle furnace. The furnace consists of high-quality alumina fiber bricks and MoSi2 heating elements with a chamber size of 200mm*200mm*200mm. It is a perfect
INQUIRY

1700C High Temperature Box Furnace Lab Muffle Furnaces

Main Features:

1. The furnace material adopts high purity alumina fiber, which can minimize the energy loss;

2. Furnace surface coated with American imported high temperature alumina coating can improve heating efficiency and service life;

3. With overheat and break coupling protection, and a door power off function;

4. Using 1700 grade silicon molybdenum rod, the highest temperature can reach 1700 degrees.

Specifications

Product name	Box Furnace / MuffleFurnaces
Model	AOT-KSL-1700X-8L
Voltage input	220V 50Hz, 110V optional
Power	5200W
Continuous working temperature	1600 Centigrade
Max working temperature	1700 Celsius
Heating area	200mm200mm200mm
Suggest heating rate	Room temperature to 1400C≤ 10C/min ; 1400-1600C≤ 5C/min; Above 1600C≤ 2C/min;
Temperature accuracy	+/- 1C
Heating element	MoSi2 heating rod (6pcs)

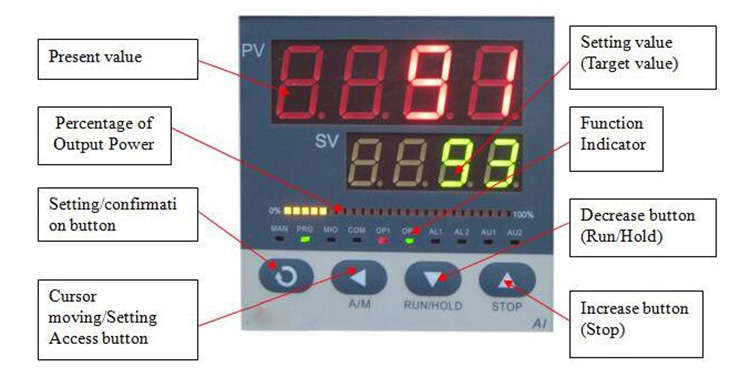

Temperature control	PID automatic control
Programable	Intelligent 30 segments programmed
Dimension	550mmL660mmW800mmH
Weight	125 KG
