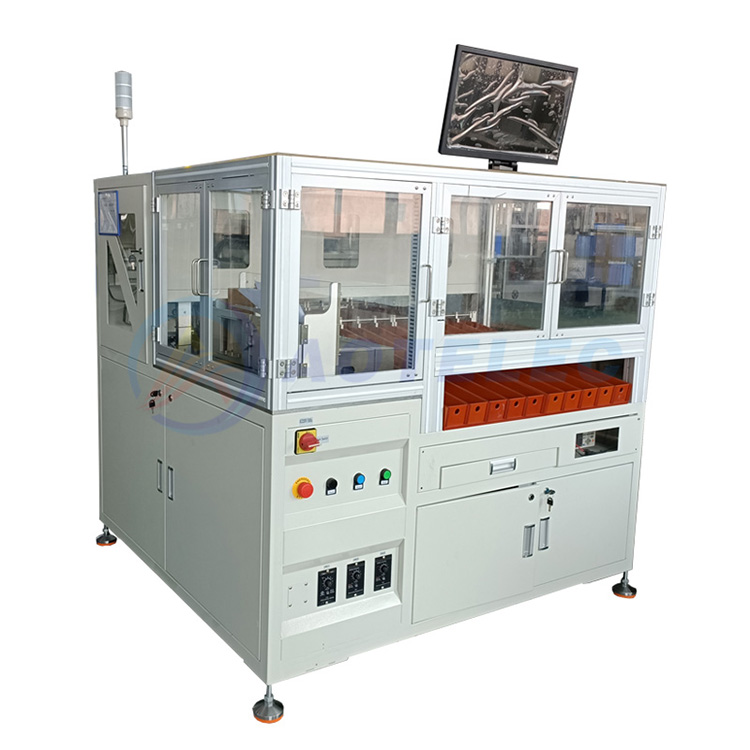

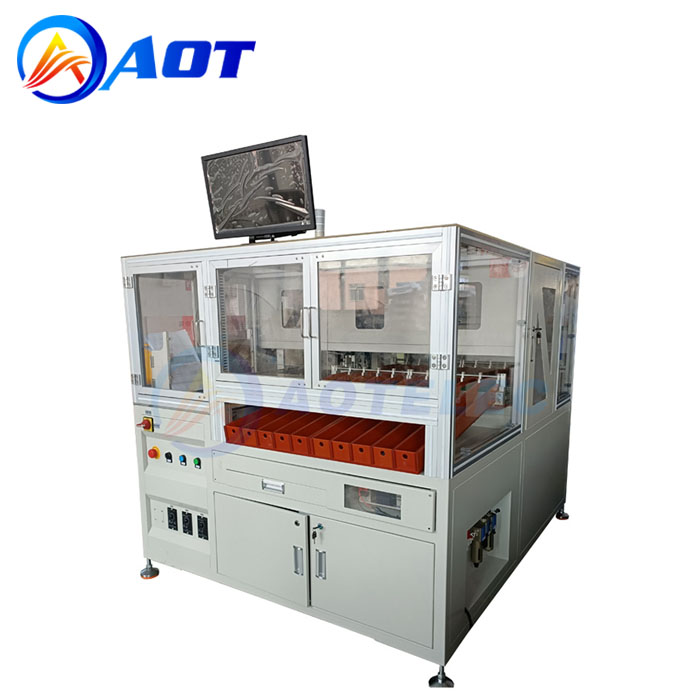

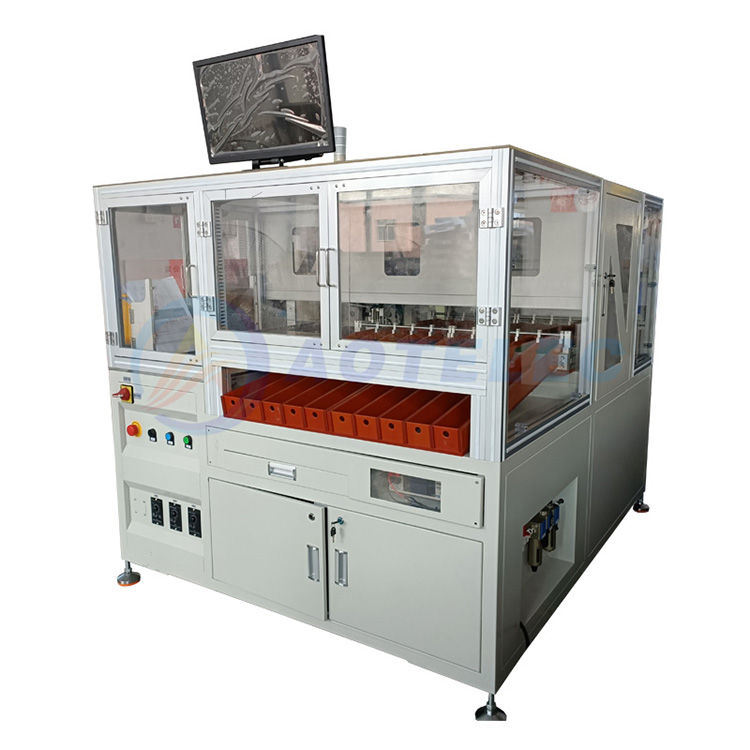

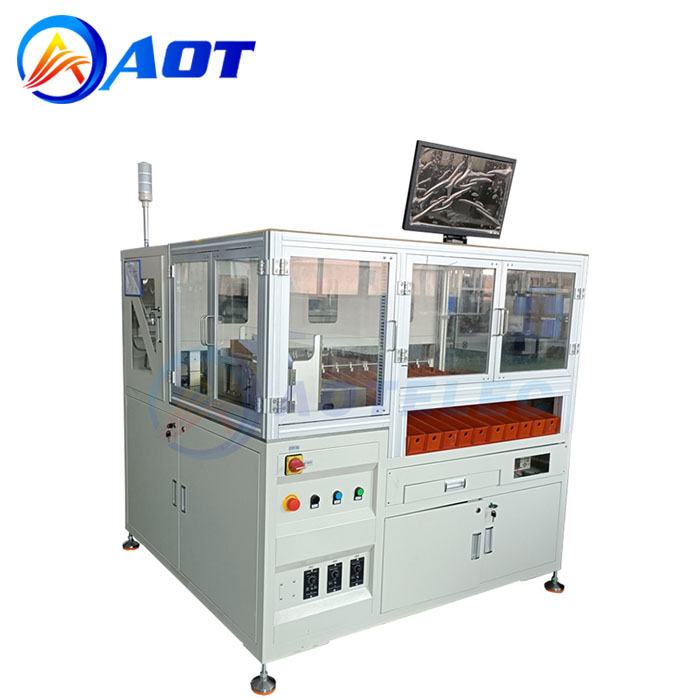

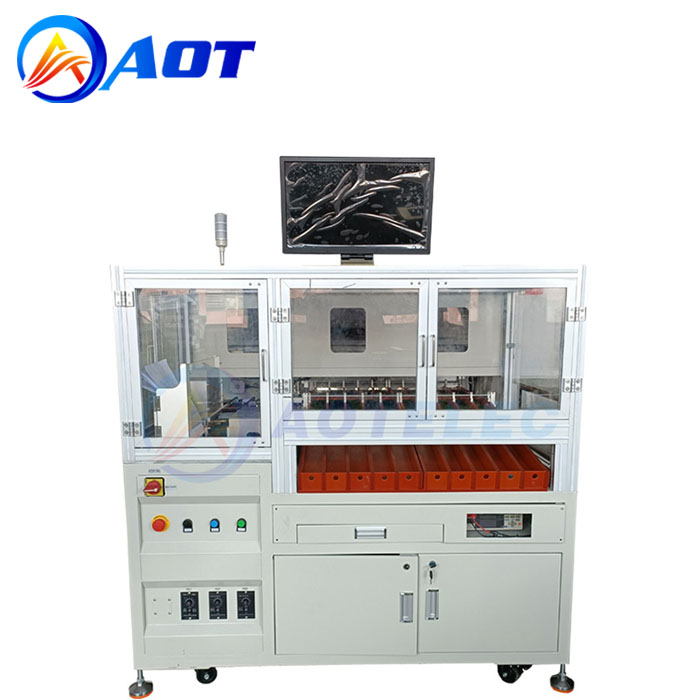

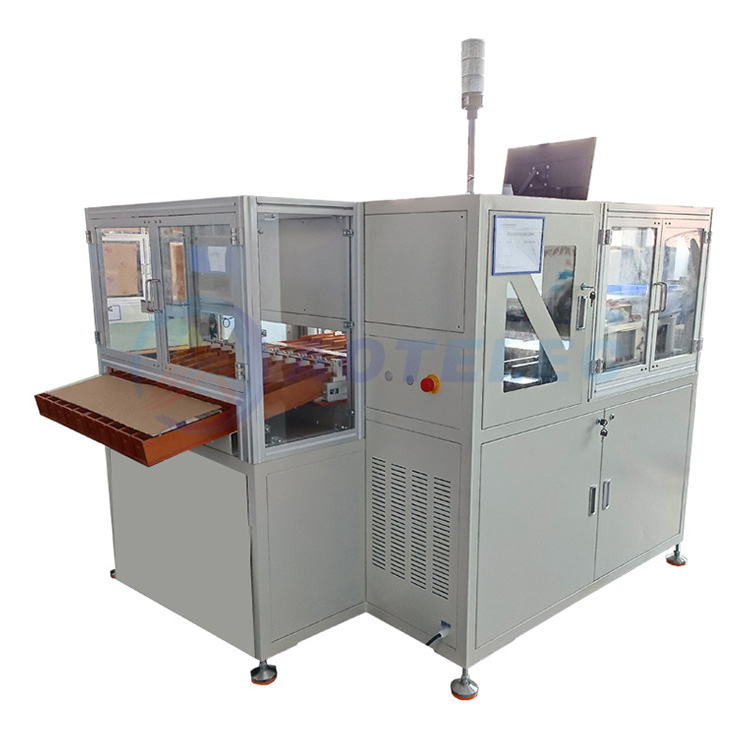

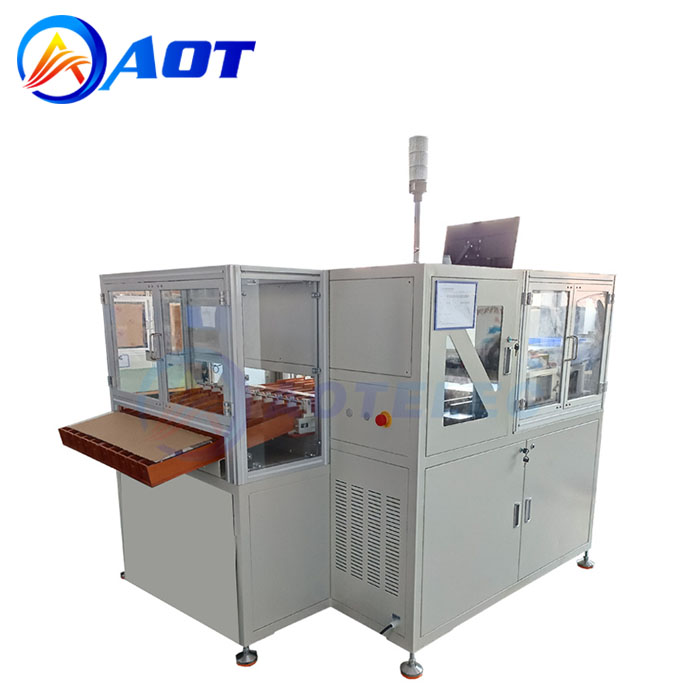

18650 Automatic Sorting Machine for Battery Pack Assembly

18650 Automatic Sorting Machine for Battery Pack Assembly

  • Model: AOT-ST-20C
  • Channel No.: 20 Channels
  • Optional: Code Printer and Reader
  • Warranty: 1 Year
  • Product description: 20 channels automatic 18650 battery sorting machine is an automatic device for automatic testing the voltage and internal resistance.
  • INQUIRY

18650 Cylindrical Battery Sorting Machine

Model:AOT-ST-20C


1 System Overview

20 channels automatic feeding and sorting machine is an automatic device for automatic coding of cells and testing the voltage and internal resistance. The level of each battery cell is calculated according to the software setting of the host computer, and different grades of batteries are transferred to different channels according to the determination result, thereby achieving automatic sorting of battery products.


The automatic sorting equipment is composed of a feeding mechanism, an automatic coding device, a testing mechanism, an automatic sorting, and a receiving mechanism.


The machine system designs and develops the upper computer software according to the user's requirements, and automatically sorts and collects the battery cores into their corresponding channels according to the set group information.


2 Technical Parameter

Power source

AC220V±10% 50Hz

Power Consumption

≤3KW

Compressed air

0.5~0.8Mpa

Application

18650 battery automatic sorting, optional for 32650/21700/26650

Sorting Channel

20 channels

Open circuit voltage

Accuracy +/-0.01% rdg, display resolution 0.1 millivolt

AC internal resistance

Accuracy +/-0.5% rdg, display resolution 0.1 millivolt

Equipment capacity/speed

About 6500pcs-6800pcs

NG equipment failure rate

≤ 2%(Failure caused only by equipment)

Humidity

≤85%

Working temperature range

25℃±5℃

Computer

1 set

Probability of product damage

≤0.1%

Printer

Optional for factory

Code reader/ Scanning device

Optonal

Maximum size of equipment

L1930mm*W1650mm*H1500mm

Weight

400kg

18650 Battery Sorting Machine Overview

Design 20 Channels Sorting Machine for 18650
