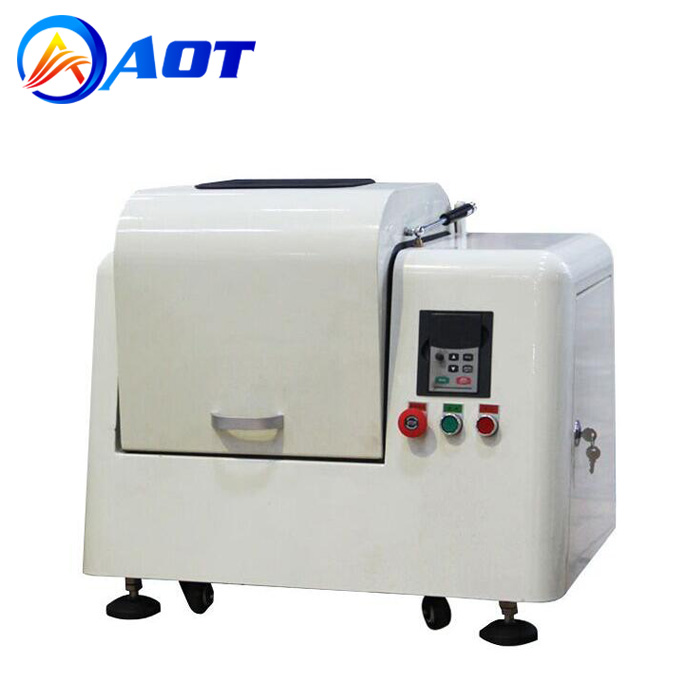

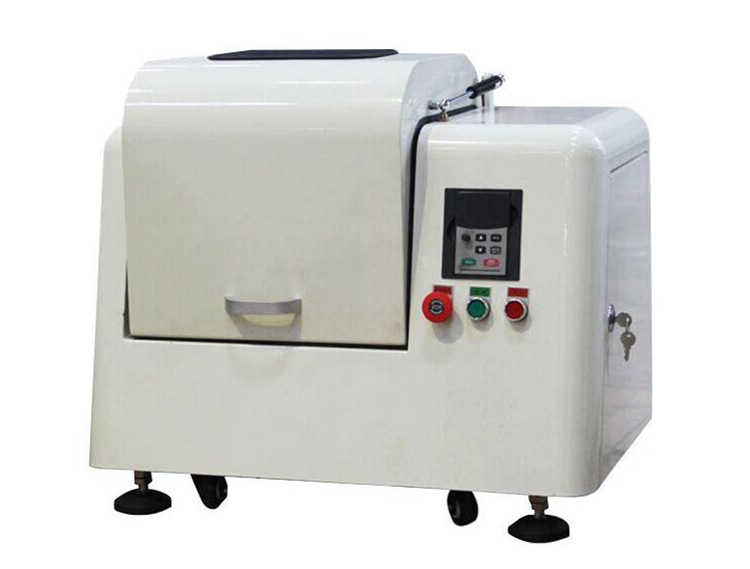

2L Oil Seal Mute Planetary Ball Mill for Kinds of Materials Grinding

Model: AOT-PBM-2L
Capacity: 500mlx4 jar
Type: Vertical Planetary Mill ball
Usage: Grinding nanopowder
Product description: This 2L Planetary Ball Mill has 4*500ml Mixing Jar, it is mixed, fine grinding, sample preparation, dispersion of mano material,
INQUIRY

Description

Planetary ball mill is mixed, fine grinding, sample preparation, dispersion of mano material,

new product development and small batch production of high technology materials necessary device.

The product has the advantages of small volume, complete function, high efficiency, low noise,

scientific research units, universities, corporate laboratories to obtain micro particles of sample

(each experiment can also get four samples) the ideal equipment is equipped with vacuum ball

milling tank, under the vacuum state grinding specimen.

Usage

For higher and junior colleges, scientific research units and enterprises laboratory fast in batches of sample grinding to colloidal fineness (minimum of up to 0.1 M), and for mixing, homogenizing and dispersion; widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, cosmetics, environmental protection and other research and industry sector.

Features

1. With small size, light weight, low noise.

2 can be operated continuously, one-way running, automatic positive and reverse continuous and regular operation.

3 ball mill can be dry grinding, wet grinding, vacuum grinding, protection of the atmosphere.

4 planetary ball mill main belt tightness adjustable, long-term use is not easy to slip, greatly extended the service life.

Name	2L Planetary Mill Ball
Model	AOT-PBM-2L
Capacity	0.5*4=2L
Style	Planetary
Grinding ways	Dry grinding /wet grinding/High energy alloyed grinding/vacuum grinding low temperature grinding for optional
Loading and unloading method	Intermittent type
Transmission mode:	Gear drive
Speed control mode	Frequency conversion speed regulation
Control system	Frequency conversion control system, touch screen control system
Speed rate(r/min)	2:1
The revolution speed(r/min):	5-400
Rotation speed(r/min):	10-800
Bite:	4 bites
Rated voltage(V):	220
Rated power(W):	1500
Frequency(Hz)	50
Long run time(h):	100
Run time(h):	0-9999
Multi section speed setting:	7 section
Feed particle size(mm)	<15mm,Hard material <3mm
Grain size(μm):	0.1μm,or 100nm

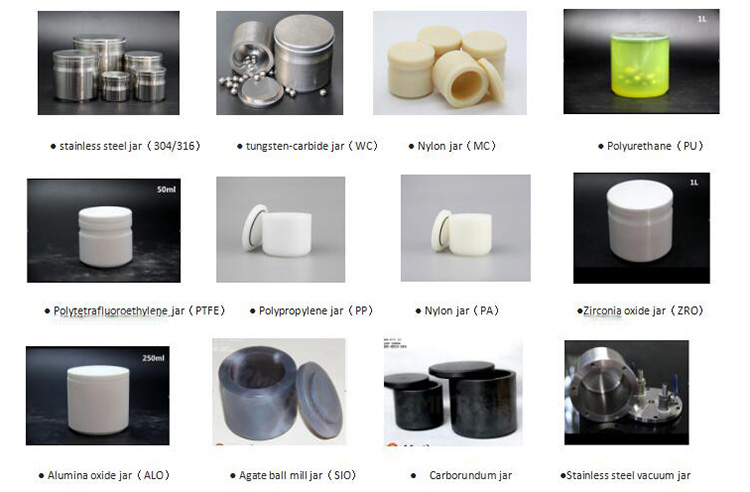

Ball mill material	Agate, zirconia, alumina, hard alloy, stainless steel, high chrome steel, nylon, PP tank, PTFE, polyurethane, custom

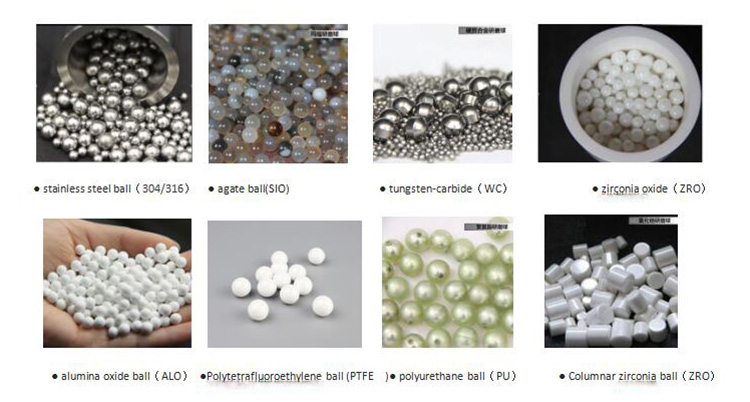

Ball size(mm):	0.5,1,2,3,5,7,10,15,20
Ball ratio:	(2~10):1
Net Weight:	80KG
