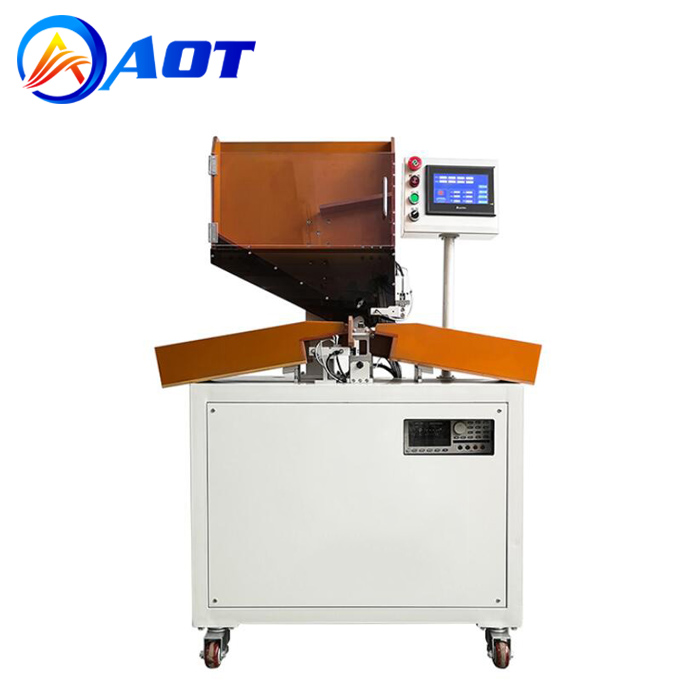

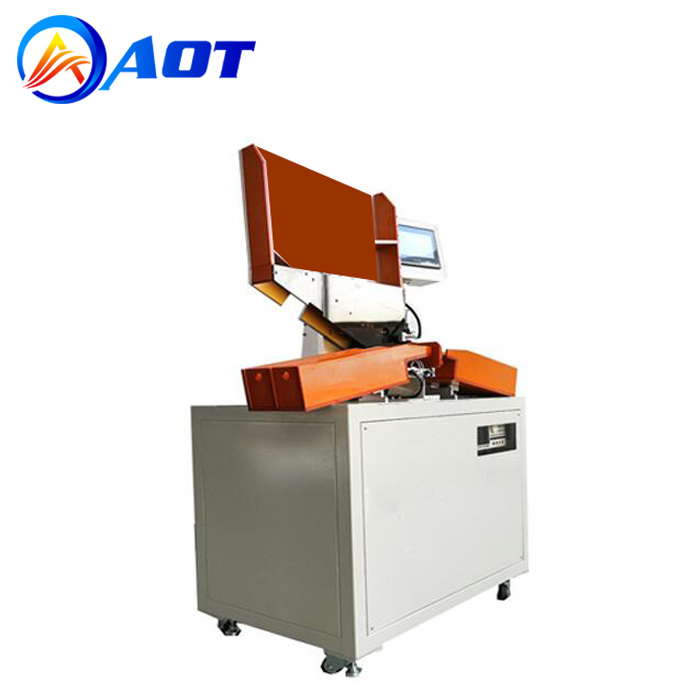

5-Channel Automatic Cylindrical Cell Sorting Machine for Lithium Battery Pack Manufacturing

  • Model: AOT-ST-05C
  • Application: 18650/21700/26650/32650
  • Sorting Speed: 4200pcs/hour
  • Origin: China
  • Product description: This 18650 battery cells automatic sorting machine is mainly used for battery pack manufacturer, it can also be customzied for 21700 cells, 26650 and 32650 batteries.
  • INQUIRY

5 Channel Automatic Cylindrical Battery Sorting Machine for Lithium Battery Pack Manufacture



Features

1.Products with high precision internal resistance,Voltage,automatic test system.

2.The device is set according to the settings Internal resistance voltage,

3. Accurate delivery of cores to designated gears.

4 .Hopper put in 500 pcs High production efficiency easy to operate.

5.Stick Barley paper 4200pcs/Hour high stability.

6.Can be docked with automatic veneer cushion machine,Saving labor.



Specifications

Voltage

AC220V,50Hz

Compressed Air

0.4-0.7Mpa

Internal Resistance

HK3561, Hioki3561 optional

Measurement of Internal Resistance

Range:0-60mΩ

Accurace:± 0.5% rdg

Resolving power: 0.1mΩ

Internal Pressure Measurement

Range:0-10V

Accurace:± 0.015% rdg

Resolving power: 0.1mV

Size(L x w x H)

980x520x1360mm

Production Efficiency

4200PCS/hour, single pad 1pcs

Control Device

7 inch Touch Screen

Sorting Speed

60-70PPM



Standard Configuration

Serial No.

Spare Parts

Brand

1

Air Cylinder

SMC,CKD

2

Solenoid Valve

SMC

3

Linear Guide Rail

TPI

4

Electric Relay

OMRON

5

PLC

TouchWin

6

Inductorium

OMRON,SUNX

7

Button

Goncon

9

Pilot Lamp

Goncon

10

Tester

HK3561, Hioki3561 optional
