150mm Electric Roller Press Machine for Battery Electrode Calendering

150mm Electric Roller Press Machine for Battery Electrode Calendering

Model: AOT-ERP-150
Origin: China
Rolling Width: 150mm
Press thickness: 0-2mm
Product description: This 150mm electric roller press machine is mainly used for rolling press of battery electrode sheet, a few precious metal materials like gold and silver, nonferrous materials like copper and aluminum
INQUIRY

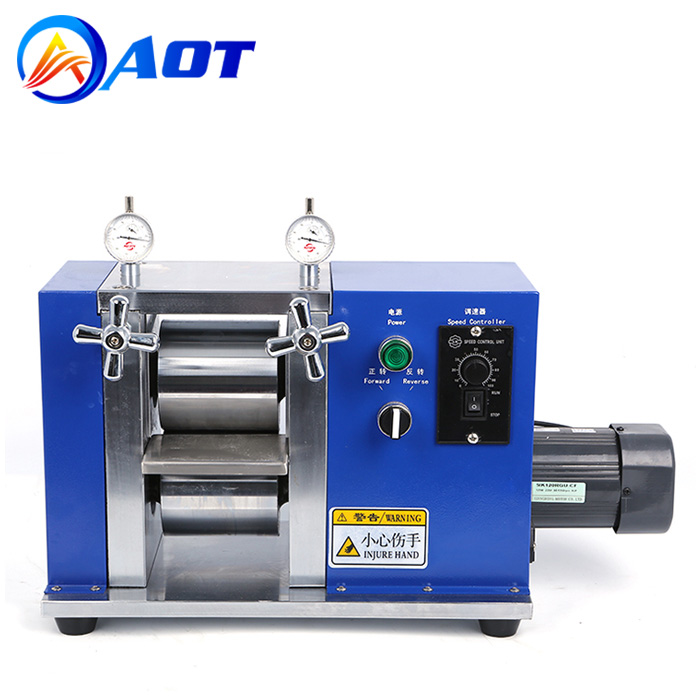

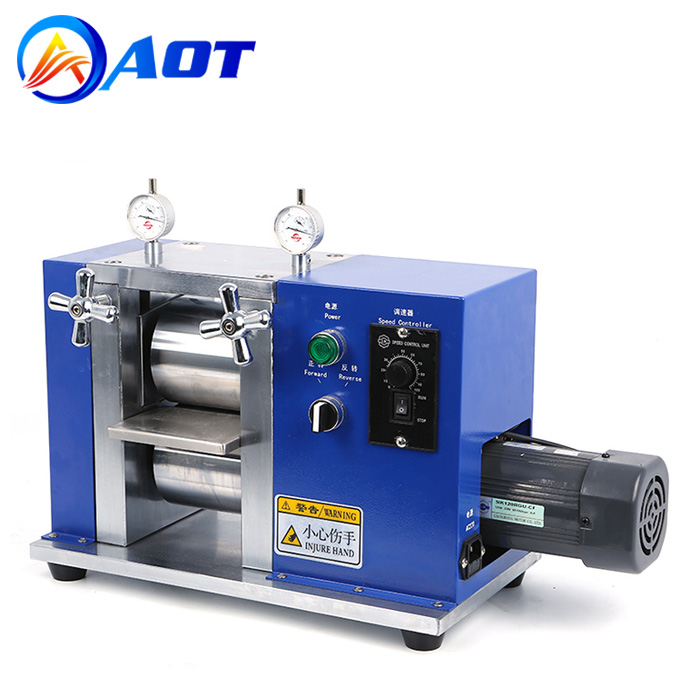

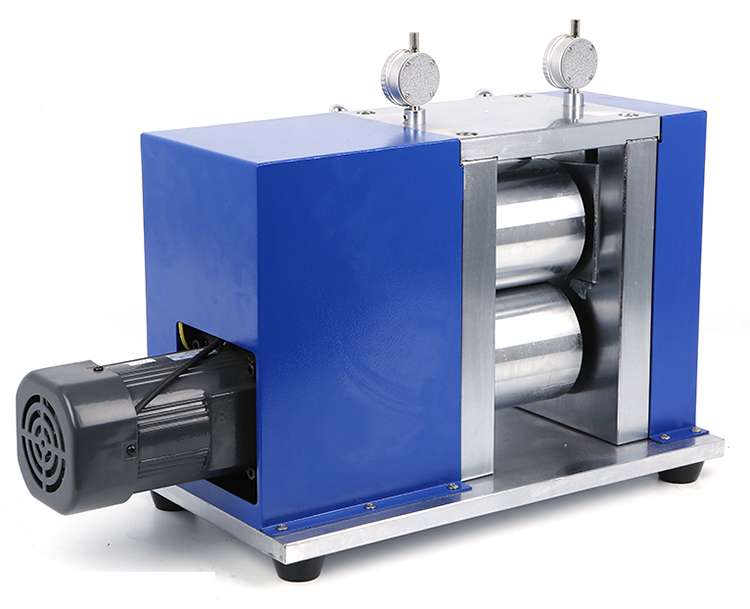

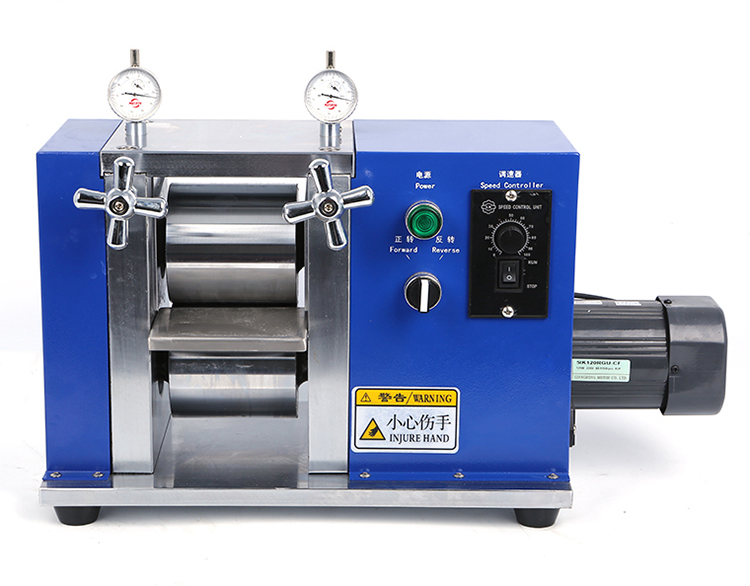

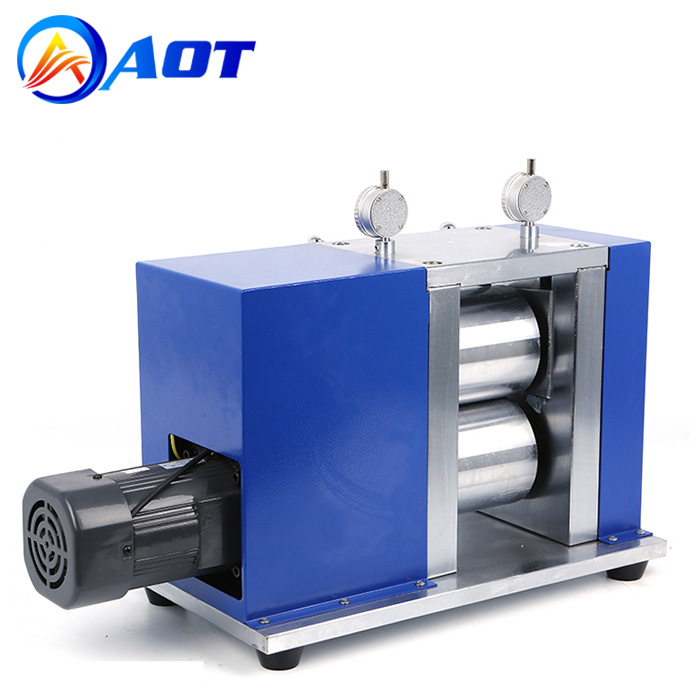

Horizontal desktop roller press machine for battery electrode sheet calendering

This equipment is mainly used for electric rolling press of battery materials, a few precious metal materials like gold and silver, nonferrous materials like copper and aluminum in lab .

Features :
1. Hard chrome plated on surface.Material HRC62.

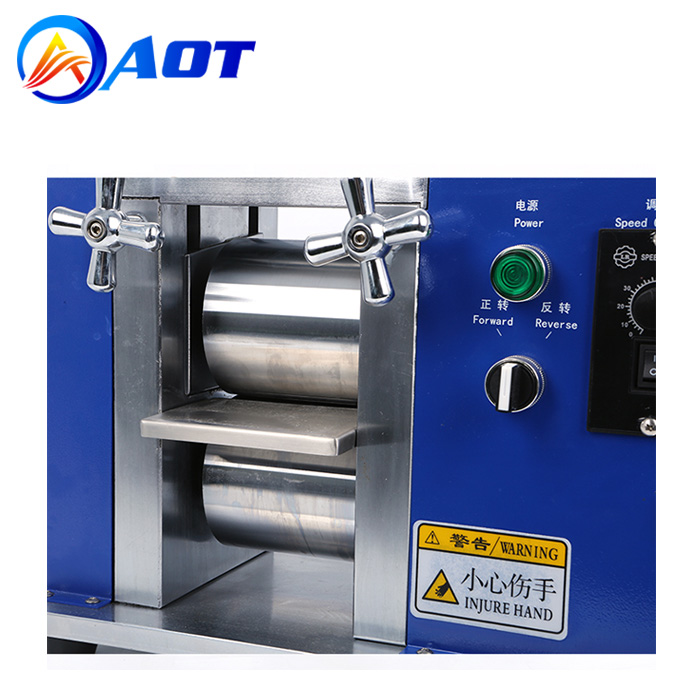

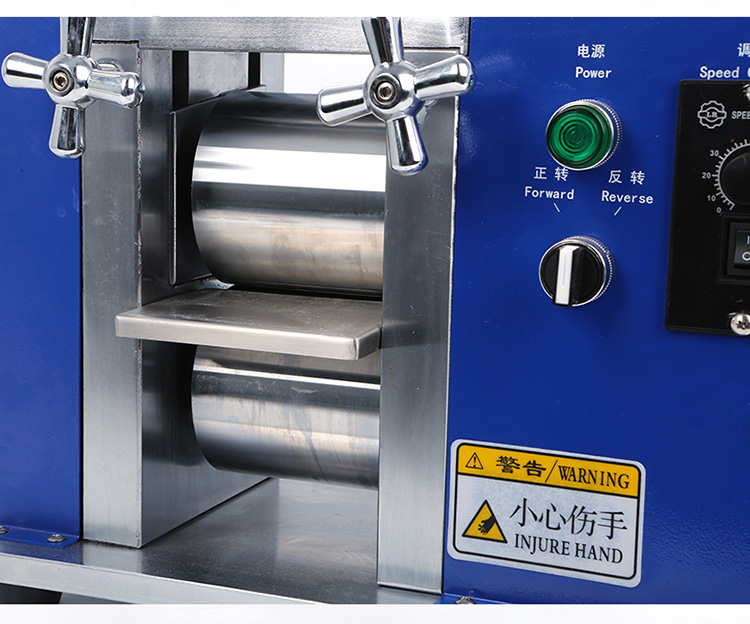

2. Transparent protective plate is designed for safety operation .
3. Press gap is adjustable .
4. Rolling speed , press thickness is adjustable .

Application :

Battery lab

Battery research

Lithium ion battery lab

Material research

Trial-production

BATTERY LAB EQUIPMENT: Electric Rolling Press Machine

Item Name

battery material presser

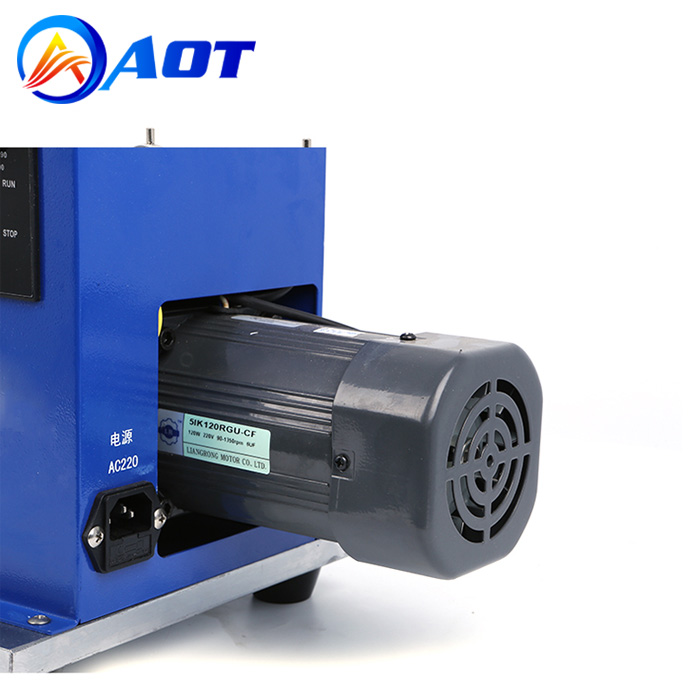

Watt

120W

Voltage

220V

Roller material

HRC62

Roller diameter

96mm

>0.8um

Press gap

0-2mm adjusted

Rolling width

0-150mm adjusted

Rolling speed

0~40mm/s adjusted

Size

L685mm*W255mm*H375mm

Weight

75KG

Application Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.

1 Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property

of the materials. Here are some results from our test:

Electrode	Size	Original thickness	Finished thickness
LiFePO4 double sides	W50mm x L260mm	0.205mm	0.09mm
LiMn2O4 double sides	W50mm x L260mm	0.205mm	0.09mm
Copper foil + graphite (single side)	W75mm x L240mm	0.09mm	0.04mm

Sample testing is available upon customer's request

High Precision <a href=https://www.aotbattery.com/product/Electric-Battery-Electrode-Sheets-Calendering-Machine.html target='_blank'>electric roller press</a> Machine for Battery Electrode Calendering
