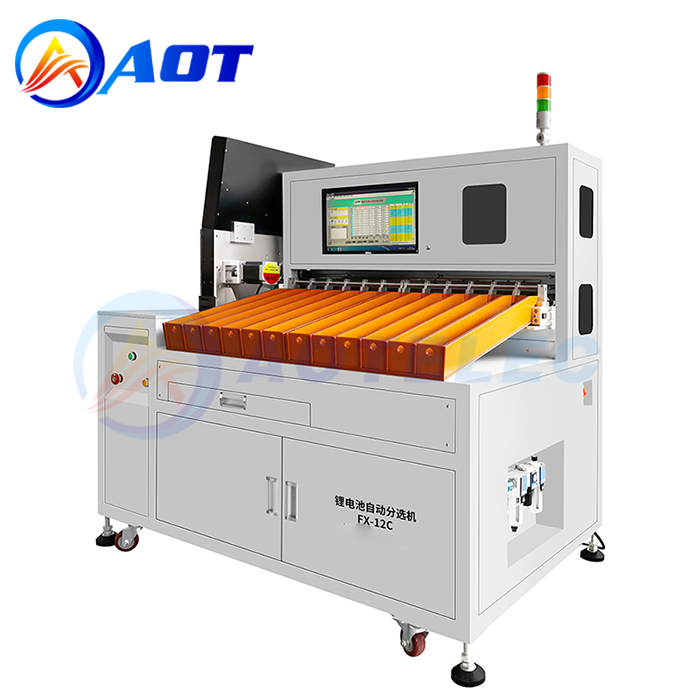

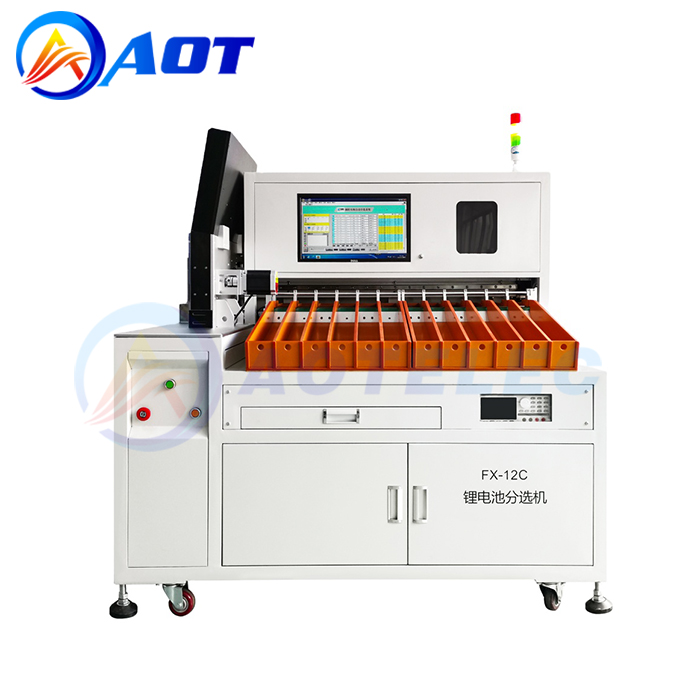

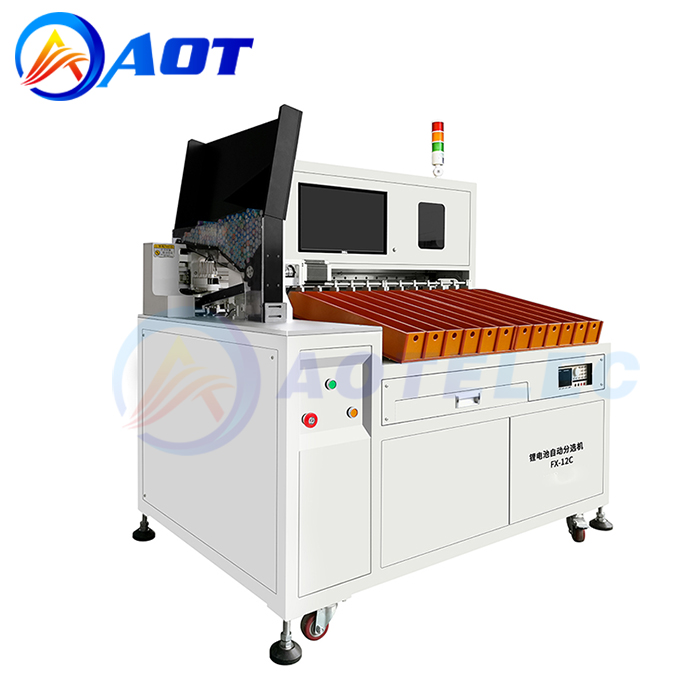

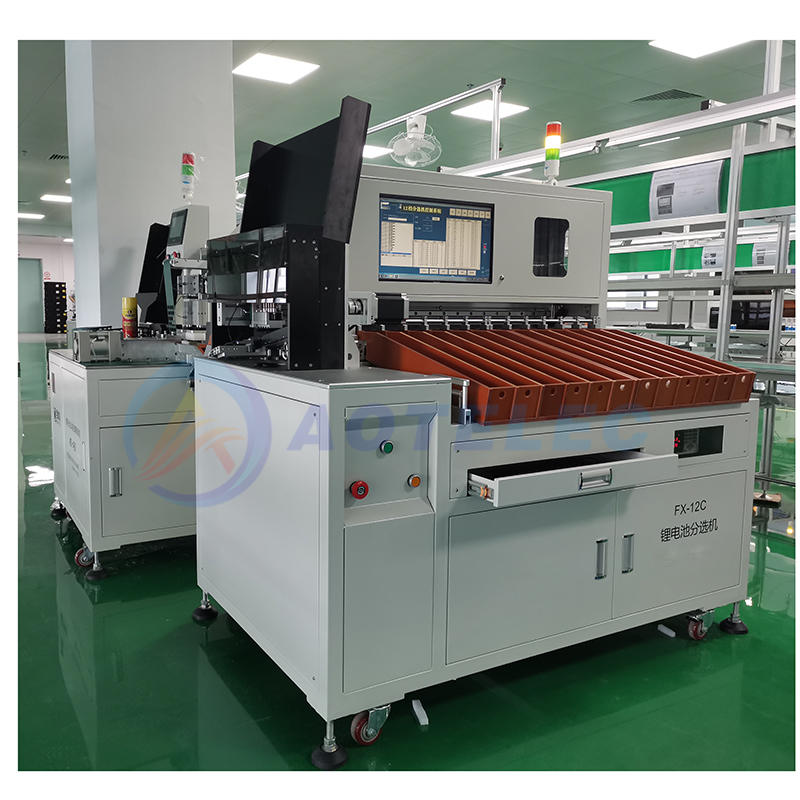

12 Channel 18650 26650 32650 21700 Automatic Cylindrical Battery Sorter Sorting Machine

12 Channel 18650 26650 32650 21700 Automatic Cylindrical Battery Sorter Sorting Machine

Product name: Battery Sorter Machine
Model Number: AOT-FX-12C
Input Voltage：AC 220V+10% 50Hz
Control System:PC + industrial control
Product description: Product is equipped with high-precision internal resistance, voltage and automatic test system. According to the set internal resistance voltage value, the cell can be accurately sent to the specified
INQUIRY

1、Product is equipped with high-precision internal resistance, voltage and automatic test system. According to the set internal resistance voltage value, the cell can be accurately sent to the specified gear.

2、The test data is stored in batches, with the function of saving. The test voltage and internal resistance data correspond to each other. The data can be saved permanently and downloaded and extracted.

3、Large hopper, 500 pcs can be put in one time, high production efficiency, application scope: cylindrical lithium battery (customizable).

4、12 channels have fast sorting speed and high stability, which can effectively screen out the cell consistency of each channel.

5、It can be connected with the automatic highland barley paper pasting machine to save labor greatly.

Product name	Lithium battery Sorting machine
Model	AOT-FX-12C
Control system	PC + industrial control
Input voltage	AC 220V+10% 50Hz
Feeding mode	Double position whole box feeding
Equipment air pressure	0.6~0.8Mpa
Work efficiency	6000pcs 1H
Sorting speed	≥100PPM
Scope of application	Cylindrical lithium battery (model can be customized)
Size(LxWxH)	1450x1 100x 1650mm
Receiving channel	12 sorting group channels, including one unqualified channel
Voltage measurement accuracy	Range 0-20V, basic accuracy +0.01 %rdg, resolution 0.1mV
Internal resistance detection accuracy	Range 0-30mQ accuracy 士0.5%rdg, resolution 0.1mQ
