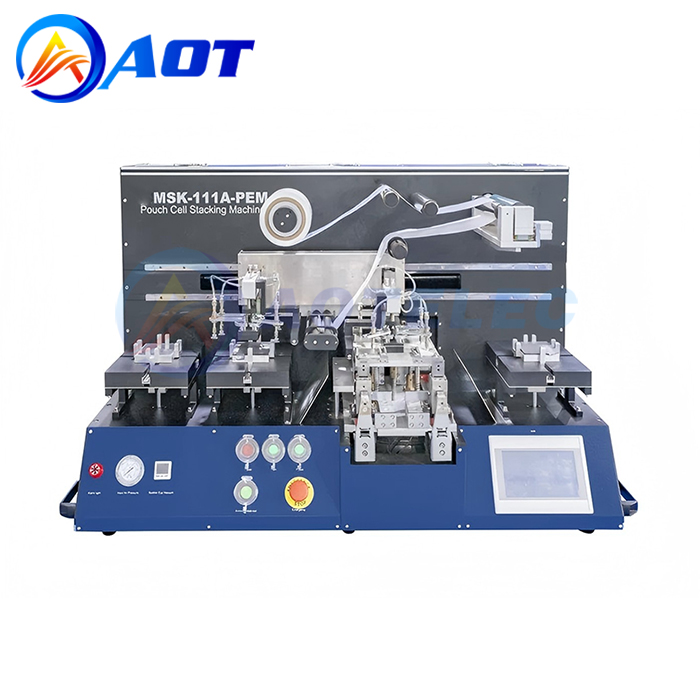

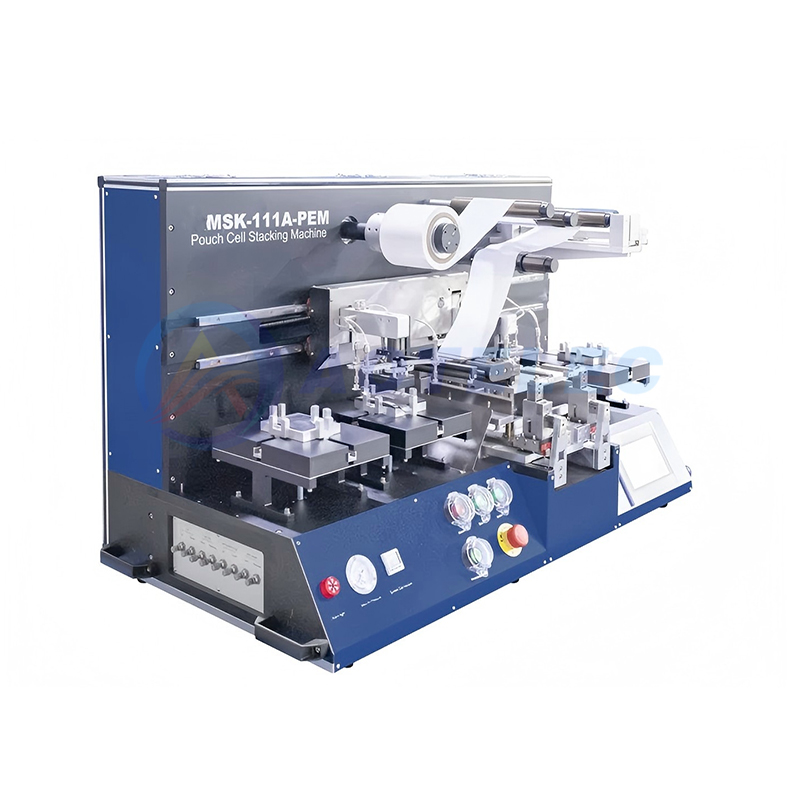

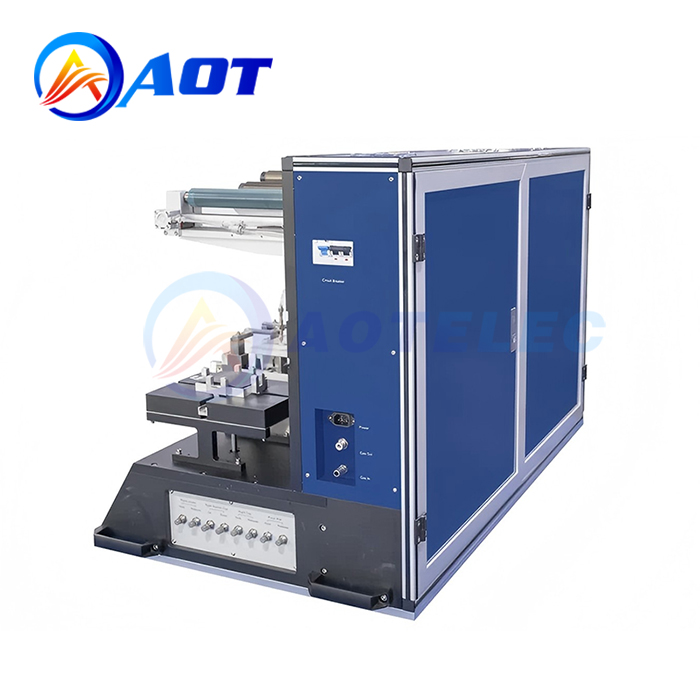

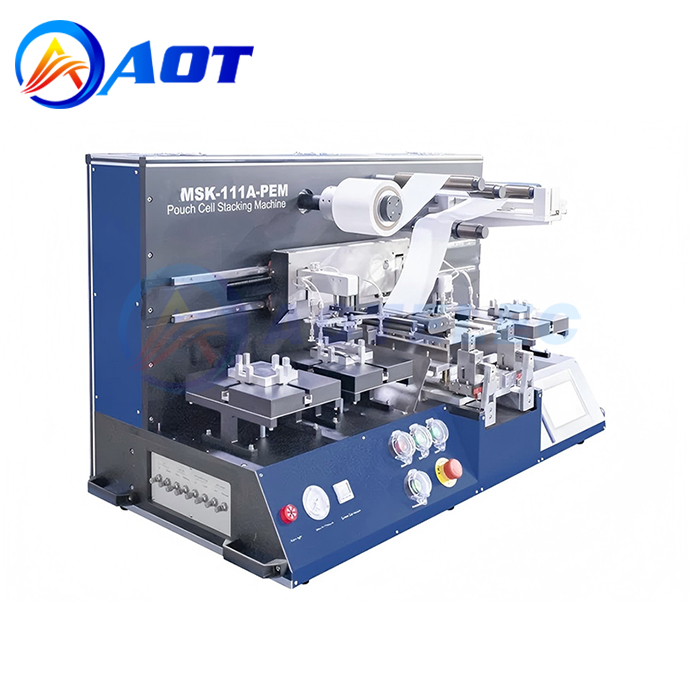

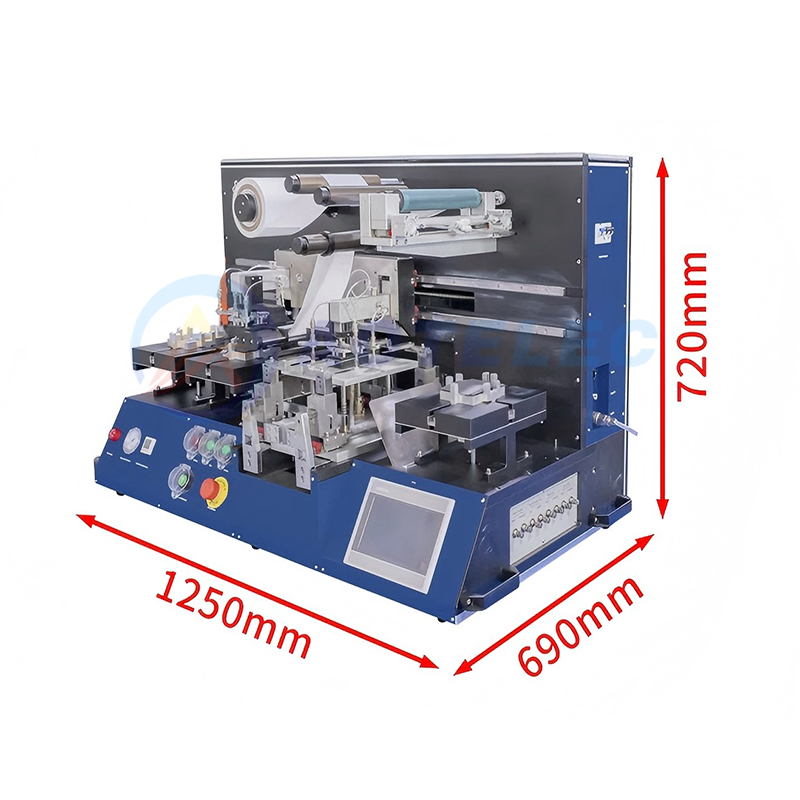

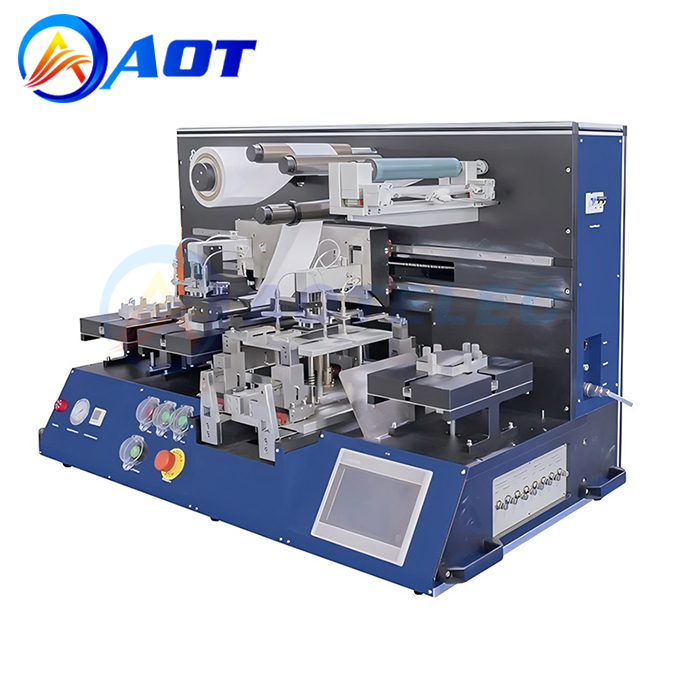

AOT- MSK-111A-PEM automatic stacking machine is a multifunctional stacking device that can be applied to ordinary lithium-ion batteries and metal lithium-ion batteries with Z-shaped separators, as well as solid-state batteries with sheet structure separators. The desktop structure design of this device can be placed in a glove box for use. It is an automated equipment suitable for laboratory or small-scale production.

Advanced Features:

1. One machine with three uses, capable of stacking ordinary lithium-ion batteries, metal lithium-ion batteries, and solid-state batteries, and the three functional programs can be freely switched;

2. The thinnest lithium metal that can be stacked up to 30 μ m is non adhesive and has no obvious indentation;

3. After completing the stacking process, manually remove the battery cells using a fixture and directly apply adhesive to the fixture;

4. Equipped with a built-in vacuum pump as standard, but can also choose to use an external one;

5. The number of laminations can be freely set;

6. Adopting compatibility design, battery size changes can be achieved through customized molds and adjusting pressure claws, with a wide range of adjustments;

7. PLC control, HMI operation, easy to use and maintain;

8. Can be used inside the glove box (compatible with argon and nitrogen)

Technical Parameter:
