4680 Cylindrical Battery Hydraulic Sealing Machines for Cylindrical Cells

  • Product Name: Hydraulic Sealing Machine
  • Driving Force:Manual hydraulic pressing up to 5T
  • Brand Name: AOT-MSK-510L
  • Product Orgin:China
  • Product description: MSK-510L cylindrical battery sealing machine is driven by a hydraulic jack to achieve the packaging process of cylindrical batteries.
  • INQUIRY

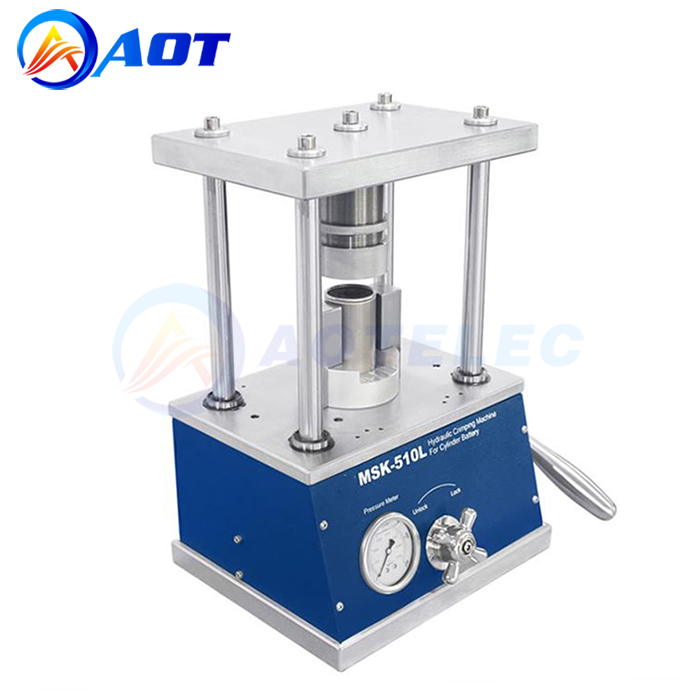

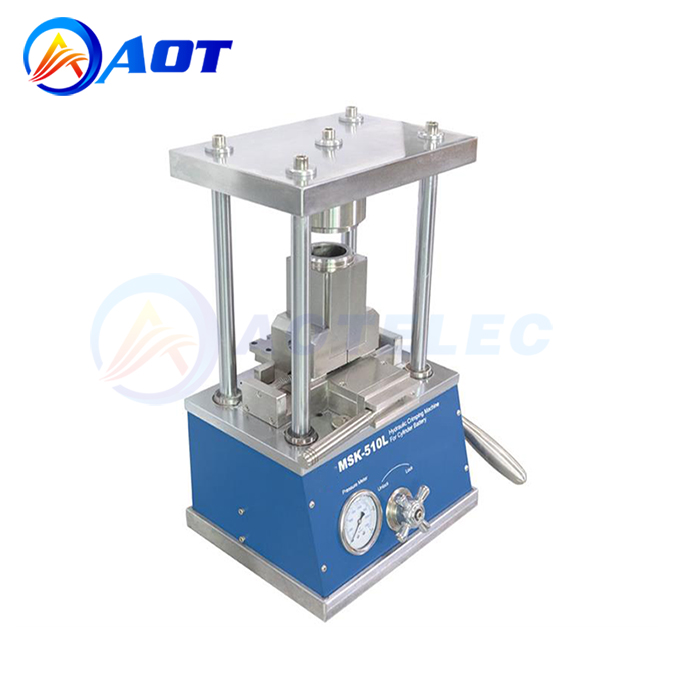

MSK-510L cylindrical battery sealing machine is driven by a hydraulic jack to achieve the packaging process of cylindrical batteries.

The equipment is equipped with a set of standard molds (specific sizes can be customized), which is easy to operate. By replacing the molds, different sizes of cylindrical batteries (such as 3560, 4680, 50100, etc.) can be sealed.



Product Name

Cylindrical Battery Hydraulic Sealing Machine

Driving Force

Manual hydraulic pressing up to 5T

Crimping Pressure

80 kg/cm^2  - 1,000 kg/cm^2 Adjustable

Crimping Distance

Max40mm

Applicable scope

Diameter φ 35mm~ φ 50mm x H15mm~120mm

Operating handle

Shake the front up and down, with an operating force of about 8KG

Sealing Die

Standard with a set of dies, specific dimensions can be customized

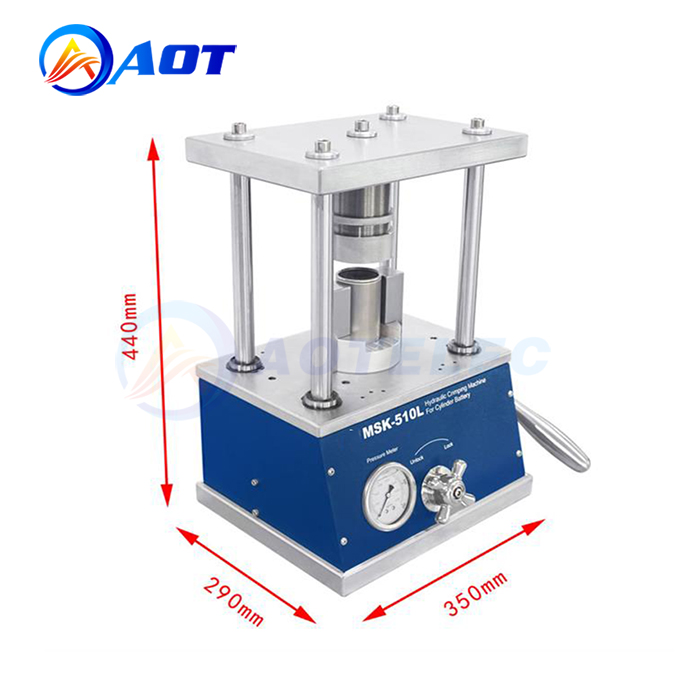

Product Dimensions

L350mm*W290mm*H440mm

Weight

50kg
