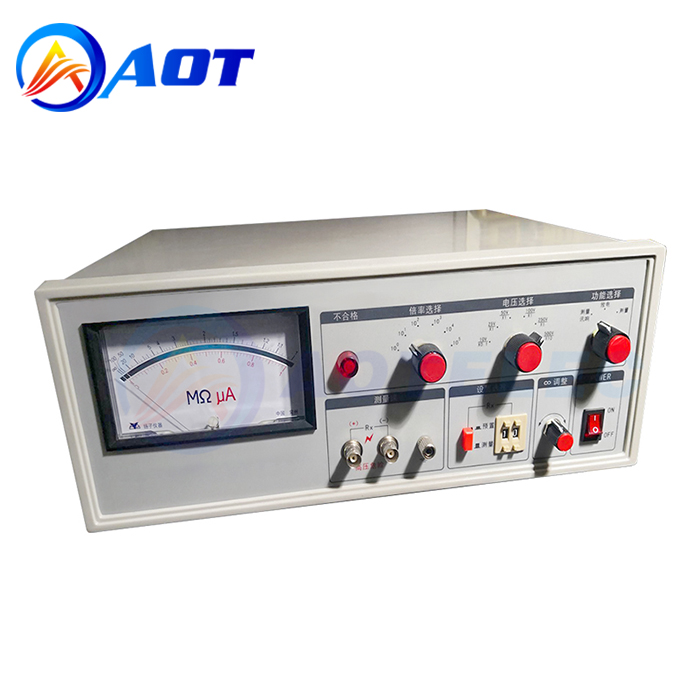

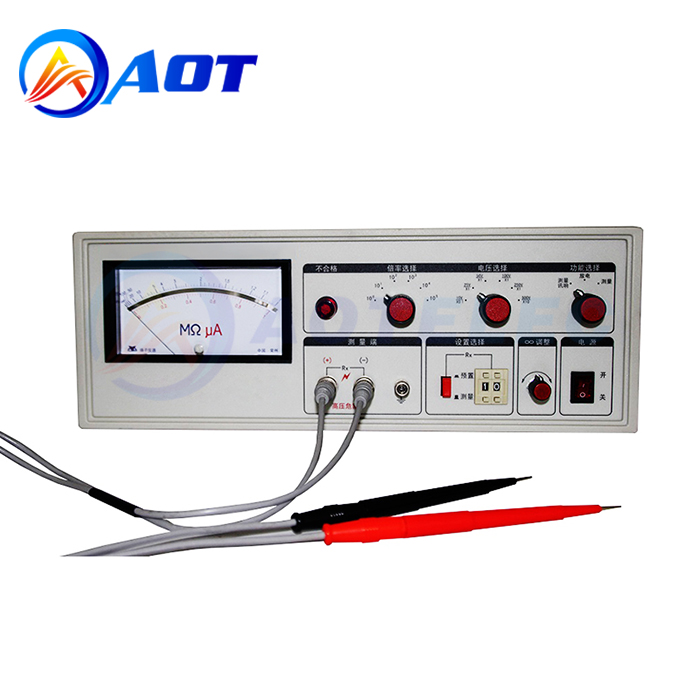

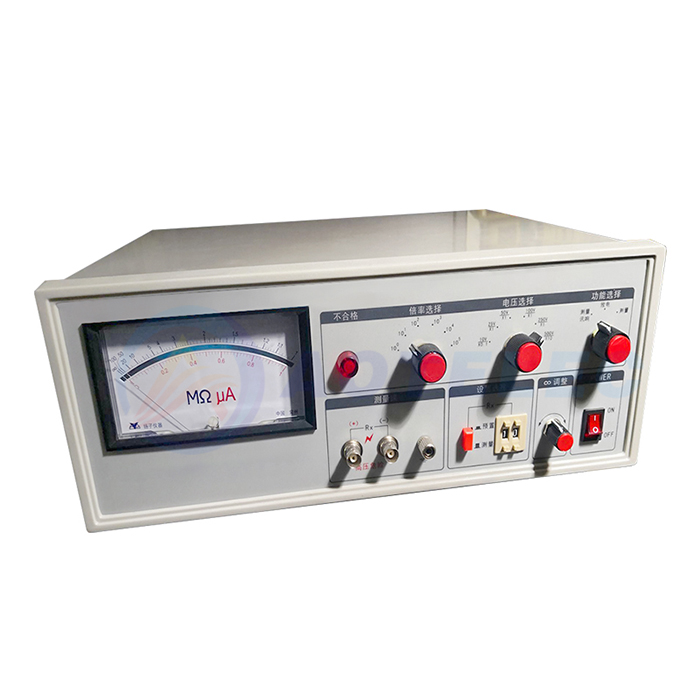

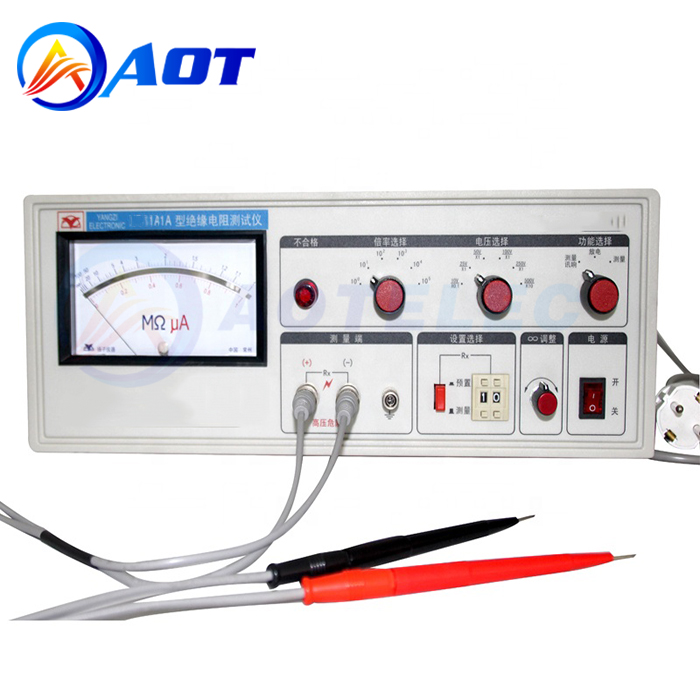

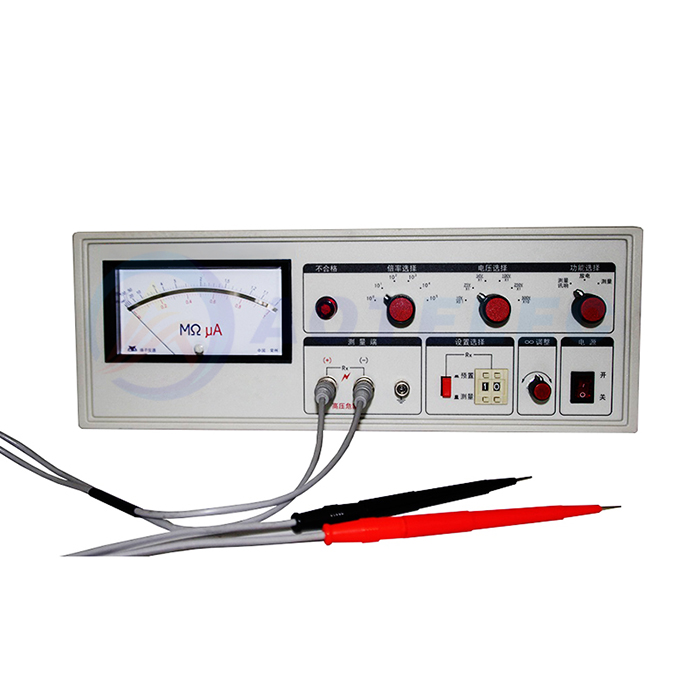

AOT-2681A is a general-purpose insulation resistance tester with fast test speed, wide resistance measurement range, simple operation and direct display of test results.
Specifications：
|
Product name |
Battery Short Circuit Tester |
|
Model |
AOT-2681A |
|
Test Voltage |
10V，25V，50V，100V，250V，500V |
|
Voltage Accuracy |
2% |
|
Measurement Speed |
Resistance≤0.5s
Capacitance 0.5s-10s
|
|
Comparator Function |
Pass and fail,fail alarm |
|
Resistance Measurement Range |
105Ω—1013Ω |
|
Operation Temperature And Humidity |
0℃-40℃ ≤85% RH |
|
Resistance Accuracy |
＜1012Ω 5% ≥1012Ω 10% |
|
Power |
198V-242V AC， 47.5Hz-52.5Hz |
|
Display Form |
Mirror analog panel meter indication |
|
Product size |
380×140×320(mm) |
|
Weight |
7kg |
