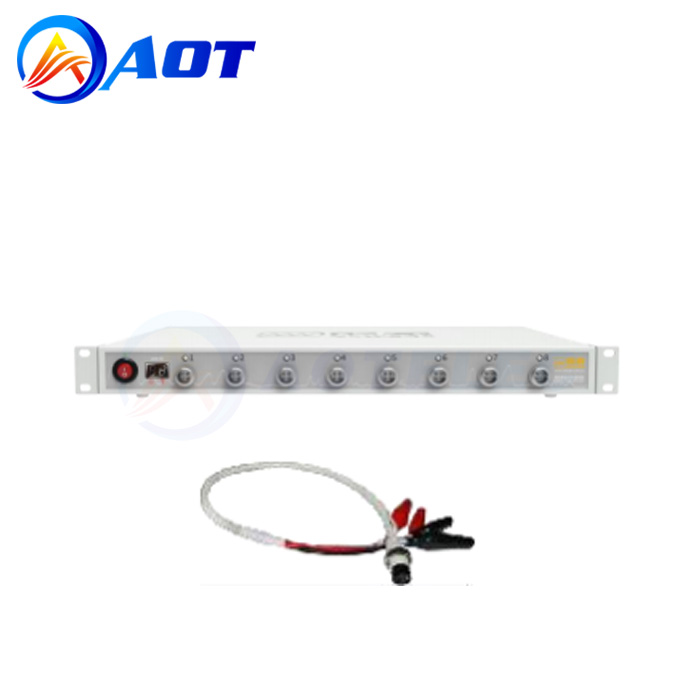

AOT 8 Channels Coin Cell Cycler for Battery Testing

Product Name:Battery Testing Machine
Product Model: AOT-CT-4008Q-5V50mA-HWX
Brand Name:AOT
Product Orgin:China
Product description: This tester is specifically designed for coin batteries with a 5V voltage and 50mA current specification.
INQUIRY

This tester is specifically designed for coin batteries with a 5V voltage and 50mA current specification. It features 8 independent channels and can simultaneously conduct cycle charging and discharging tests. The core supports setting the number of charging and discharging cycles, real-time monitoring of voltage and current, and accurately evaluates the battery's cycle life, capacity degradation, and stability. It uses a high-precision sampling chip, resulting in low test errors. It is equipped with an intuitive operation interface, allowing for one-click test start and automatic data recording.

1. Equipment Model
Coding	CT-4008Q-5V50mA-HWX
2. Indicator Items	Index parameters
Input power supply	AC 220V ± 10% / 50Hz
Input active power	20W
Resolution (AD/DA	AD： 24bit； DA： 16bit
Input impedance	≥ 1GΩ
Energy-saving efficiency	/
Noise	< 55dB(Measurement 1 meter away)
Parallel function	Channel parallel connection is not supported
IP protection level	Protection grade IP20
Channel characteristics	The constant current source and the constant voltage source adopt a double closed-loop structure
Channel control mode	Independent control
Voltage and current detection sampling	Four-wire connection
3. Voltage
Measurement range	10mV~5V
Minimum discharge voltage	-5V
Precision	± 0.01% of FS
Stability	0.02% of FS
4. Current
Measurement range	Range one： 0.1mA；Range two： 1mA；Range three： 10mA；Range four： 50mA
Precision	± 0.01% of FS
Minimum output current	0.2 μA
Constant voltage cut-off current	Range one： 0.1 μA；Range two： 1 μA Range three： 10μA；Range four： 50μA
Stability	0.02% of FS
5. Power
Maximum output power of single channel	0.25W
Precision	±0.02% of FS
Stability	0.04% of FS
6. Time
Current rise time	≤ 1ms (10% ~ 90% of FS)
Charge and discharge conversion time	≤40ms (-90% ~ 90% of FS)
Working step time range	≤(365*24)hour/working steps； Time format support 00 ：00 ：00.000(h： min： s.ms)
Sampling frequency	10Hz（Minimum time interval： 100ms）
7. Operating mode
Charge and discharge mode	Constant current charging and discharging, constant voltage charging and discharging, constant current and constant voltage charging and discharging, constant power charging and discharging, pulse charging and discharging, etc
Cut-off condition	Voltage, current, relative time, capacity, energy, etc
DCIR test	Support
Pulse charge and discharge mode	Constant current mode, constant power mode
Minimum pulse width	500ms
The number of individual pulses	A single pulse working step supports 32 different pulses
Pulse switching	One pulse working step can achieve continuous switching of charging or discharging
Pulse cut-off condition	Voltage, relative time
8. Cycle
Cycle test range	1~65535 times
Single cycle working steps	≤255
Cycle nesting	< 10 layers
9. Protection
Software protection	Power-off data protection, offline testing function, and safety protection conditions can be set. The set parameters include: upper voltage limit, lower voltage limit, upper current limit, lower current limit, etc
Hardware protection	Reverse connection protection, overvoltage protection, overcurrent protection, over-temperature protection, etc

Battery Testing machine

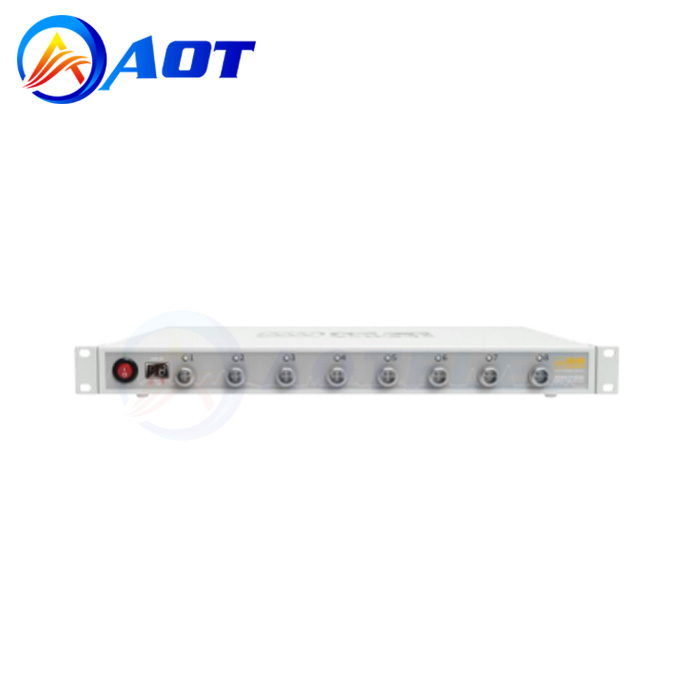

Coin Cell Cycler
