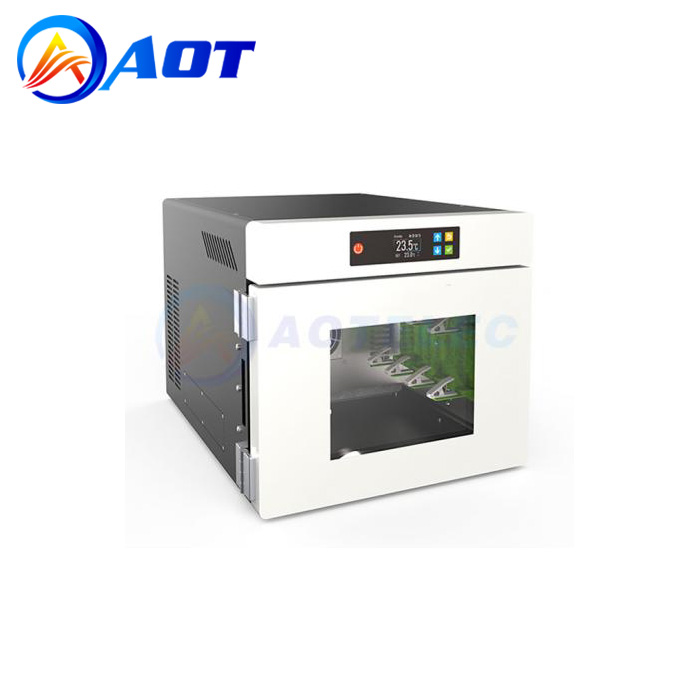

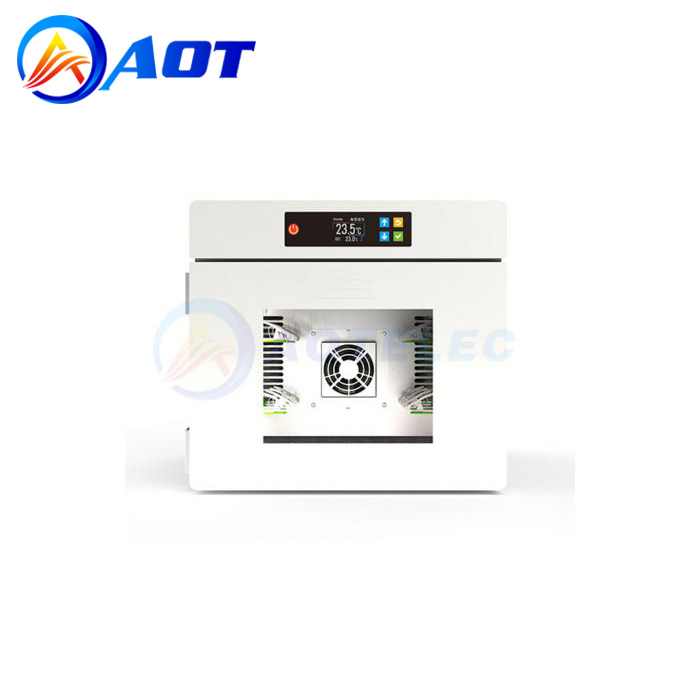

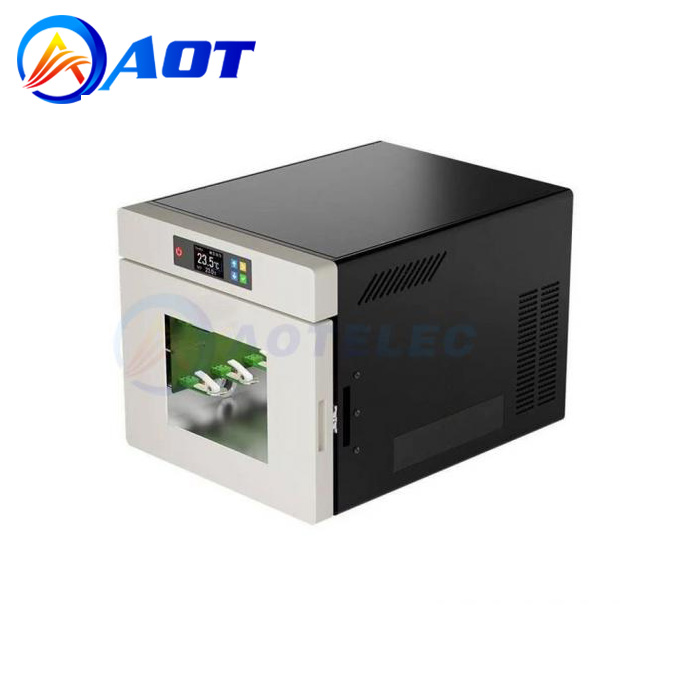

Constant Temperature Test Chamber for Battery Testing Machine Pouch/CoinCell

Constant Temperature Test Chamber for Battery Testing Machine Pouch/CoinCell

Product Name:Constant Temperature Test Chamber
Product Model: AOT-MHW-25-S-16CH
Brand Name:AOT
Product Orgin:China
Product description: AOT-MHW-25-S-16CH it is mainly used in the desktop constant temperature test box for pouch cell battery & button battery laboratory testing.
INQUIRY

AOT-MHW-25-S-16CH it is mainly used in the desktop constant temperature test box for pouch cell battery & button battery laboratory testing.

It is more suitable for small-scale research and development and experimentation. It occupies less than half a square meter, freeing up more desktop space, and can observe the experiment situation in the box at any time.

Product Model	AOT-MHW-25-S-16CH
Volume	25L
Inner box size	W360mm×D300mm×H235mm
Dimensions	W440mm×D580mm×H410mm
Test environment conditions	The ambient temperature is +25°C, the relative humidity is ≤85%, and there is no sample in the test chamber (no load)
Temperature range	15～60℃
Temperature fluctuation	≤1°C (equivalent to ±0.5°C, no load, stable temperature)
Temperature deviation	±2.0°C (no load, stable temperature)Heating time
Heating time	25°C→60°C ≤50 min (no load, average non-linearity)
Cooling time	25°C→15°C ≤60 min (no load, average non-linearity)
Outer wall material	high-quality cold-rolled steel plate, surface spray and paint treatment
Inner wall material	stainless steel plate SUS304
Box insulation material	polyurethane foam
Air conditioning channel	DC fan, semiconductor refrigeration (heating) module
Test box standard configuration	Box door: hollow tempered glass + frame Cell fixture connection board: 2 pieces Lighting: LED lighting
Control panel	touch control buttons
Air conditioning unit	Semiconductor refrigeration (heating) module
Controller	LED digital display + touch key controller
Setting method	touch key
control method	Forced circulation ventilation. The control system controls the output of the semiconductor refrigeration (heating) module through the PID automatic calculation output according to the set temperature value, so as to achieve dynamic balance
Way of communication	Ethernet standard interface
Ambient temperature	25℃±3℃; Relative humidity: ≤85%; Air pressure: 86kPa～106kPa
Power supply	AC(220±10%)V /50Hz or AC(110±10%)V /60Hz single phase + protective earth wire 0.2kW 1A (220V) or 2A (110V)
Weight	45kg
Three ranges	5V10mA：5μA~ 1mA; 1mA~5mA; 5mA~10mA 5V20mA：5μA~1mA; 1mA~ 10mA; 10mA~ 20mA 5V50mA：5μA~1mA; 1mA~ 25mA; 25mA~50mA The current response time in the range is faster, the current control is more accurate, and the precision up to 0.05%.

Constant Temperature Test Chamber

Desktop Constant Temperature Test

Company Profile


Xiamen AOT battery equipment Technology Co LTD was set up as a manufacturer in 2006. We have total manufacturing facilities of around 4, 000 square meters and more than 65 staff. Owning a group of experienced engineers and staffs, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy. AOT Battery has been focused on product development and operations of lithium battery and its surrounding, we supply full kinds of lithium-ion battery equipment, lab battery raw materials and lithium-ion battery research and development technology.


Exhibition

AOT Lithium Battery Equipment exhibition provides exhibitors and visitors with a comprehensive platform for display, exchange, cooperation and trade. By participating in the exhibition, enterprises can understand the industry dynamics, expand market channels, enhance brand image and promote technological innovation and industrial upgrading.

Certificate

Cooperative

FAQ

Q1:How long do you need to prepare my goods?

A: 3-5 days for battery materials. 5-25 days for equipment (based on different model and quantities).

Q2:Can we have our logo or company name to be printed on products or package?

A: Sure. your logo could be printed on your products by hot stamping, printing, embossing, UV coating, silk-screen printing or sticker. In order to explore the market better and provide more convenient services to global customers, we sincerely invite overseas agent to create bright future together.

Q3:How can I install and operate the machine by myself?

A: Our system R&D based on integrated development view. when you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in this machine. what you need to do is only learning the software usage, and the complete English user manual will be coning to you with the machine.
