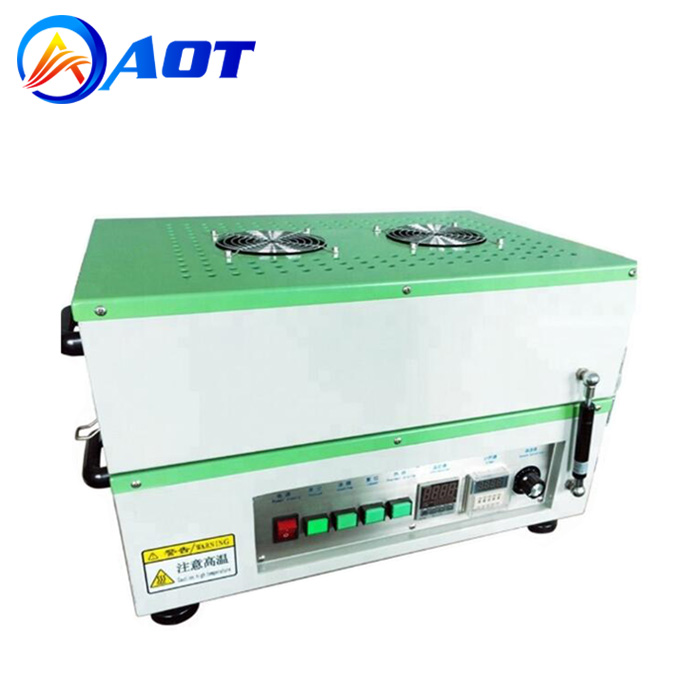

Compact Vacuum Tape Casting Heat Coater Machine For Battery Electrode

Model:AOT-TCM-200
Casting width: 200mm
Speed: 0-100mm/sec
Warranty: 2 Years
Product description: This compact tape casting coater machine with vacuum and heating function, it is designed for producing coated films with consistent thickness, mainly used in lab battery electrode preparing.
INQUIRY

Small Tape Casting Coater Film Coating Machine for Battery Electrode Manufacturing

Description:

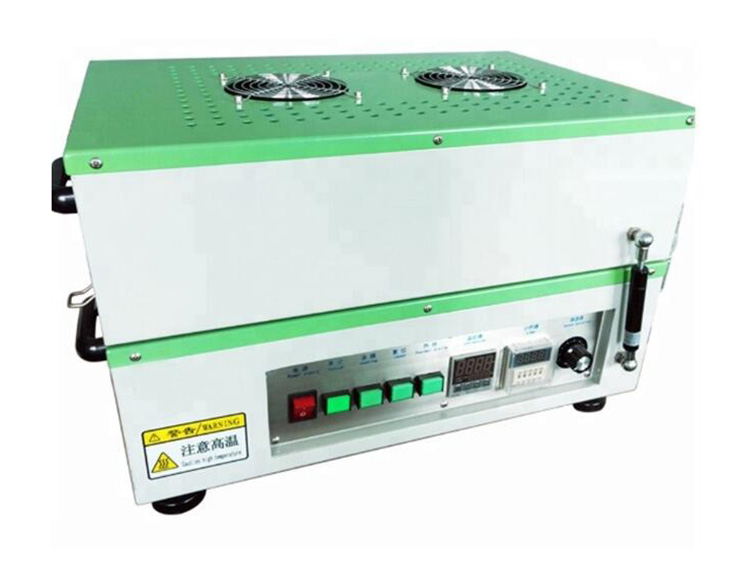

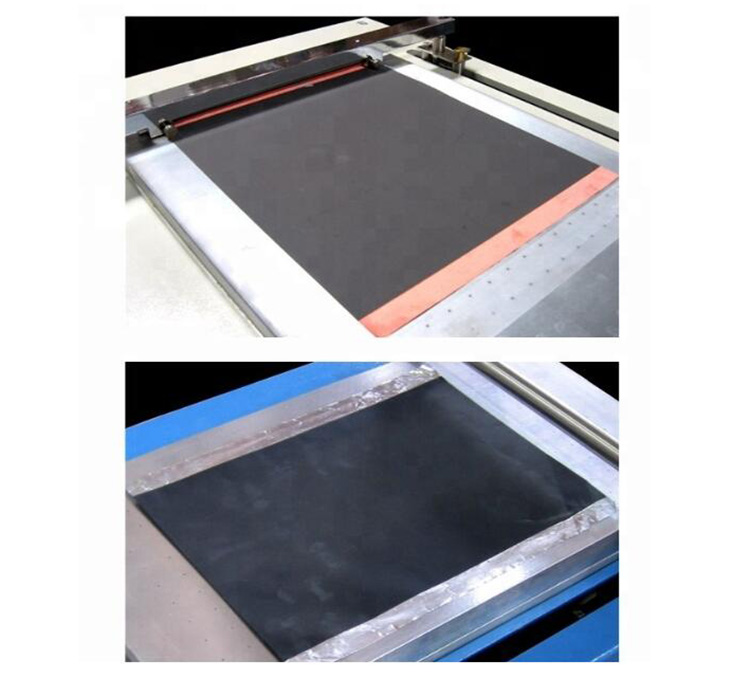

AOT-TCM-250 is a compact tape casting coater machine with vacuum and heating function, it is designed for producing coated films with consistent thickness. It has a unique driving system to produce smooth coating on many types of materials. The flat vacuum chuck is built in to aluminum plate, easy for placing and moving out the foils or electrodes. One 100 mm width (other width optional) adjustable micrometer applicator (doctor-blade) and an oilless vacuum pump are included for immediate use. Heating cover with digital temperature controller can dry films after coating up to 150C with a temperature accuracy of +/-1C. This equipment can be used for researches on ceramic tape castings and Li-Ion battery electrode coating.

Specifications:

Model	Tape Casting Coater with Vacuum Chuck AOT-TCM-250
Voltage	AC220V/50Hz
Power	650W
Coating Speed	0~100mm/s is adjusted
Maximum Stroke Length	250mm is adjusted, can be customized
Platform	1. Aluminum alloy flat vacuum chuck 2. Vacuum chuck dimensions:365mm(L)200mm(W)30mm(H)
Maximum Stroke Width	200mm, can be customized
Thickness Adjustment Range	0.02-3mm
Film Applicator	1. One 100 mm width micrometer adjustable film applicator is included, with adjustable thickness from 0.01mm~3.5mm 2. Traverse pusher is included for pushing the doctor blade to ensure constant speed coating
Heating Dry System	RT-150°C, Digital temperature controller
Temperature Control Accuracy	±1°C
Vacuum Board Material	Aluminum alloy
Vacuum Board Size	L365mm×W200mm×H30mm
Whole Device Size	L470mm×W310mm×H330mm
Vacuum Pump	Vacuum pump is included
Weight	50kg
Warranty	One year limited manufacture warranty with lifetime support

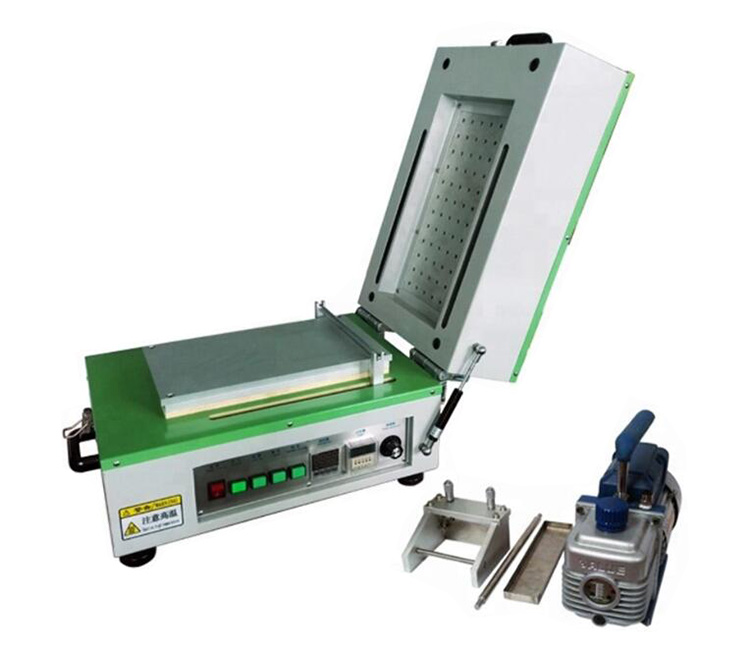

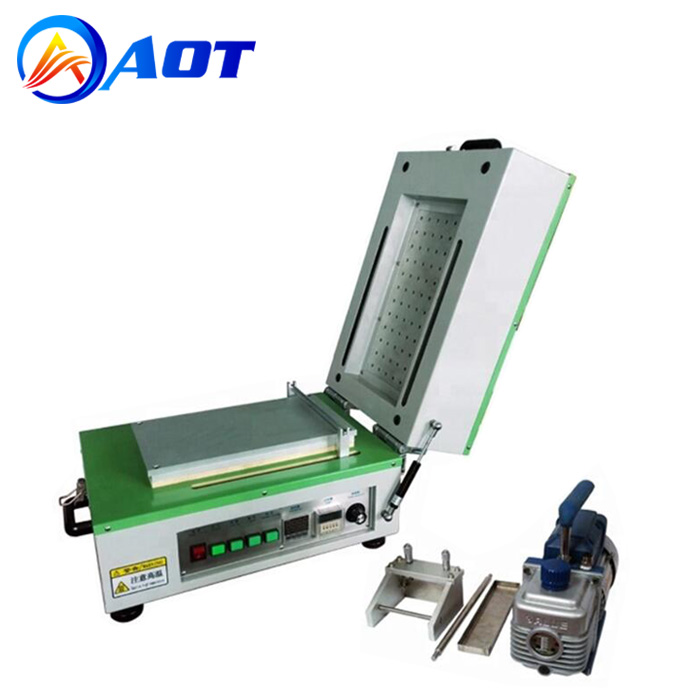

Accessory	1. One oil-less vacuum pump is included for immediate use 2. One 100mm width micrometer adjustable film applicator is included
