PTFE Body (liner)

 ID 46mm

PTFE Body Height

80mm

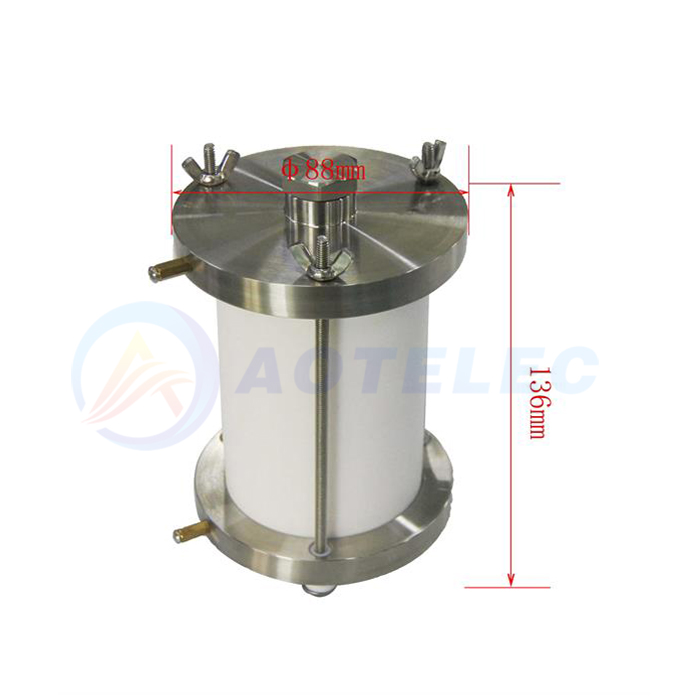

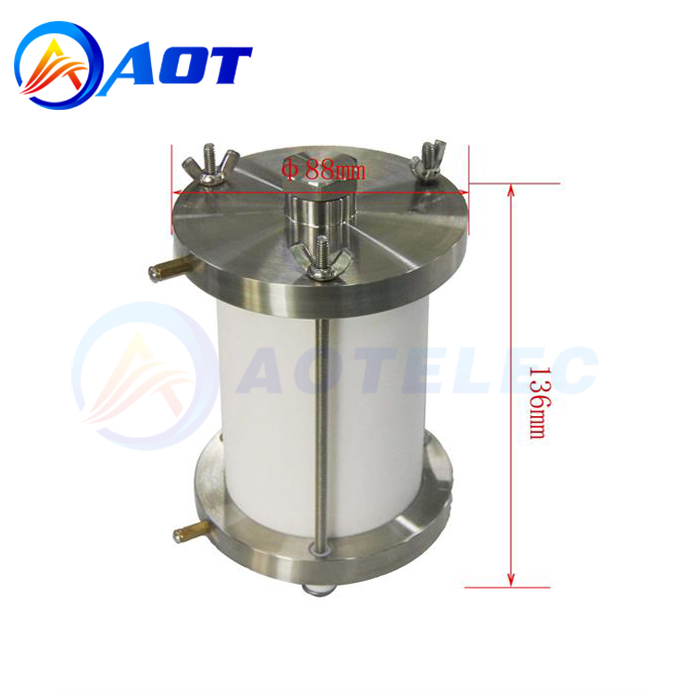

Cap size

88mm

Height the kit

136mm

Main advantage

1.Easy assembly with just four cap shaped installation screws.

2.Easy to separate after cleaning and testing.

3.Space saving, compact design allows you to place it in a glove box.

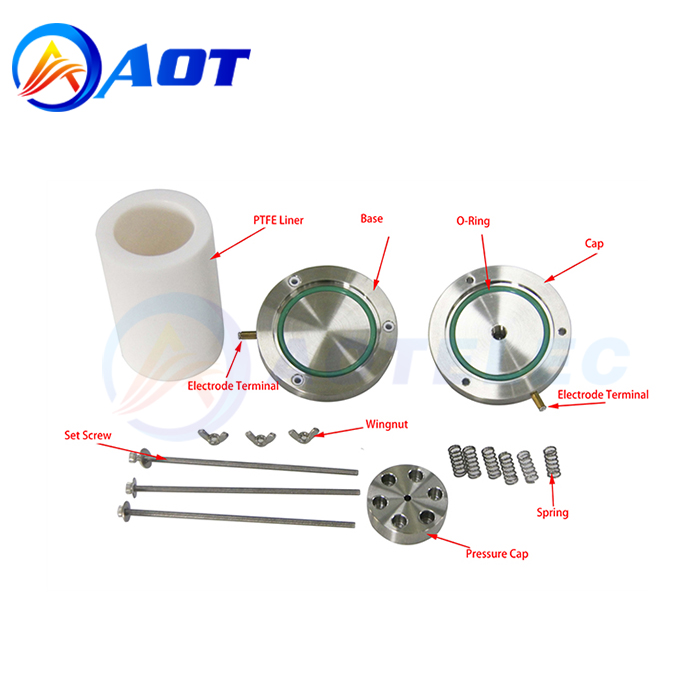

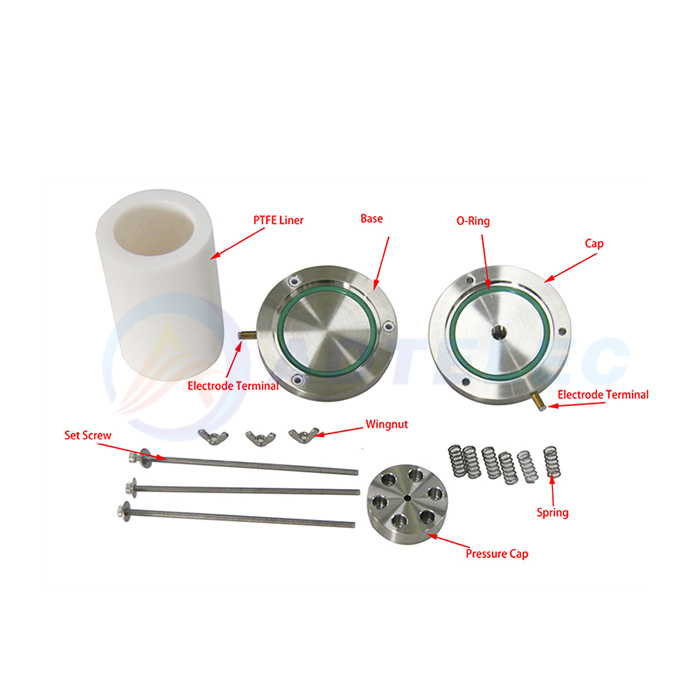

structure

1.The upper and lower covers are made of stainless steel material.

2.The middle columnar body is made of PTFE (polytetrafluoroZ-ene) material (which can be replaced with quartz material). The PTFE material is resistant to electrolyte corrosion and can withstand high temperatures up to 200C.

3.Insulation sleeve size: 46mm in inner diameter * 80mm in height.

4.Sealed with fluorine rubber O-ring resistant to electrolyte corrosion.

5.Built-in spring cover for fastening the battery.

weight

2kg
