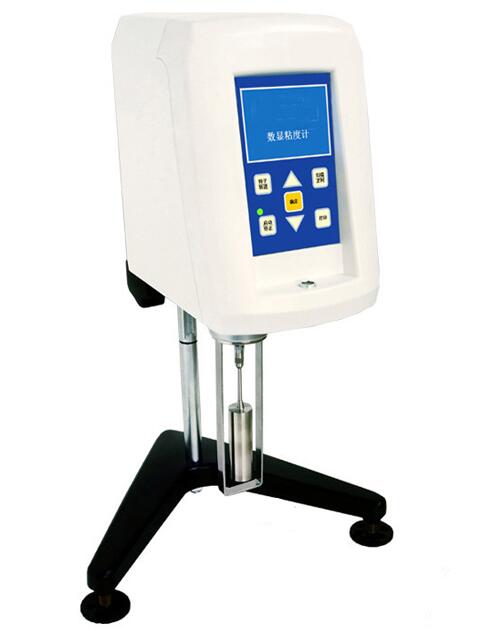

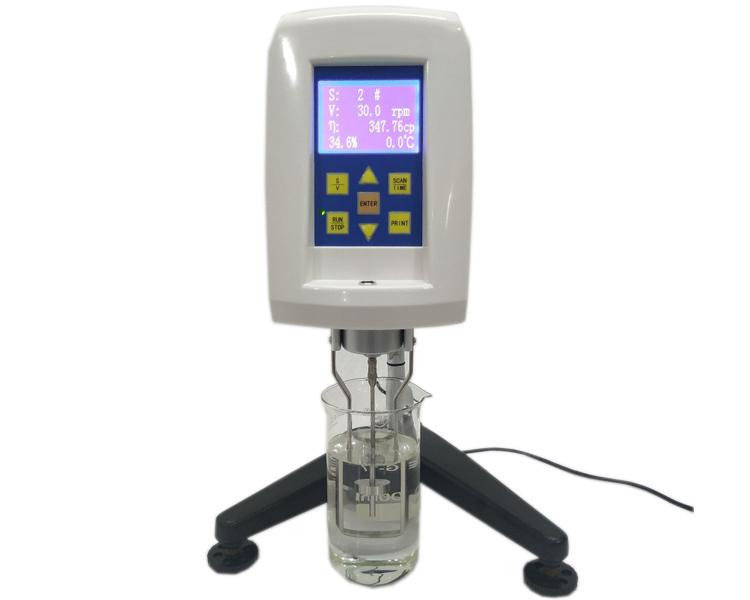

Digital Display Viscosity Meter SNB-1A for Battery Slurry Analyzing

Digital Display Viscosity Meter SNB-1A for Battery Slurry Analyzing

  • Model: AOT-SNB-1A
  • Origin: China
  • Applicaton: Battery Slurry Analyzing
  • Measuring range: 10-200000cp
  • Product description: This viscometer has testing range of 10-200000cp, with small quantity sample of 18-20ml, it testing result can directly displayed on the digital screen without any calculating. English digital display
  • INQUIRY

The SNB-1A Digital display viscosity meter is widely used in solvent based adhesive, latex, biochemical products, cosmetics, paint, paint, ink, paper pulp, food, starch and other industries.

Main feature:

1. Measurement data directly on the LCD screen does not require a second calculation;

2. Standard sample adapter, test sample viscosity only 18 - 20ml sample volume;

3. Using 16-bit microcomputer processor as the core stepper with high subdivision drive, LCD backlight display.

4. The use of program-controlled motor control, mains frequency does not affect the measurement accuracy;

5. Machine a machine design, easy to operate;

6. With RS232 interface, can output data, connect the computer;

7. Standard data processing software, real-time record of viscosity with shear rate, time, temperature changes caused by different, which understand the non-Newtonian liquid viscosity, rheological properties provide a good method.

Model

Digital display viscometer AOT-SNB-1A

Measuring range

10-200000cp

Sample quantity

20 ml

Measuring accuracy

(Newtonian liquid)

±1%

Standard rotor specification

21#/27#/28#/29# rotors

Rotation rate (RPM/min)

0.5/1/2/5/10/20/50

Dimension

300*300*450mm

Net weight

2kg (not including pedestal)

Package weight

7.4kg

Package size

480*250*400mm

Working temperature

5-35℃

Working humidity

≤80%

Source voltage

AC 100-230V  45-65HZ
