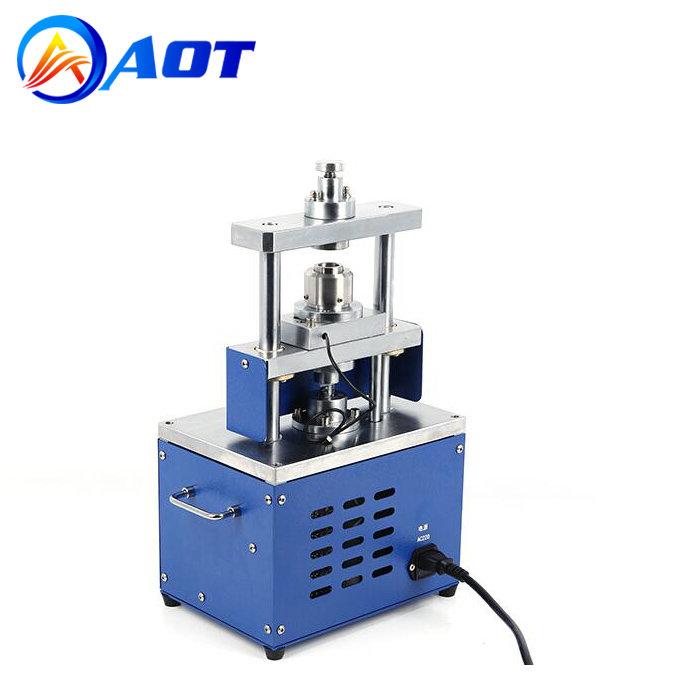

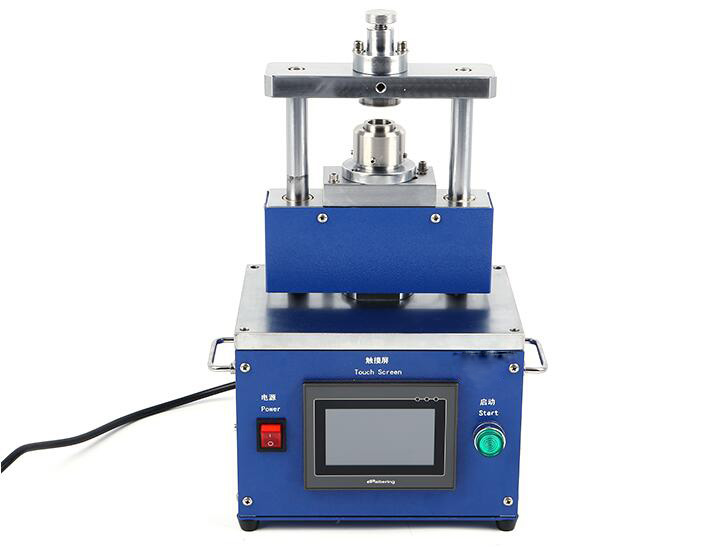

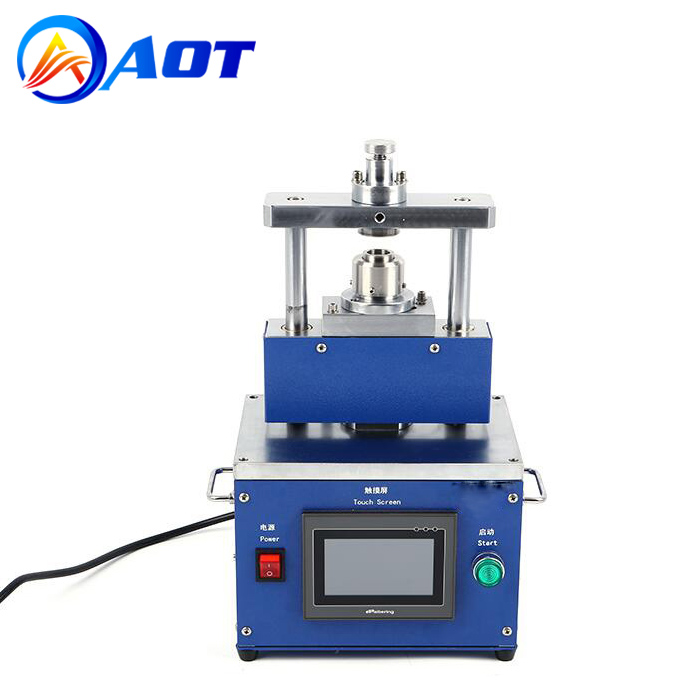

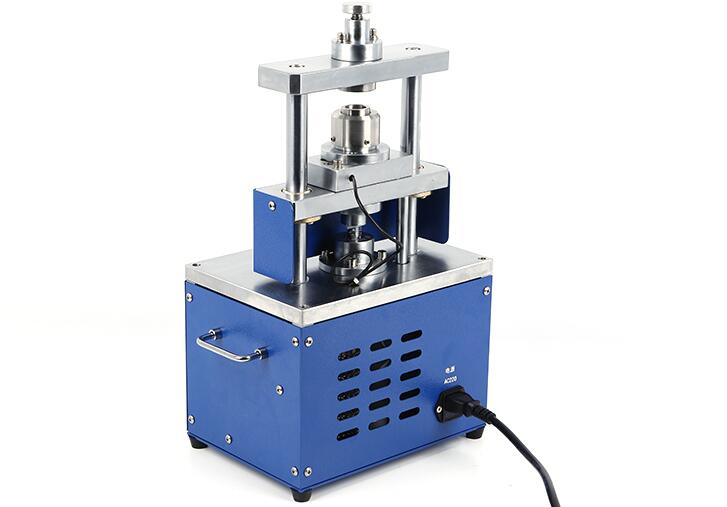

Electric Coin Cell Crimping Machine for Lab Button Battery Sealing

Electric Coin Cell Crimping Machine for Lab Button Battery Sealing

Model: AOT-ECM-20
Origin: China
Applicaton: Coin Cell Crimping
Suitable: CR20XX series Button Battery
Product description: Features : 1.Electric operation with touch screen . 2.High precision mould design to ensure stable sealing 3.Simple to change crimping die . 4.Small size can be put into glove box through Dia.36
INQUIRY

Electric Coin Cell Crimper Machine for Lab Button Battery Cases Sealing

It's used for various of button cell electric crimping .

Standard configuration can be used for disassembling CR20 series of coin cell. The machine has the advantages like small dimensions, easy operation, stable crimping , etc. Equipped with different mould can also be used for other works like powder pressing ,button cell disassembling etc .

Features :

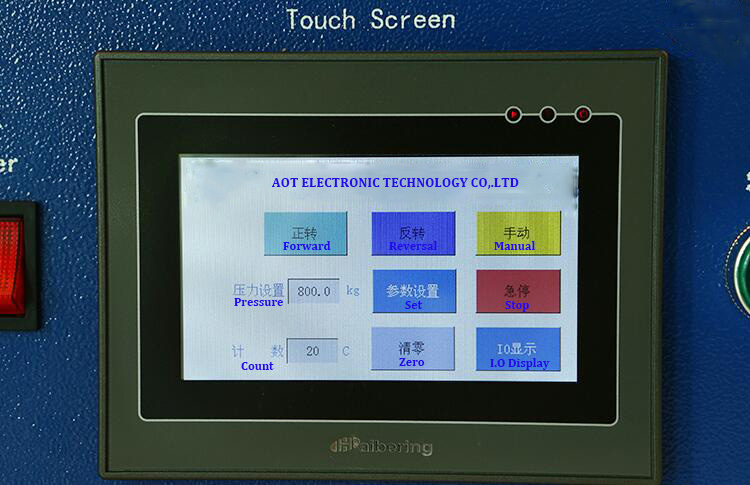

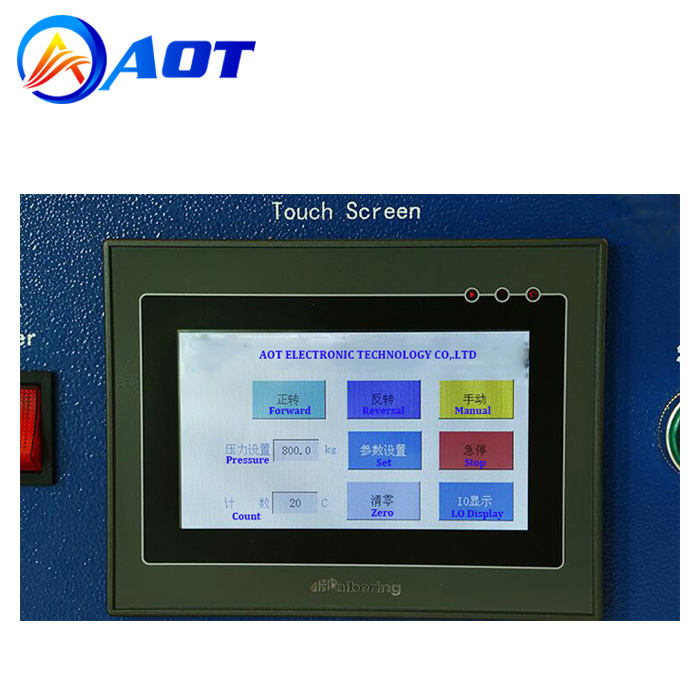

1.Electric operation with touch screen .

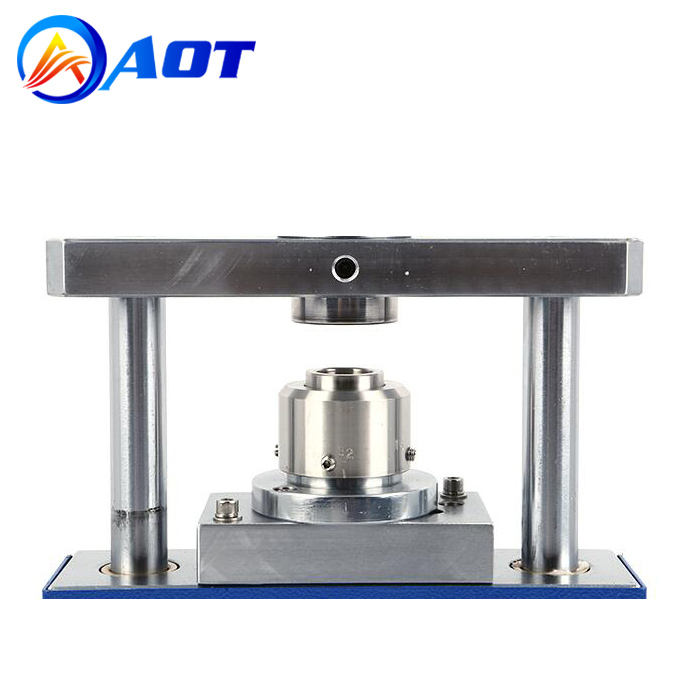

2.High precision mould design to ensure stable sealing

3.Simple to change crimping die .

4.Small size can be put into glove box through Dia.360 antechamber.

Model	Electric Crimping and Disassemble Machine for Coin Cell
Voltage	110 - 240V AC 50/60Hz
Die Set & Compatibility	1.Assembling and disassembling dies for CR2032, CR2025, & CR2016 coin cells. 2.Please read operation manual to see how to replace die from crimping to disassembling.
Structure	Heavy Duty Steel Platform,High strengthen chrome steel or alloy aluminum, the surface treated through environmental electroplating and painting and never rusts.
Warranty	One Year limited warranty with lifetime support
Maintenance Notes	Electrolytes are highly corrosive materials, and therefore the die set must be cleaned with alcohol after each use to avoid corrosion and to maintain the equipment's integrity.
Weight	26 kg
Dimension	L248mm×W180mm×H540mm
