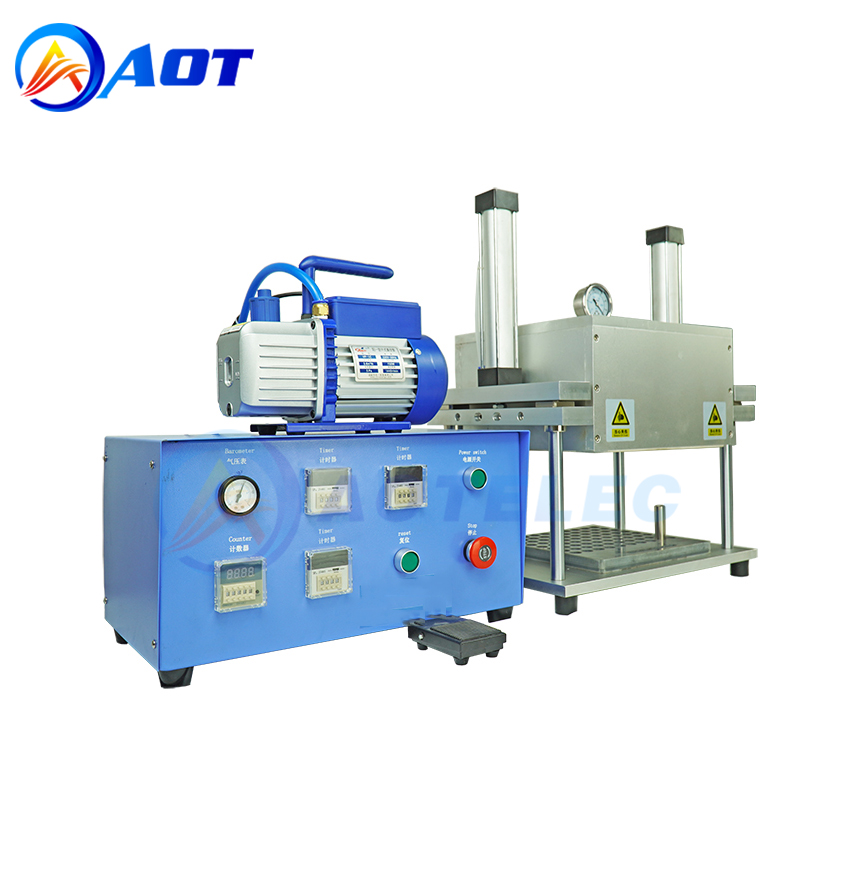

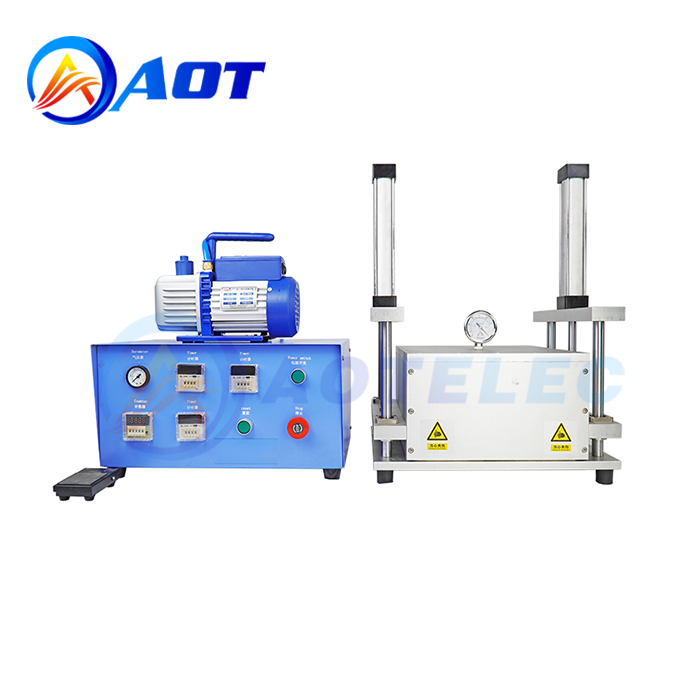

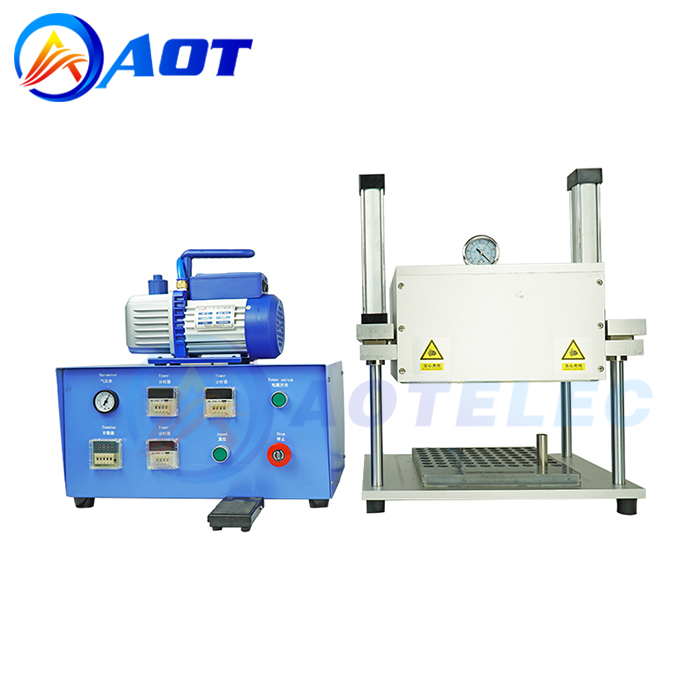

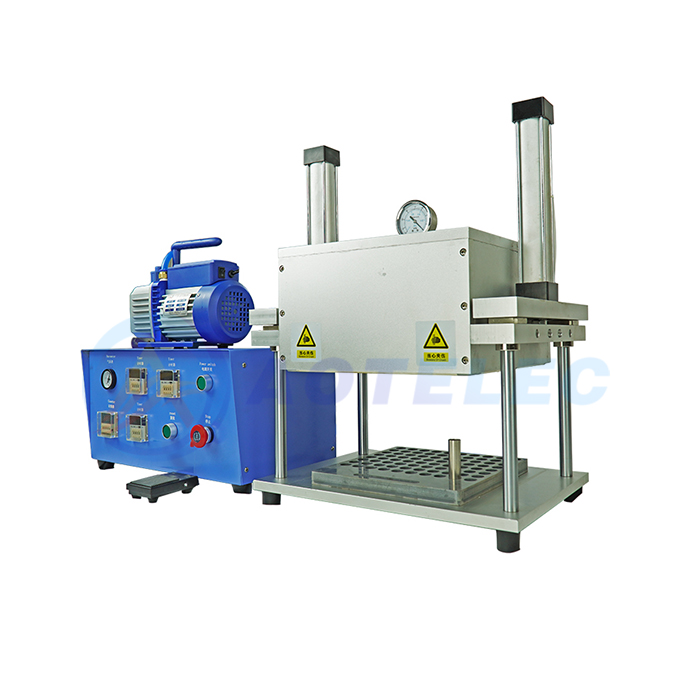

Electrolyte Degassing Chamber For Li-on Battery Research

  • Product Name: Electrolyte Degassing Chamber
  • Model Number:AOT-JZ200
  • Origin: China
  • Max. Power :100w
  • Product description: AOT-JZ200 electrolyte diffusion chamber is specifically designed for professional Li-ion Battery Research.
  • INQUIRY

AOT-JZ200 electrolyte diffusion chamber is specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyte after it's been injected into the polymer Li-ion cell/cylinder cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries (especially soft bag battery and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.



Specifications:

Item

Parameter

Working Voltage

110/220 V ± 10%, 50/60 Hz

Max. Power Consumption

100 W

Compress Air

0.5~0.8Mpa

Inner Chamber Size(L*W*H)

326*220*170 mm, can be customized according to glove box size

Chamber Body

12mm thick Aluminum case with observation window

Vacuum Level

1. Vacuum condition remains stable, vacuum degree and vacuum circulation times can be set independently.
2. Vacuum mode (once or twice) can be selected
3. Easy program setting for specific vacuum condition
4. Vacuum degree can up to -95kpa, with good sealing, can guarantee 1 minute air leakage is not more than 0.01 MPa

Vacuum Condition Hold Time

0 - 9999 sec, adjustable

Operation Temperature

-20~40℃

Product Dimensions (L*W*H)

Vacuum Box: 480 *300* 450 mm
Control Unit: 460 *220* 340 mm

Weight

40 kg

Warranty

One year limited warranty with lifetime support
