  • Product Name: Double Side Coating Machine
  • Model Number:AOT-AFA-DS300
  • Origin: China
  • Max. Coating Width:250MM

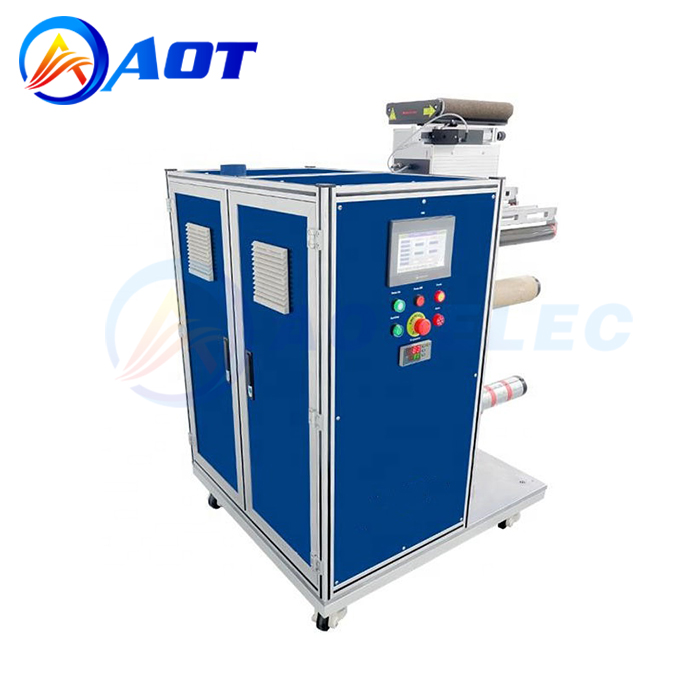

  • Product description: AOT-AFA-DS300 is a vertical roll to roll coater designed for preparing double-sided electrode sheets for Li-Ion batteries.
  • INQUIRY

Vertical Double Side Coating Machine With 250mm Width For Battery Electrodes

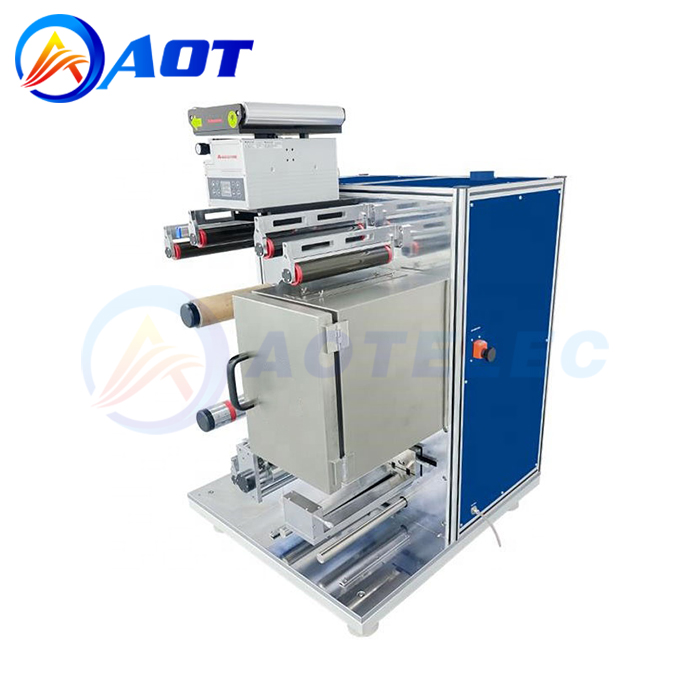

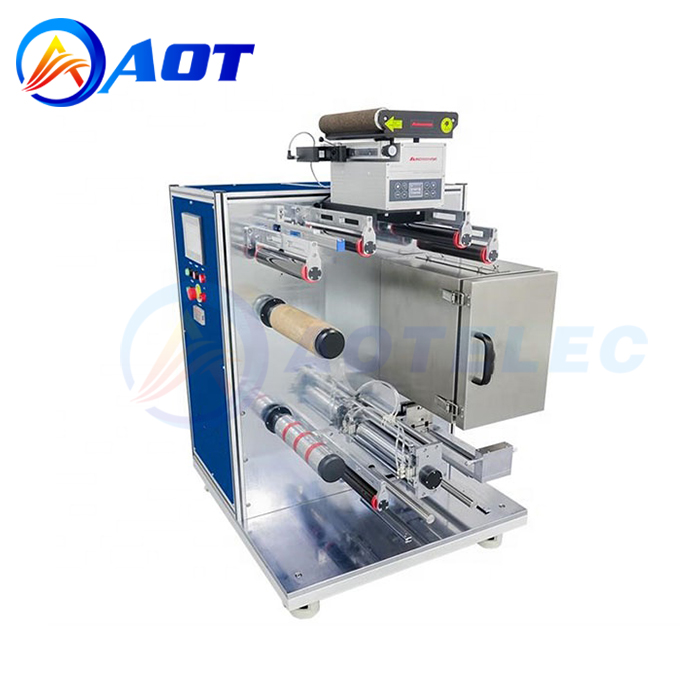

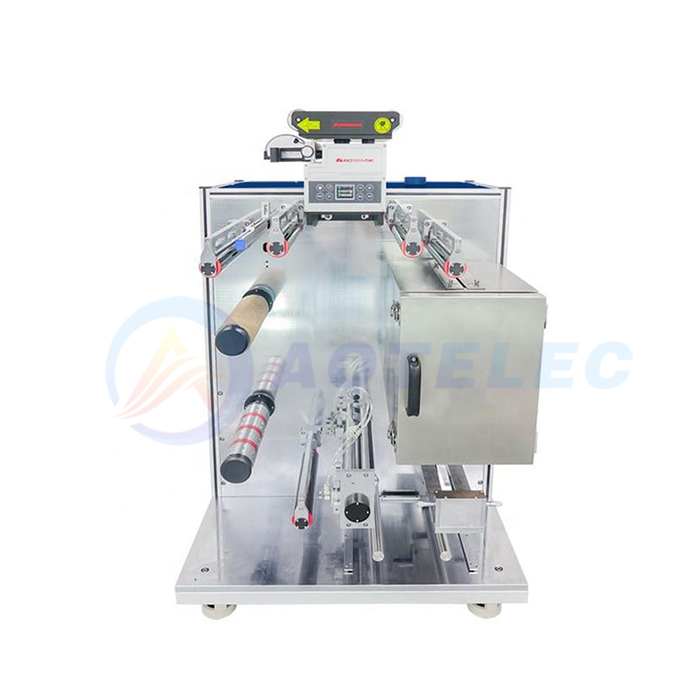

AOT-AFA-DS300 is a vertical roll to roll coater designed for preparing double-sided electrode sheets for Li-Ion batteries, Graphene thin-film coating, ceramic coating, and NiMH batteries. It is excellent for making the double coating on a substrate and has a small footprint (L 950 mm x W 870 mm) to save lab space. The coater also can be used for making the double coating at the same time for other materials from a slurry.


SPECIFICATIONS:

Working Power

AC 208 - 240 V

50/60Hz, Single Phase

2 KW (15A Air breaker required)

Coating Method



Slot Dies technique

Coating Thickness Precision: +/-  0.003 mm

The coating thickness precision depends on the coating material.

Coating film width: 0.1 mm

Max. Coating Width

250 mm

Max. Coating Speed

800 mm / min

Coating Thickness Range

3 - 50 um

For most kinds of battery electrode coating materials

It depends on the wire rod, the physical property of the coating material, substrates, and coating speed

Coating Thickness Precision

+/-  0.003 mm

The coating thickness precision also depends on the coating materials (Viscosity, Solid contents, surface tension and etc)

Wire rod dimensions

Diameter: 10 mm;

Length: 400 mm;

Wet coating thickness references: 6 um, 8 um, 10 um, 12 um, 15 um, 20 um, 25 um, 30 um, 40 um, 50 um, 60 um, 70 um, 80 um, 100 um, 120 um, 150 um, 200 um

Drying

IR; Infrared heating

Adjustable Venting: Maximum 403 m^3/h

Maximum heating temperature: 120°C

Temperature Accuracy: ± 1°C

Heating Zone Length: 425 mm

Reeling/Unreeling Shaft

75 mm (I.D.)

Max. Reeling/Unreeling Diameter

300 mm (O.D.)

Max. Coating Length

Depending on the coating and substrate thickness.

Typically, 10um thick foil with 100um coating can get 600 meters of electrode length coated per run

Exhaust Port Size

127mm O.D.

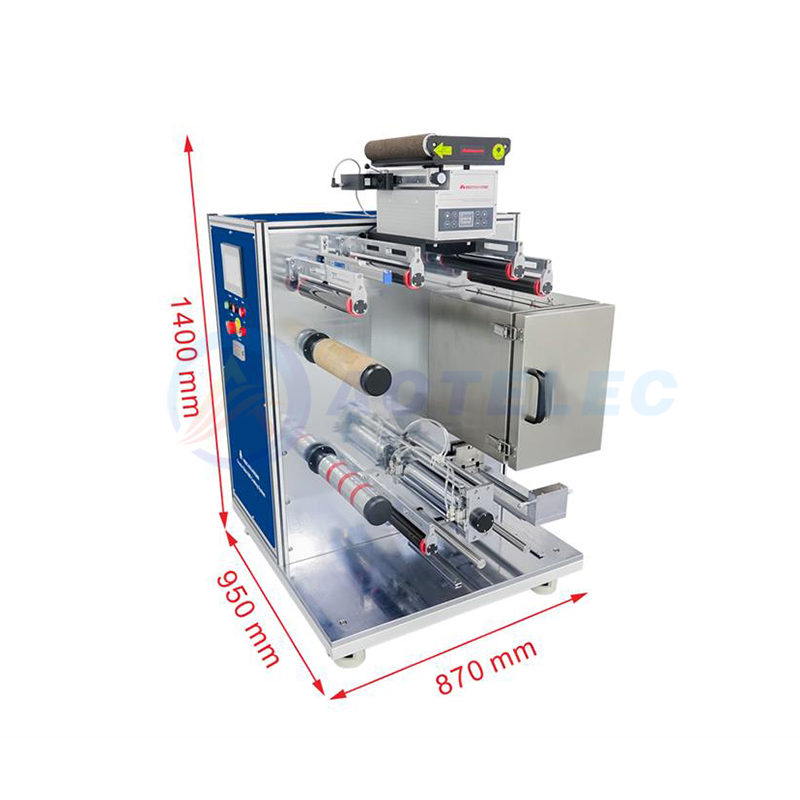

Product Dimensions

 1100 mm (L) x 1000 mm (W) x 1750 mm (H)

Compliance

CE Certified

Warranty

One Year limited warranty with lifetime support

Rusting and damage due to improper storage condition or maintenance are not covered by warranty

Net Weight

530kg
