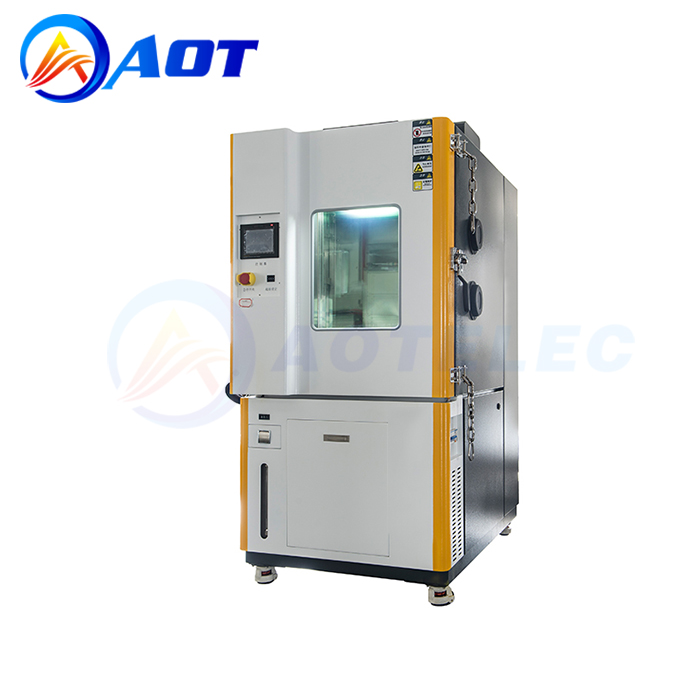

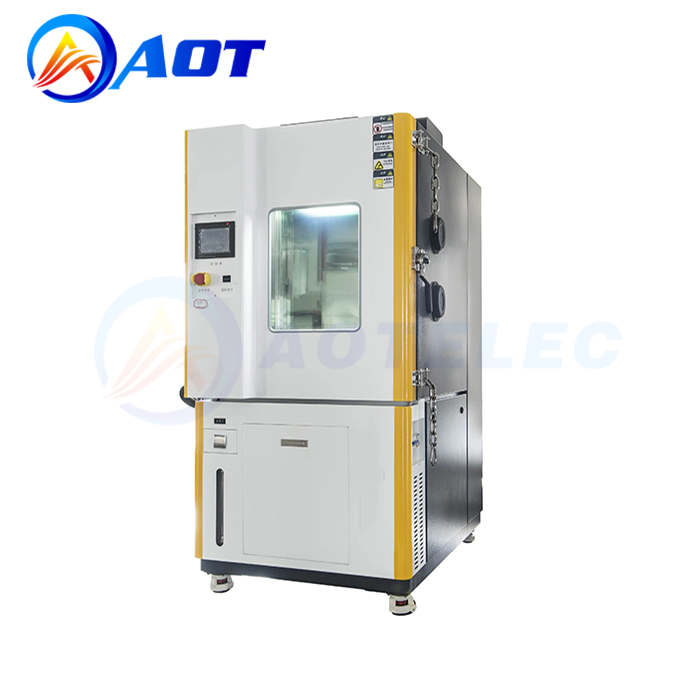

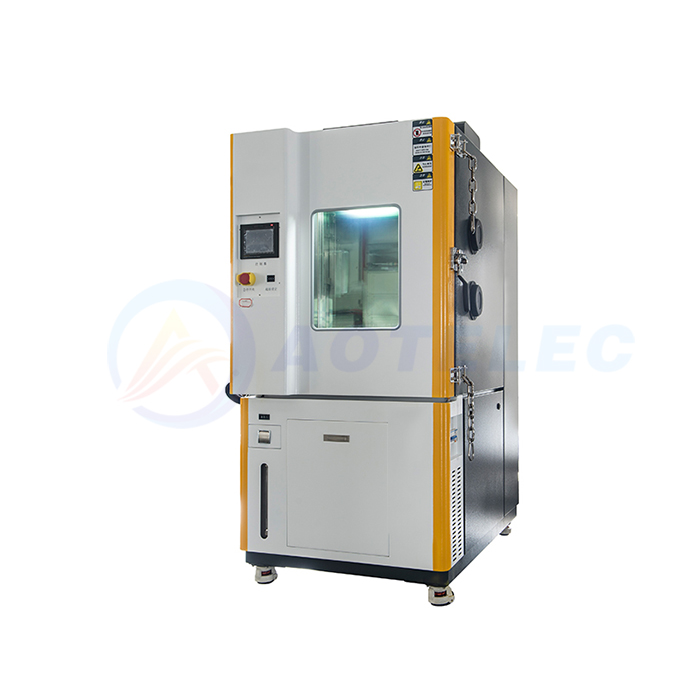

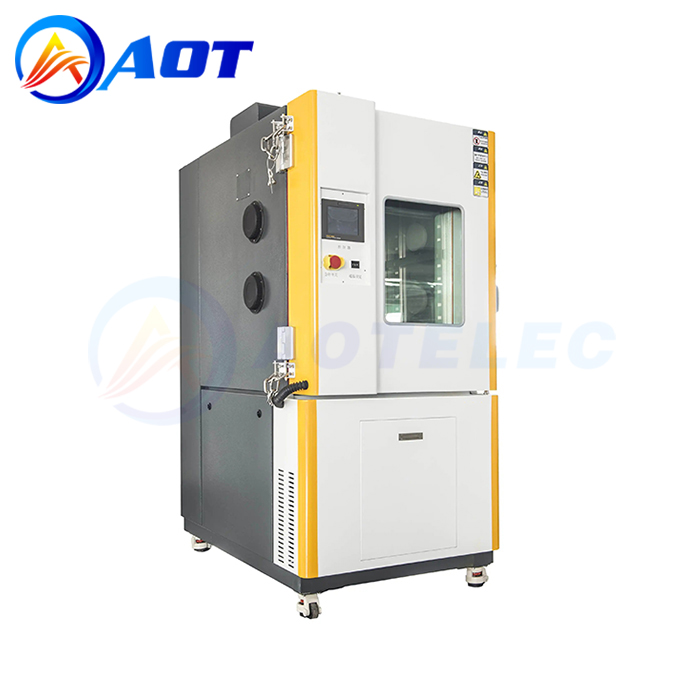

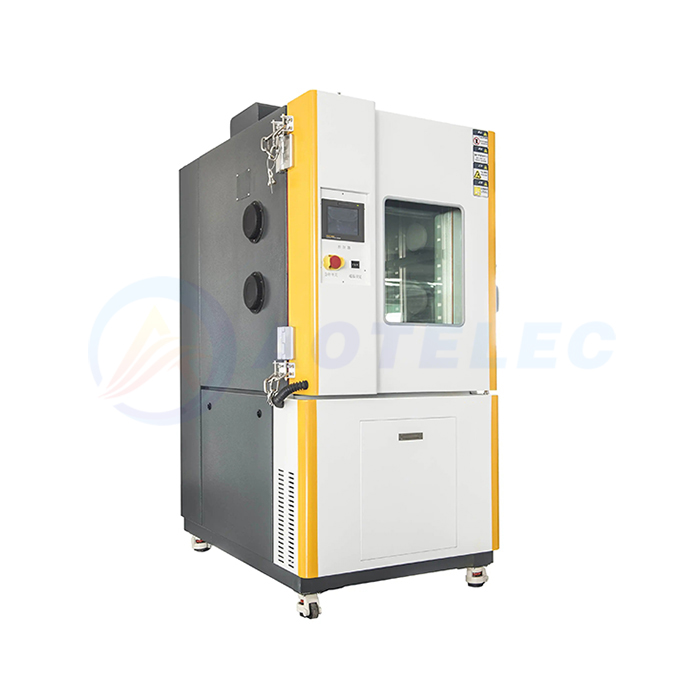

High And Low Temperature Alternating Test Chamber For Lithium Battery

High And Low Temperature Alternating Test Chamber For Lithium Battery

Product Name: High-low Temperature Test Chamber
Model Number:AOT-MGDW150
Origin: China
Temperature range:-20℃～150℃
Product description: The damp heat type high and low temperature test chamber is a special equipment for battery testing in the new energy industry.
INQUIRY

The damp heat type high and low temperature test chamber is a special equipment for battery testing in the new energy industry, which can provide the required high and low temperature simulated climate environment for battery charging and discharging and safety performance testing; it is also a variety of electronic, electrical, electrical, plastic and other raw materials It is a reliability test equipment for cold resistance, heat resistance, moisture resistance, dry resistance test and quality control engineering with components.

Model	High and Low Temperature Alternating Test Chamber AOT-MGDW150
Working chamber size (DWH)	W500 mm×D500 mm×H600 mm
Dimension (DWH)	W750 mm×D1500 mm×H1750 mm
Temperature range	-20℃～150℃
Temperature fluctuations	≤1℃
Temperature uniformity	±2.0℃
Heating up time	-20℃→+150℃ ≤60 min
Cooling time	+20℃→-20℃ ≤45 min
Power	3.8kw
Voltage	AC110V/220V with grounding protect
Weight	260kg
