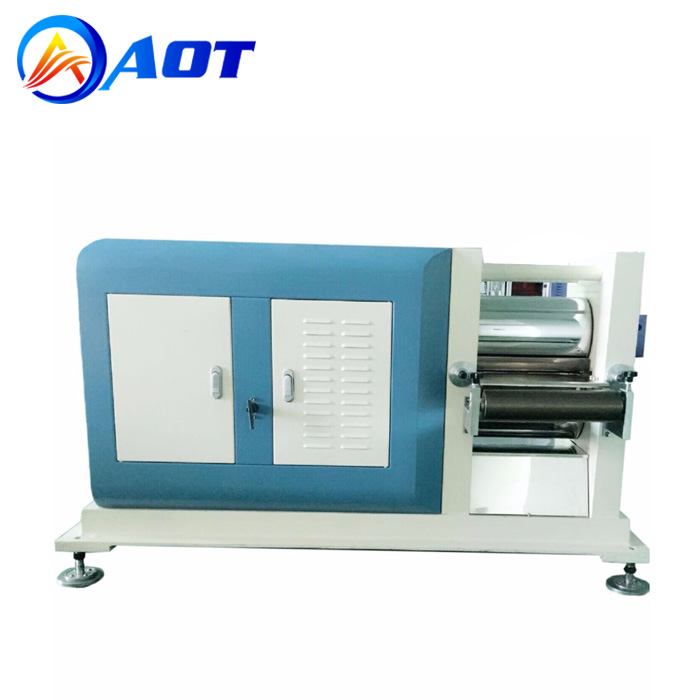

Hydraulic Roller Press Machine for Battery Electrode Calendering

  • Model: AOT-HRP-300C
  • Rolling Width: 300mm
  • Calendering thickness: 0.01-3mm
  • Max Pressure: 20KN
  • Product description: AOT-HRP-300C Hydraulic Roller press machine is an Automatic Battery Electrode Rolling Press System with precision digital pressure control. The pressure can be adjusted easily by touch screen. The big
  • INQUIRY

Hydraulic roller press Machine for Battery Electrode Calendering

1 AOT-HRP-300C Hydraulic Roll to Roll pressure controlled Calendering machine is an Automatic Battery Electrode Rolling Press System with precision digital pressure control. The pressure can be adjusted easily by touch screen. The biggest rolling press width is 300mm.

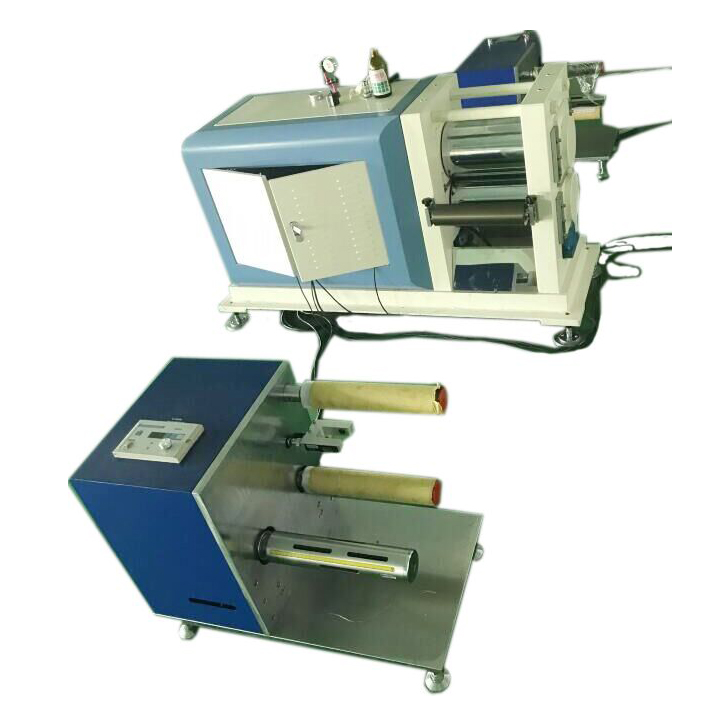

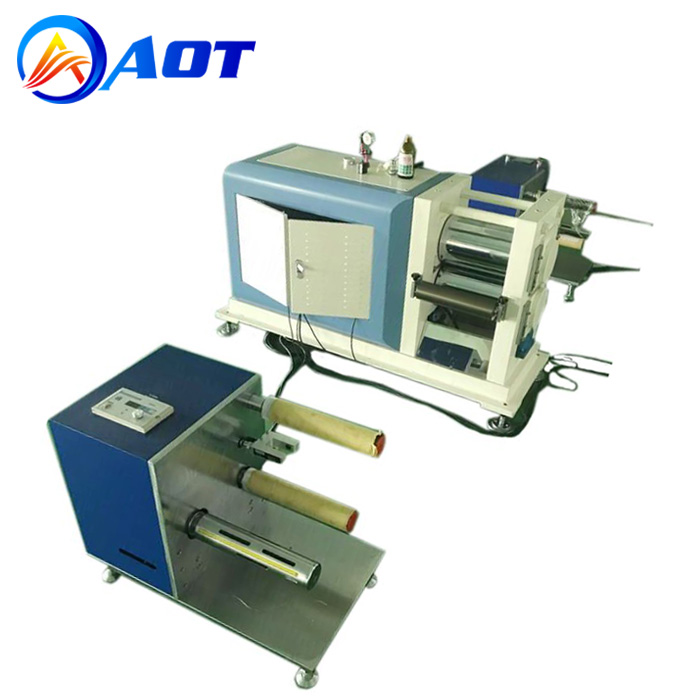

2 It is with tension controlled feeding and winding devices with the electric rolling press machine, which can roll to roll continuous electrode calendering, suitable for battery electrode roll to roll calendering for pilot scale research work.

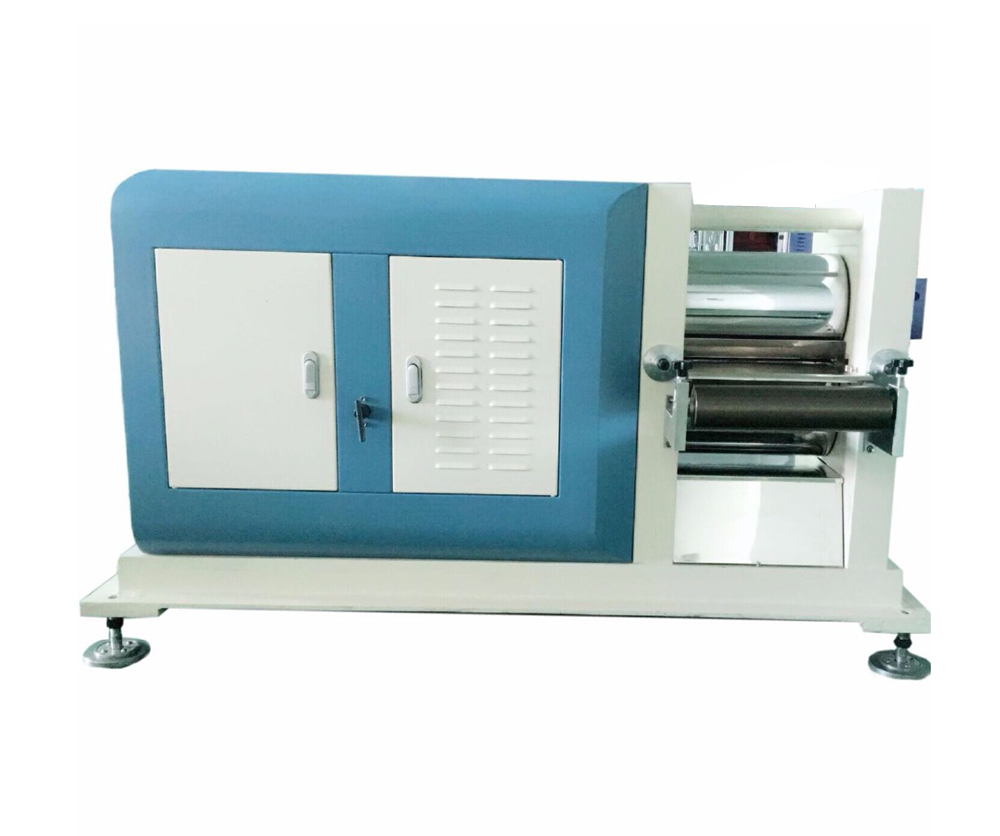

3 You can also just choose the hydraulic roller press machine without feeding and winding device as model AOT-HRP-300L, you can also add heat function to this roller press machine with temperature up to 130℃ as model AOT-HRP-300T with winding and feeding as continuous model.



Model

Roll to Roll Pressure Adjusted Roller Press AOT-HRP-300C

Function

Calender battery electrode

Calender Thickness

0.01-3mm adjusted

Calender Width

Max 300mm

Calender Pressure

Max 20KN

Speed

1-3m/min

Working Roller

Diameter 210mm, 9Cr3Mo materials

Roller Width

300mm

Calendertype

Hydraulic press

Accuracy

0.003mm

Rolling Press Machine Power

1500W

Rolling Press Machine Size

About L1300mm*W600mm*H1300mm

Total Installation Dimension

About L3000mm*W1200mm*H1300mm

Power Supply

380V 4KW

Tension Control

Absolute value photoelectric encoder with floating guide roller

Electric control

With tension display, rolling speed display function

Electric motor revolution and connter revolution

Pressure Controlled Roll to Roll Hydraulic Calendering Machine for Battery Electrode Production

Hydraulic Roller Press for Battery Electrode Calendering
