  • 5V3A Lithium ion Battery Testing Equipment for Cylindrical Battery and Pouch Cell
5V3A Lithium ion Battery Testing Equipment for Cylindrical Battery and Pouch Cell

5V3A Lithium ion Battery Testing Equipment for Cylindrical Battery and Pouch Cell

  • Model: AOT-BTS-5V3A
  • Origin: China
  • Usage: Battery Analyzing
  • Application: Lab battery research
  • Product description: 8 channels 5V 3A voltage and DC internal resistance tester lithium battery tester
  • INQUIRY

5V3A Lithium ion Battery Testing Equipment for Cylindrical Battery and Pouch Cell

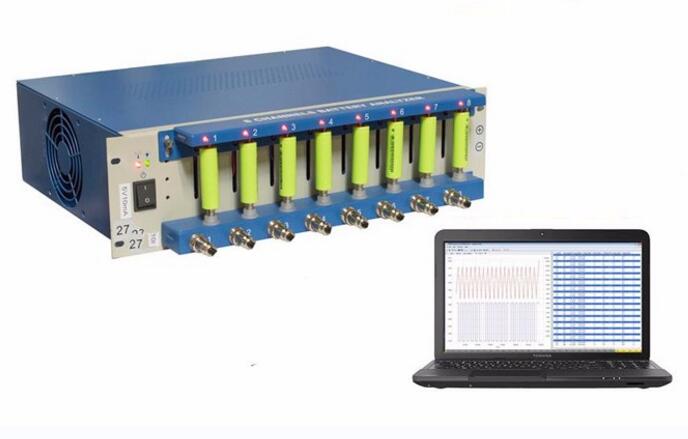

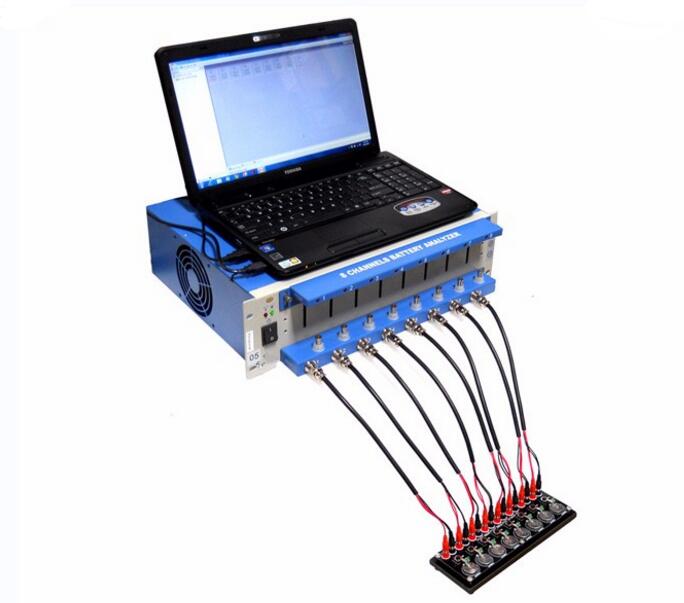

battery tester equipment is an eight-channel battery analyzer to analyze polymer battery and cylindrical batteries from 6.0 mA to 3000 mA, up to 5V.



This battery test system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.



Item

Parameter

Input Power

AC 220V ±10% / 50Hz

resolution

AD:16bit; DA:12bit

Input Resistance

≥1MΩ

Input Power

224W

Channel Features

Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Per Channel Voltage Range

10mV~5V

Discharge Min Voltage

0.8V

Accuracy

± 0.1% of FS

Stability

± 0.1% of FS

Current

Per Channel Current Range

6mA~3000mA

Accuracy

± 0.1% of FS

Stability

± 0.1% of FS

Power

Per Channel Output Power

15W

Stability

± 0.2% of FS

Time

Current Response Time

1ms (0-Full Range)

Step Time Range

≤(365*24 )hour/step,

Time Form Support 00:00:00(h,min:s,ms)

Data Recording

Record Condition

Time: 1s-60000s

Voltage: 10mV-5V

Current: 6mA-3000mA

Record Frequency

1Hz

Charge

Charge Mode

Constant Current Charge,Constant Voltage Charge,

Constant Current and Constant Voltage Charge

End Condition

Voltage,Current,Relative Time,Capacity

Discharge

Discharge Mode

CCD,CPD

End Condition

Voltage,Current,Relative Time,Capacity,

Pulse

charge

CCC

Discharge

CCD

Min Pulse Width

500ms

Automated Switch

Automated switch from charge to discharge for each pulse

End Condition

Voltage, Test Time

Cycle

Loop Measure Range

1~65535 times

Max Steps Per Loop

63

Nested Loop

Nested loop Function,Max Support 3 Layers

Protection

Software Protection

Power-down Data Protection

Off-line Testing Function

Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time

Hardware Protection

Additional Anti-reverse Protection Model

Voltage and Current Testing Sample

4-wire connecting

Noise

<85dB

Database

MySQL Database

Data Output

EXCEL2003/2010,TXT

Communication Interface

R232

Per Unit Main Channels No.

8

Dimensions

480*330*130(mm)
