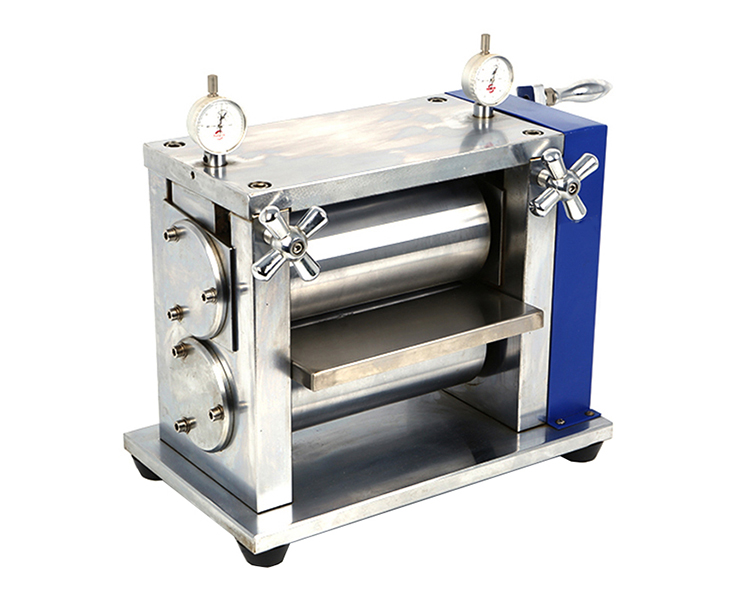

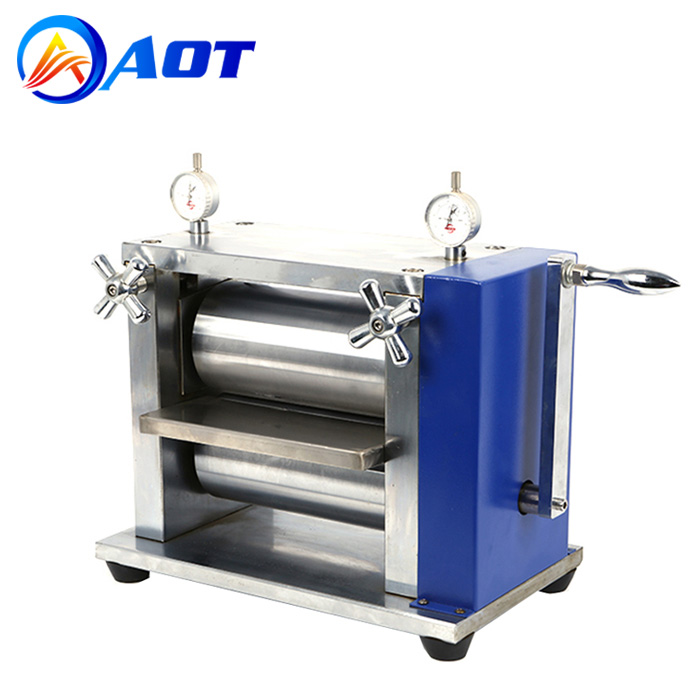

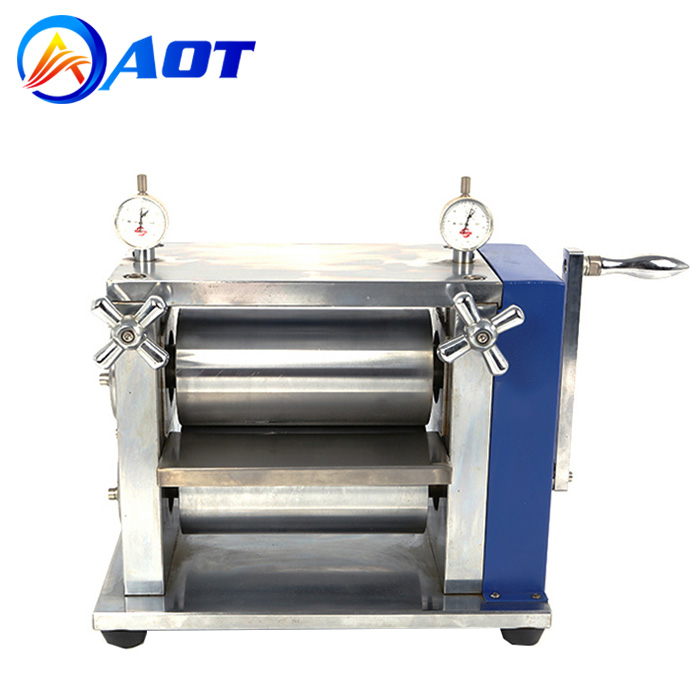

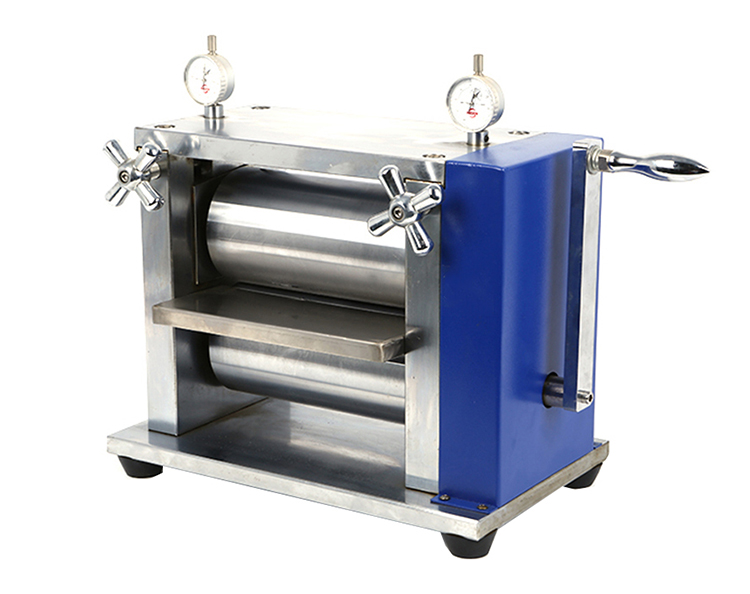

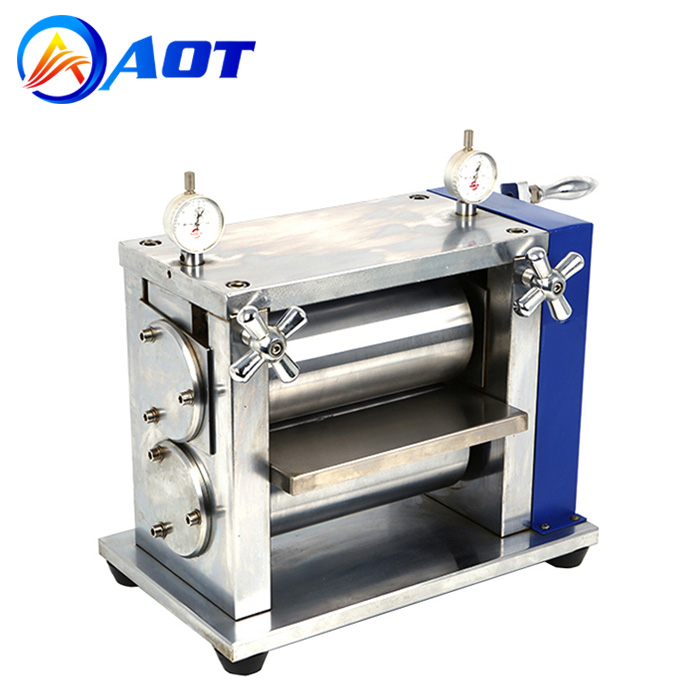

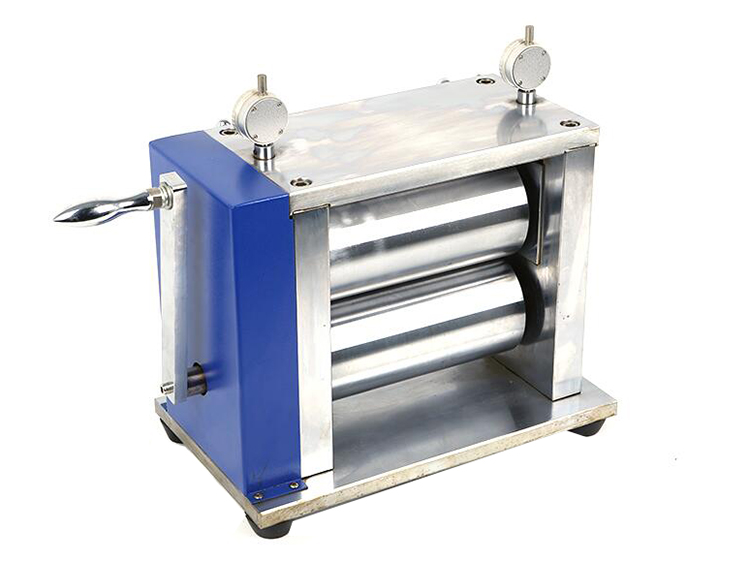

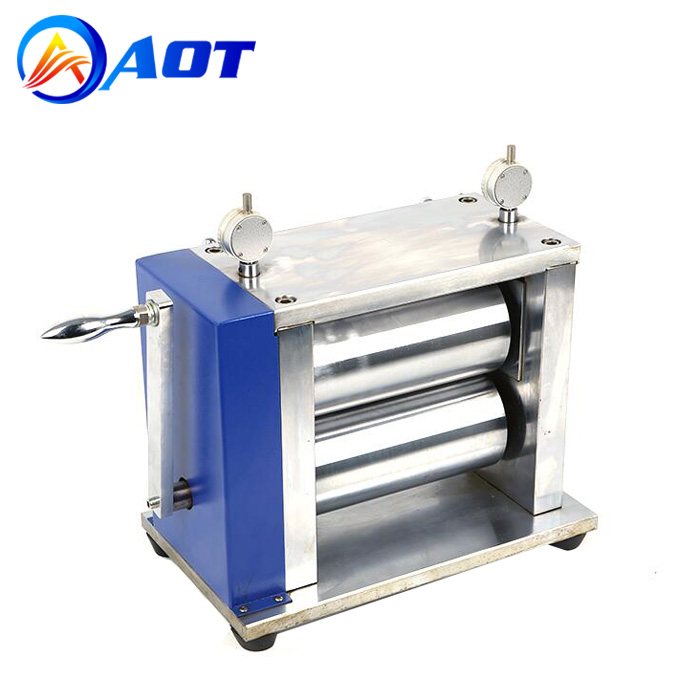

Manual Lab Roller Press Machine for Lithium ion Battery Electrode Calendering

  • Model: AOT-MRP-100
  • Origin: China
  • Roller: 96mm(Dia.) x 100mm(W)
  • Rolling press thickness: 0-2mm
  • Product description: Lab Roller Press Machine is a Manual Roll Pressing Calender Machine. It is an ideal rolling press tool for adjusting thickness and increasing active material density of the electrode in Li-Ion batteri
  • INQUIRY

Manual Lab roller press Calendering Machine For Lithium ion Battery Electrode

This is manual rolling press machine which used for pressing battery materials, a few precious metal materials like gold and silver, nonferrous materials like copper and aluminum for lab .The rolling thickness can be regulated, it is easy to operate.


Features :

1. Hard chrome plated on surface.Material HRC62.

2. Transparent protective plate is designed for safety operation .

3. Press gap is adjustable .

4. Rolling speed , press thickness is adjustable .

Model

100mm Width Manual Rolling Press Machine AOT-M-RP-100

Warranty

One year limited manufacture warranty with lifetime support

Structure

1 Heavy duty steel frame, gears and handle

2 Dia.96mm * Dia. 100mm width Rollers made from hardened

tool steel (HRC > 60) with Cr electroplated coating

3 Dual micrometer for accurate thickness adjustment

in the range 0 - 2 mm Maximum

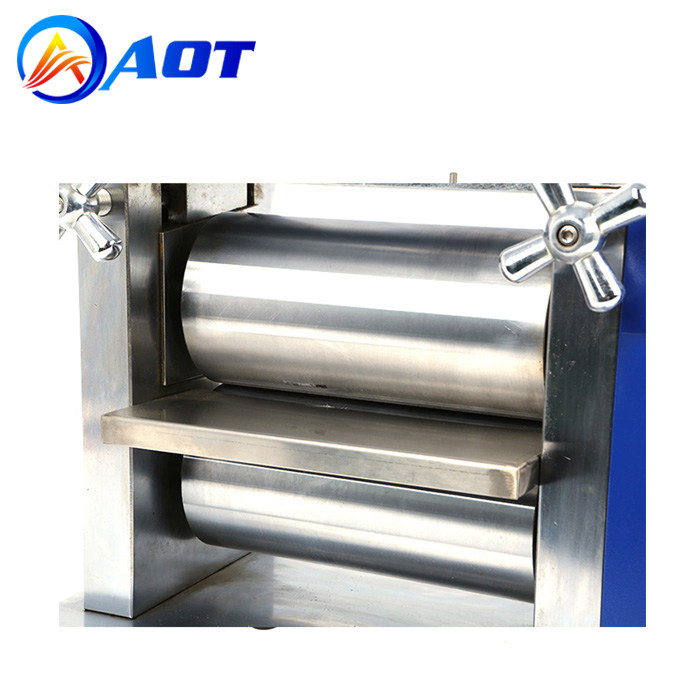

Roller

Dimensions: 96mm(Dia.) x 100mm(W)

Material: Made from hardened tool steel (HRC > 60)

with Cr electroplated coating. With finish  > 0.8

Rolling press accuracy

≤±0.005

Rolling press thickness

0-2mm adjusted with Dial gauge

Rolling press width

Max 100mm

Product Dimensions

350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14")

Weight

45kg (100 lbs)

Application Notes

This roller is specially designed for battery R&D in terms of

its advantages as affordable,compact and precise.

1 Must use acetone to clean and dry rollers' surfaces

after each use to avoid rusting

2 Coated Rust-proof oil;if machine were to be unused

for a long period of time

3 The minimum thickness of the rolled sheet should depend on

the physical property of the materials.

Sample testing is available upon customer's request
