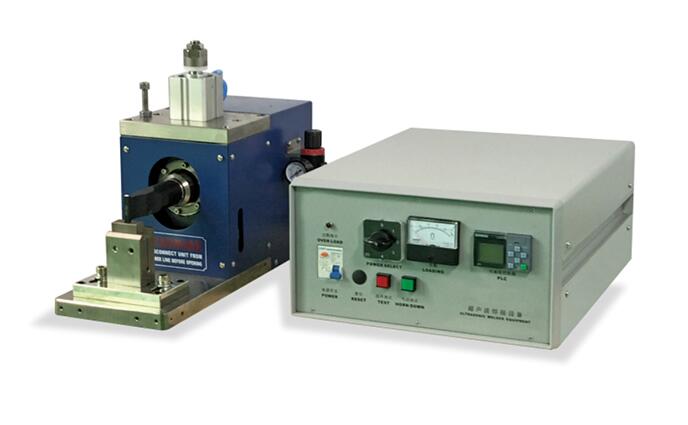

Ultrasonic Metal Spot Welding Machine for Pouch Battery Tab Welding

Ultrasonic Metal Spot Welding Machine for Pouch Battery Tab Welding

  • Model: AOT-USW-2600W
  • Origin: China
  • Max Output Power: 2600W
  • Welding Ability: 10-25 Layers
  • Product description: Ultrasonic Metal Spot Welder Welding Machine for Lithium Battery Tab Welding
  • INQUIRY

It is a CE Certified ultrasonic metal welder with color touch-screen controller. It is designed for welding stacked electrode sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells in R&D laboratories.



The 2600w Battery Welding Machine can weld stacked electrode with 10-25layers Aluminum Foil or copper foil with Al tab and Nickel tab, If with bigger battery with layer up to 30layers, can choose the TOB-USW-3000W model, and If need to weld up to 60 layers, please choose TOB-USW-4500W model.



Model

Battery Welding Machine  AOT-USW-2600W

Type

Ultrasonic spot welding machine

Power source

AC110/ 220V 50Hz/60Hz

Frequency

24KHZ

Max output power

2600W

Humidity

Less than 48%

Temperature

Less than 45 degree centigrade

Air supply

More than0.5MPa

Control mode

CPU control

Welding ability

1.10-25sheets 0.09-0.012mm Cu foil + 0.1-0.3mm Ni or Ni-Coated copper

tab welding.

Welding point : 4*6, 4*8, 4*10, 4*12 mm customized

2. 10-25 sheets 0.09-0.012mm aluminum foil + 0.1-0.3mm Al tab welding.

   Welding point : 4*6, 4*8, 4*10, 4*12 mm customized

3. 0.2mm Al belt +0.2mm Ni belt or Nickel-clad copper wrapping welding.

   Welding point : 4*6, 4*8, 4*10, 4*12mm customized

4. 2-4 sheets 0.2mm Al tab or 2-4 sheets 0.2mm Ni tab weld.

   Welding point : 4*6, 4*12mm customized

Warranty

One year limited warranty with lifetime support
