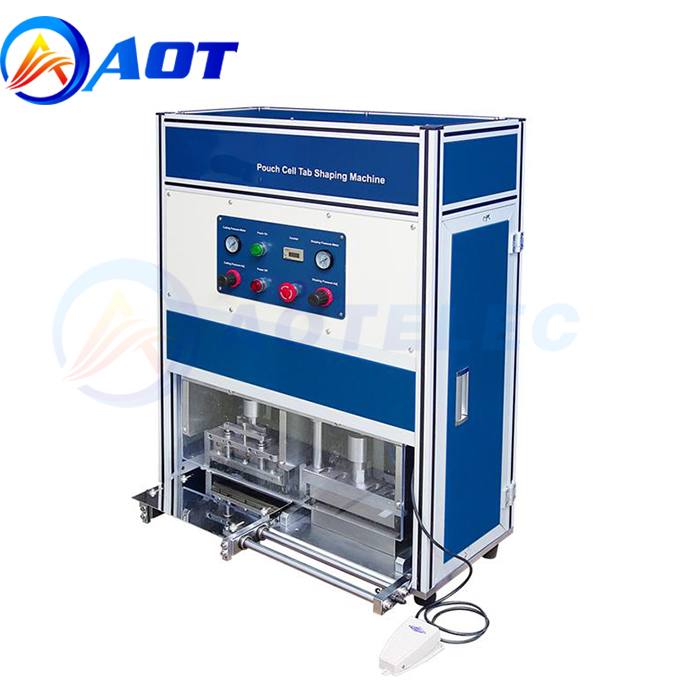

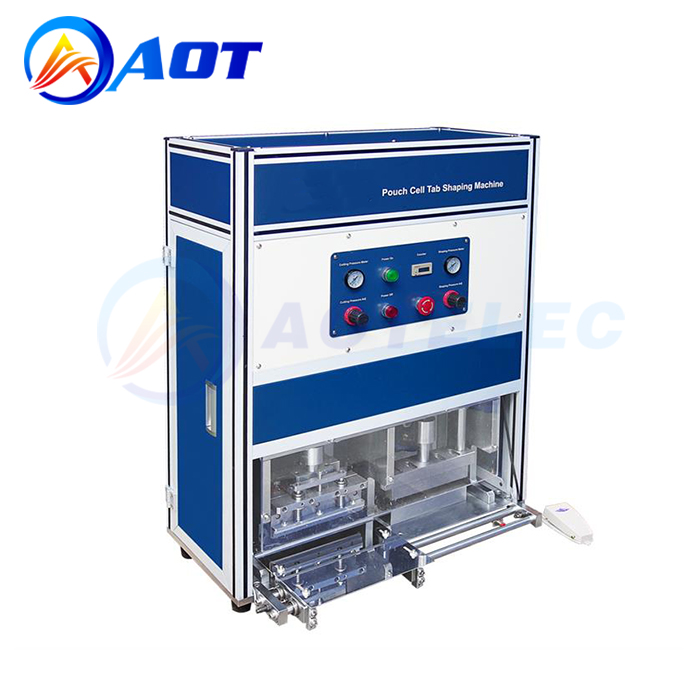

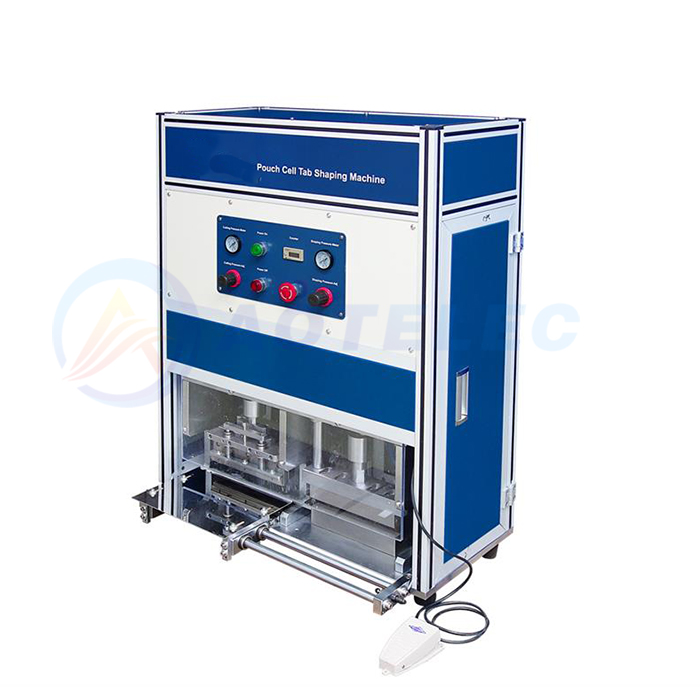

Pouch Cell Tab Shaping Machine

Product Name :Pouch Cell Tab Shaping Machine
Power supply:220VAC, 50/60Hz,Single-phase
Power :100w
Origin:China
Product description: AOT-MSK-121 Pouch Cell Tape Shaping Machine is used for slitting and Ironing the current collector metal tab before the welding.
INQUIRY

AOT-MSK-121 Pouch Cell Tape Shaping Machine is used for slitting and Ironing the current collector metal tab before the welding.One of the commonly used pouch cell battery machine.

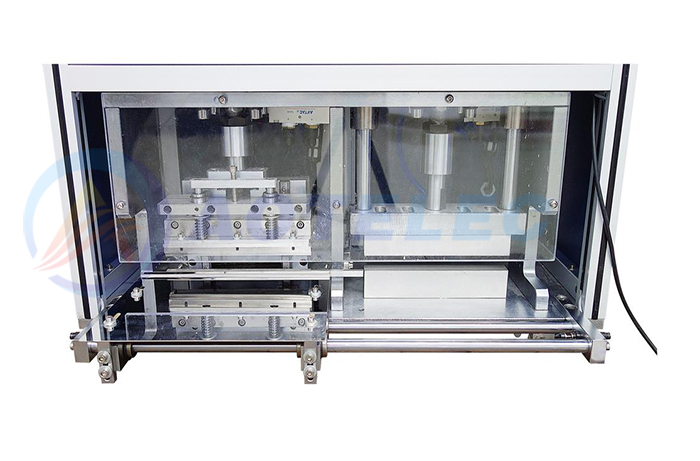

The effective length of the cutter is 100mm, the length of the pressing block is 106mm, the maximum cutting and flattening pressure is 1000N, and the maximum is applicable to L380 * 210 (tab edge) mm cell. The standard configuration is 064660 cell clamp

Product name	Pouch Cell Tab Shaping Machine
Voltage	AC 110V or 220V +/-10%, 50/60Hz
Power	100w
Air source	0.5-0.8MPa
Maximum pouch cell width	200 mm
Maximum pouch cell tape width	100 mm
Slitting Blade Width	200 mm
Slitting Blade Maximum pressure	1,000 kgf
Ironing or Flatten	Maximum pressure: 1,000 kgf
Product Dimensions	L740mmW500mmH710mm
Weight	138kg
