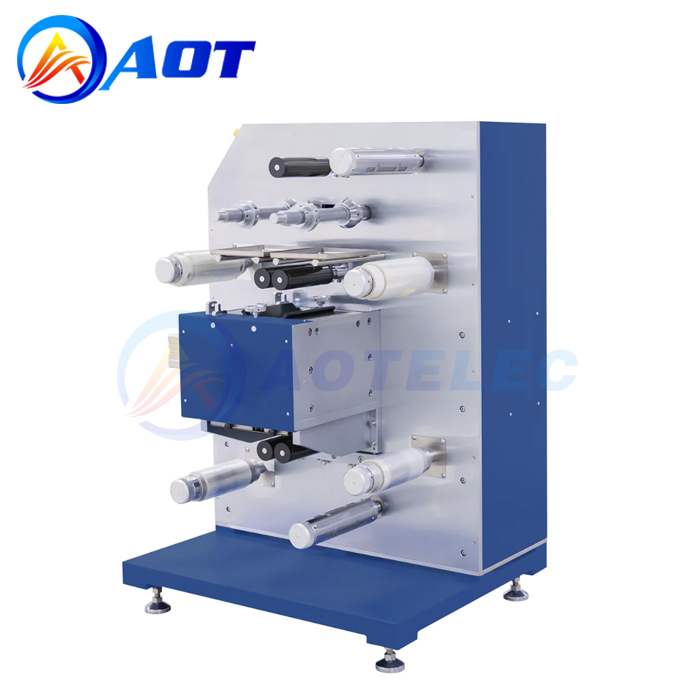

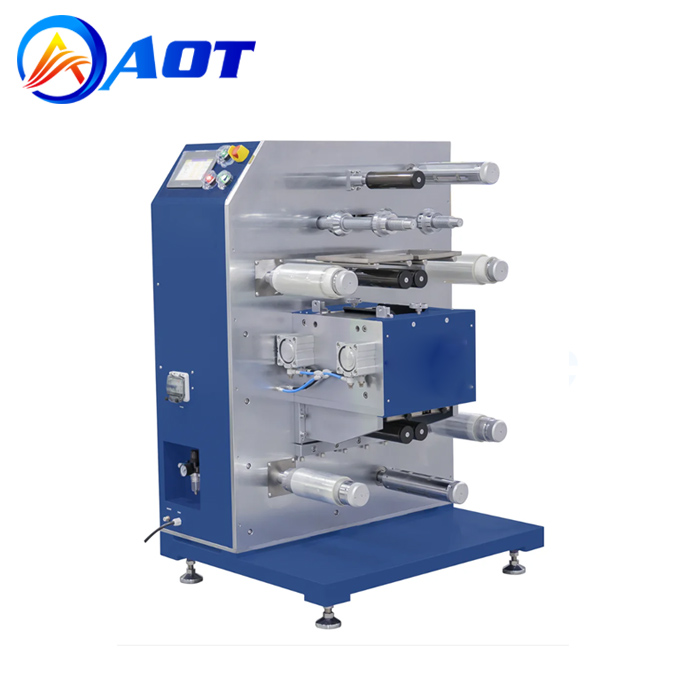

Roll-to-Roll Hot Laminator for Tri-Layer Composite

  • Product Name:Roll-to-Roll Hot Laminator
  • Model:AOT-MSK-BSL-H200
  • Brand Name. AOT
  • Product Orgin:China

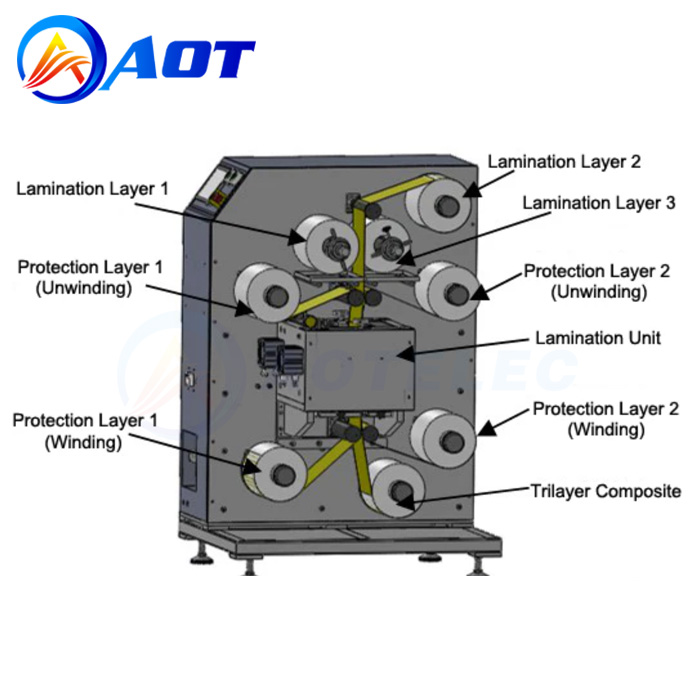

  • Product description: MSK-BSL-H200 is a roll-to-roll hot laminator for forming trilayer composite. The protection layers can be used to protect the lamination layers during rolling press and then being removed after press.
  • INQUIRY

AOT-MSK-BSL-H200 is a roll-to-roll hot laminator for forming trilayer composite. The protection layers can be used to protect the lamination layers during rolling press and then being removed after press.


Power

ACAC220V±10%, 50/60Hz, single phase, 3.75 kW



Rollers

One stainless-steel roller, Ф120mm

One rubber roller, Ф120mm



Laminating Width

The roller width is 200 mm

The maximum width for lamination layers is 180 mm



Laminating Speed

Max. 1m/min



Lamination Pressure

Max. 0.6 T



Lamination Gap

Max. 2 mm (gauge resolution is 1 um)



Lamination Temperature

Max. 120℃ (adjustable)



Winding Roller Diameter

Max. Ф200mm

Carboard diameter is 3" for loading on winding/unwinding roller



Machine Size

L1000 x W860 x H1500mm



Weight

~600 kg


Roll-to-Roll Hot Laminator
