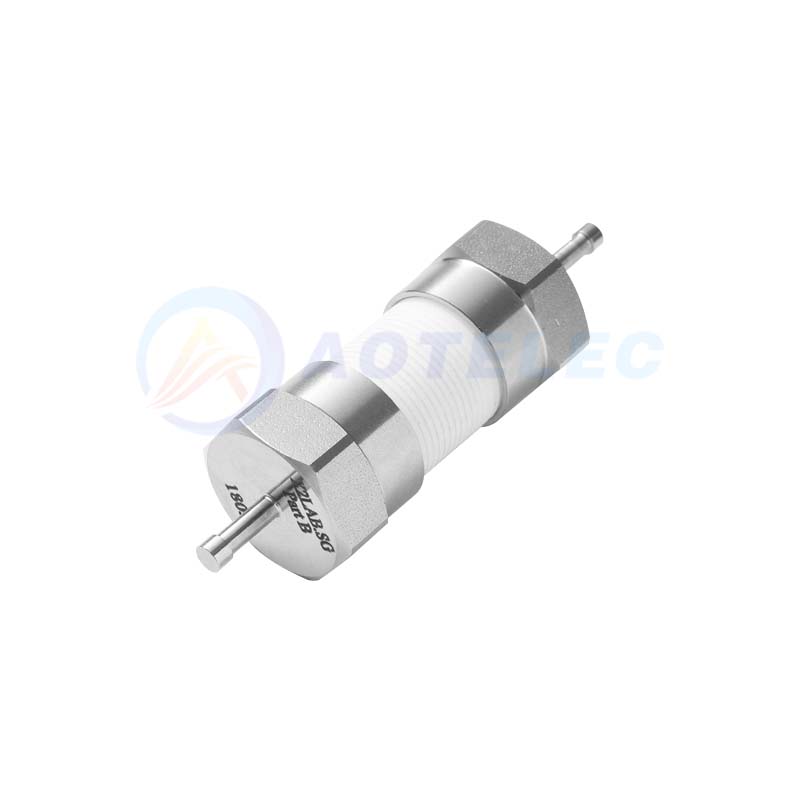

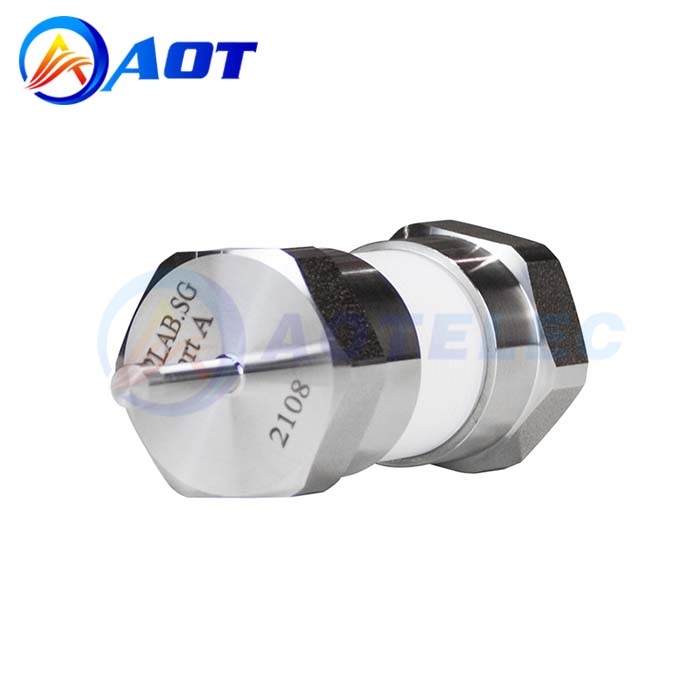

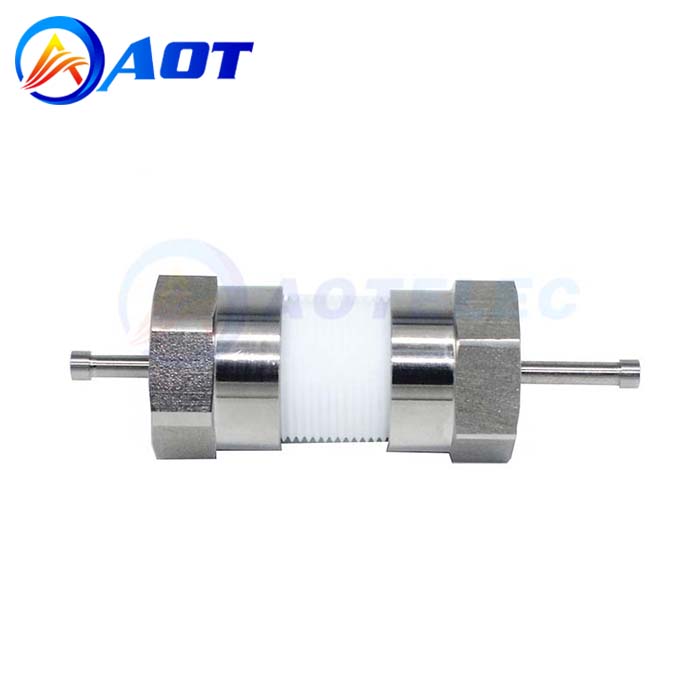

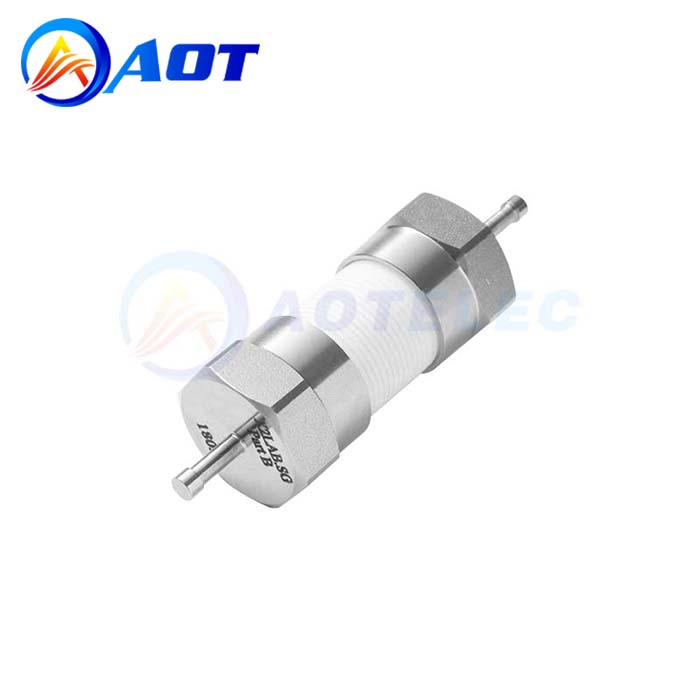

1. The swagelok-type cells are specially designed to facilitate lithium ion battery research.

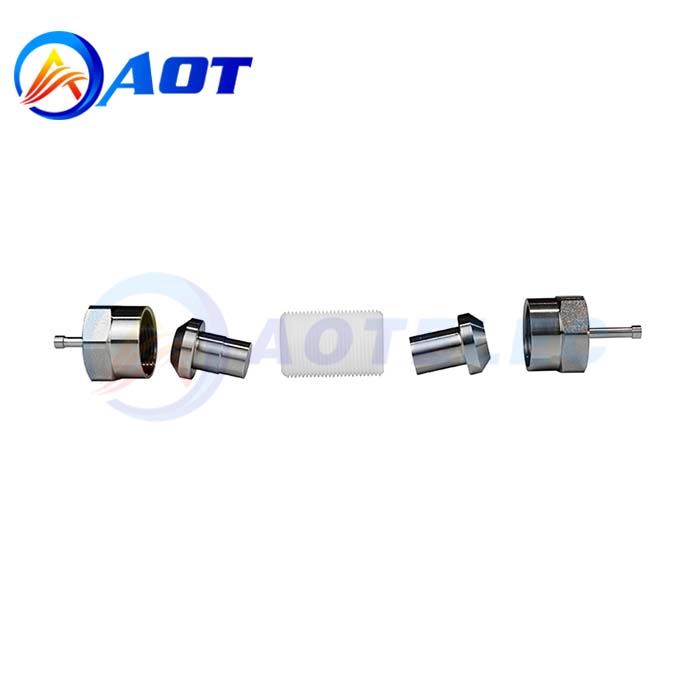

2. The swagelok-type cellsis made of 5 parts. Small size, Simple operation.

3. As a substitute for coin cell cases, the swagelok-type cellscan be well used for coin cell research. Low cost and high quality with 316SS materials.

Dimensions of the parts:

1. Stainless Stell caps(outer diameter: 25.4mm)

2. Teflon body(inner diameter:13mm)

3. Materials: SS316 stainless steel

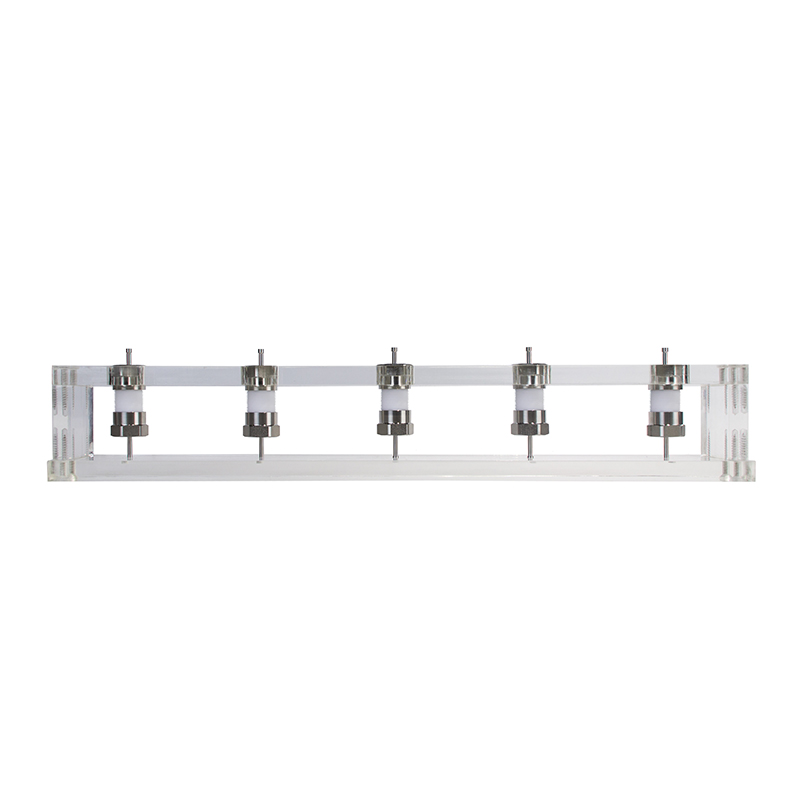

Acrylic Rack for Swagelok-Type cells:

The acrylic rack is designed to work with this swagelok-type cell, making it stand vertically during test.

Two types of racks are available:

1. T5: Holdes5 cells. Dimension: 500 x 70* 90mm

2. T8: Holds 8 cells. Dimension: 800 x 70 * 90mm
