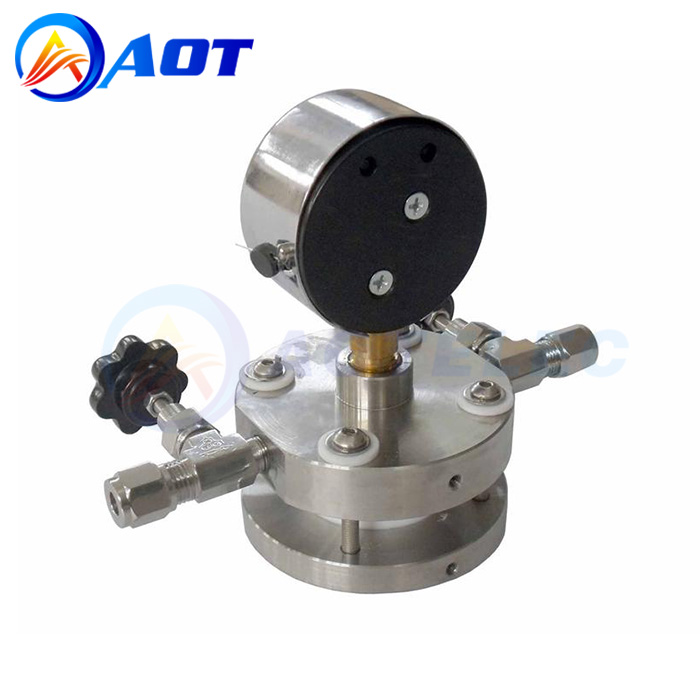

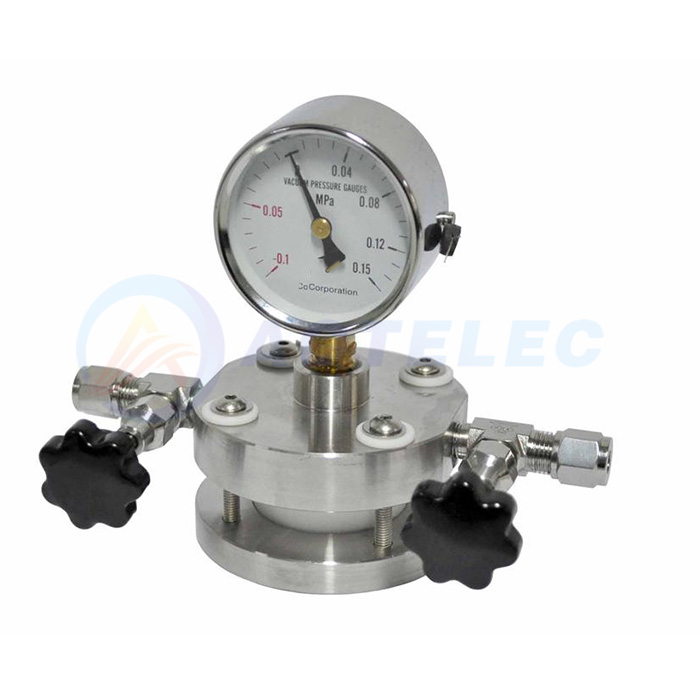

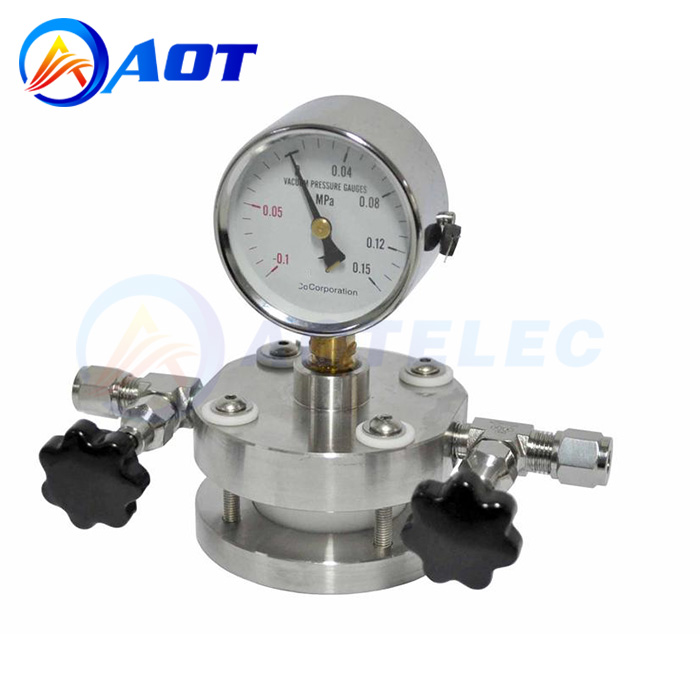

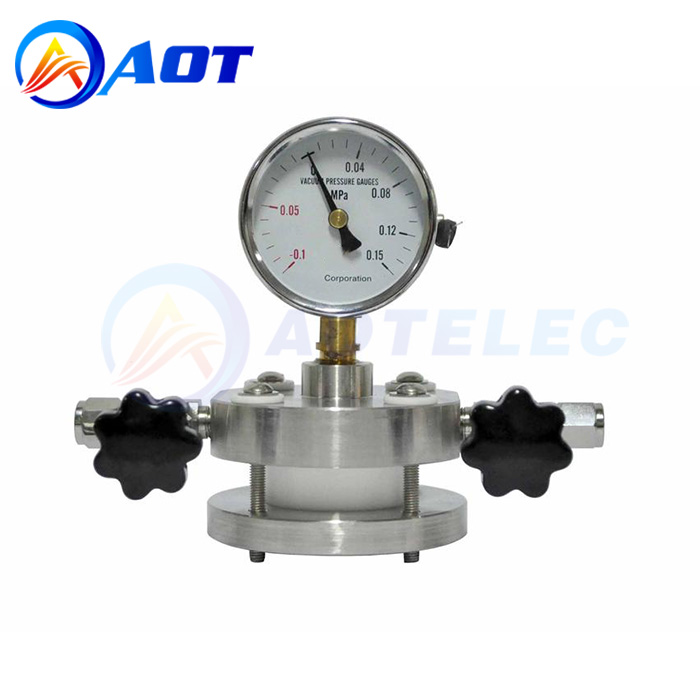

AOT-EQ-STC- is a split test cell for Li-air battery research. For controlling gas flow pressure and testing anode and cathode materials.
Specification
Product Name
Split Test Cell
Cell Thickness
1~3mm (cathode+separator+anode)
Bottom Recess Area
Φ20mm
Working Temperature
Max250°c
Pressure Gauge
Display range from -0.1~0.15Mpa

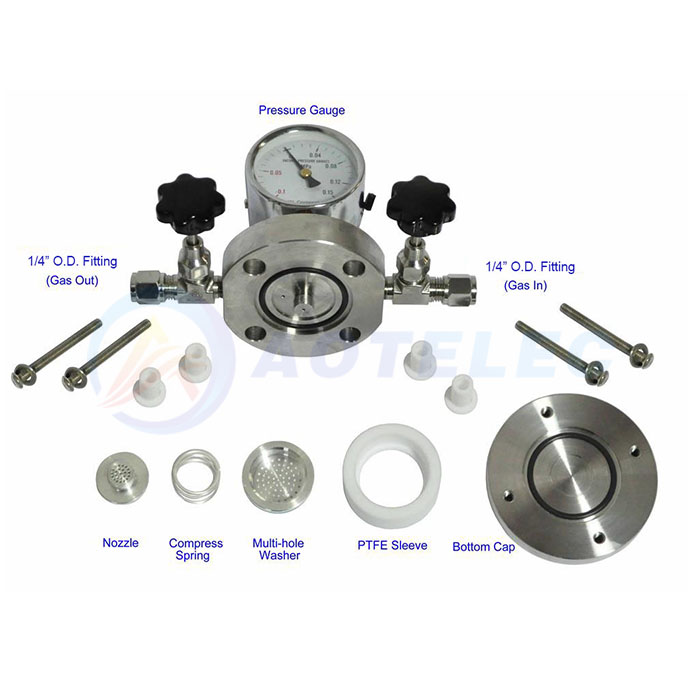

Structure
Two Stainless Steel needle valves with 1/4" O.D Tube Fittings
Two electrodes design
Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings
Material
SS304 steel Structure with internal Silver-Clad surface treatment
Feature
Compact design fits in any benchtop glove boxes
